Installation, Operating and Servicing
Instructions

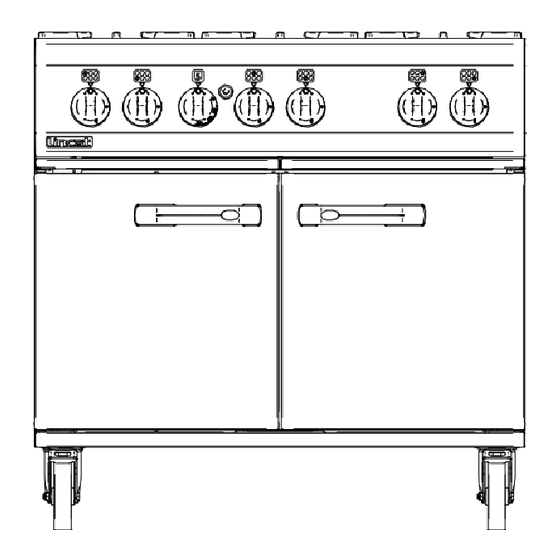

Opus 800 Gas Open Top Oven Ranges
OG8001-A001 & OG8002-A001
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS585 ECN 3858
Page 1 of 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Opus 800 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lincat Opus 800 Series

  • Page 1 Installation, Operating and Servicing Instructions Opus 800 Gas Open Top Oven Ranges OG8001-A001 & OG8002-A001 Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS585 ECN 3858 Page 1 of 20...
  • Page 2: Table Of Contents

    WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips.
  • Page 3: Warnings And Precautions

    WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned, serviced and converted by a qualified person in accordance with national and local regulations in force in the country of installation. Strip plastic coating and clean the appliance before use. During operation parts may become hot - avoid accidental contact. Parts protected by the manufacturer shall not be adjusted by the user.
  • Page 4: Technical Data

    TECHNICAL DATA Model OG8001 OG8002 Dimensions Height (mm) Width (mm) Depth (mm) Weight (kg) Hob Cooking Surface w x d (mm) 600 x 600 900 x 600 Useable Oven Capacity w x d x h (mm) 500 x 540 x 400 715 x 540 x 400 Oven Shelf w x d (mm) 500 x 540...
  • Page 5: Installation And Commissioning

    INSTALLATION AND COMMISSIONING Site this appliance beneath an extraction canopy for the removal of combustion products. When making the gas connection, fit an isolating cock into the supply line close to the appliance for emergency shutdown or servicing purposes. Installation must include sufficient ventilation to prevent the occurrence of unacceptable concentrations of substances harmful to health in the room of installation.
  • Page 6 ACCESS The overall depth of the appliance (including door handles) is 832mm. This can be reduced further to an overall depth of 760mm by the following steps. If this is still not sufficient the hob & oven can be separated (see step 4). Step 1 - Removal of Flue (Overall depth 802mm) ...
  • Page 7 Step 3 - Removal of Fascia (Overall depth 760mm)  Remove pan supports AA and control knobs CC.  Remove drip trays DD.  Undo the two fascia fixing screws EE.  Remove the fascia panel BB. Care should be taken when removing the fascia panel as the oven ignitor & earth lead will be attached to the ignitor.
  • Page 8 SITING The installer must ensure that all regulations are met and that there is an unobstructed minimum distance of 1000mm from the top of the flue to the ceiling, which must be of non-combustible material. The appliance should be installed on a level surface ensuring the unit is stable and firmly located.
  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS Only qualified or trained personnel should use this appliance. Ensure that the person responsible understands how to light, safely operate, clean and shut down the appliance and is made aware of the position and operation of the gas isolating cock in the event of an emergency. All users should know how to clean burner caps and to correctly locate the burner cap on the burner body.
  • Page 10: Cleaning

    Your Lincat product has a manufacturer’s warranty. This requires you to maintain and care for your product and follow maintenance instructions. If you fail to maintain your unit or damage components Lincat may charge you for a warranty repair. Please check the website for terms and conditions.
  • Page 11 Pan Support Channel – Remove from the appliance taking note of its fixing points. Hob Burner Components Part Description Pan Support Channel Fig. 10 The Pan Support Channel can be cleaned with a mild detergent and hot water solution using a soft bristled brush. Rinse and dry thoroughly with a dry cloth. Cover –...
  • Page 12 Oven Components. Oven Shelves & Side Hangers – Open the oven doors and remove the shelves and hangers. To remove shelves, tilt up the rear and slide shelf forward. To remove side hanger, lift hanger up and then pull into centre of oven. Fig.
  • Page 13: Servicing, Maintenance And Component Replacement

    SERVICING, MAINTENANCE AND COMPONENT REPLACEMENT All servicing, maintenance and component replacement on this appliance should be carried out by one of our recommended service engineers. SERVICE ACCESS To access and service the gas control valves Remove the control knobs CC and facia panel BB (see page 7) to gain access to the valves.
  • Page 14 Control Valve Remove the control knobs CC, covers, pan supports AA, burner caps NN and fascia panel BB. Remove the nut from the gas output at the valve. Remove the thermocouple nut from the valve. Remove clamp screws K from the valve. Free the valve from the manifold G.
  • Page 15 Hob Valve Bypass Injectors Remove the bypass injectors J from each of the hob burner control valves H. Replace the bypass injectors applicable to the required gas type. Screw fully home but do not over tighten. Hob Tap Components Part Description Manifold Gas tap...
  • Page 16: Conversion

    CONVERSION This appliance cannot be converted by the user. For conversion kit and instructions contact Lincat Ltd whose contact details may be found in the service section of this manual. This conversion must be carried out by a Certified Gas Safe engineer.
  • Page 17: Fault Finding

    FAULT FINDING Please refer to the Service Help Desk number on the final page of this manual.  Piezo oven ignitor not sparking. Check for a short in the high tension lead Replace lead Check electrode for fracture Replace electrode Replace piezo ignitor ...
  • Page 18: Spare Parts List

    SPARE PARTS LIST Part number Part description OG8001 OG8002 BU55 Door bushes BU72 Door bushes BU86 Oven burner BU78 Oven burner BU103 Burner cap BU104 Burner body BU106 Injector housing BU107 Elbow BU108 Venturi CO113 Copper Washer CA143 125mm braked swivel castors CA145 125mm un-braked swivel castors CO113...
  • Page 19: Accessories

    ACCESSORIES Part Number Description Used on IS585 ECN 3858 Page 19 of 20...
  • Page 20: Service Information And Guarantee

    Type number  Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
