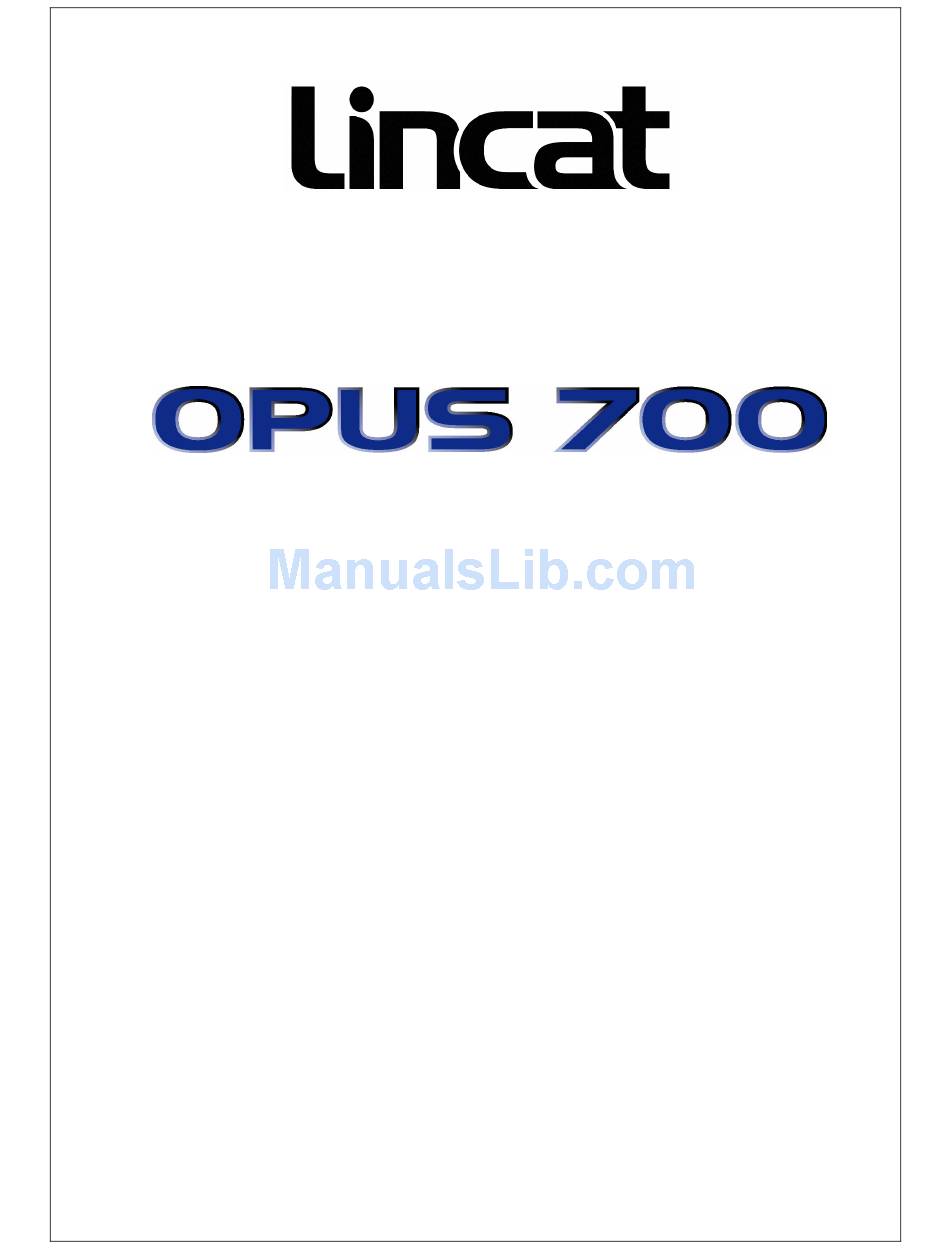

OE7008 & OE7010
Electric Oven Ranges
USER, INSTALLATION AND SERVICING
INSTRUCTIONS
For use in GB & IE
IS397 ECN3393
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the OE7010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lincat OE7010

  • Page 1 OE7008 & OE7010 Electric Oven Ranges USER, INSTALLATION AND SERVICING INSTRUCTIONS For use in GB & IE IS397 ECN3393...
  • Page 2: Important Information

    Details are available from your local distributor or direct from us. Used for the purposes for which it is intended, and with careful maintenance as outlined in this User Guide, your Lincat product will give you years of trouble free service. IMPORTANT INFORMATION Please read all of the safety and operating instructions carefully before using this product.
  • Page 3: Table Of Contents

    CONTENTS Contents Page Customer Information………………………………………………………. Warnings and Precautions………………………………………………… Technical Data……………………………………………………………….. Commissioning………………………………………………………………. Check List of Enclosures…………………………………………………... Installation…………………………………………………….……………… User…………………………………………………………………………….. 8 - 10 Component Replacement ………………………………………….……… 10 - 12 Spare Parts List……………………………………………………………… Wiring Diagrams………………………………………………………………. 13 - 14 Service information………………………………………………………….. Guarantee………………………………………………………….………….. IS397 ECN3393...
  • Page 4: Warnings And Precautions

    WARNINGS AND PRECAUTIONS It is mandatory that all appliances are installed, commissioned and serviced by a qualified and competent person as defined by the regulations in force in the country of installation. Failure to comply will invalidate the warranty. WARNING! This appliance must be installed by a competent installation engineer in accordance with the installation instructions, and should conform to the following requirements: •...
  • Page 5: Technical Data

    TECHNICAL DATA OE7008 OE7010 Model Dimensions Overall Height (mm) Width (mm) Depth (mm) Weight (kg) Hob Cooking Surface w x d (mm) 900 x 600 600 x 600 Usable Oven Capacity w x d x h (mm) 715 x 540 x 400...
  • Page 6: Check List Of Enclosures

    Warranty Card User Instructions SERIAL NUMBER Each appliance manufactured at Lincat has a unique identifying number found in the top NOTE right hand corner of the data plate attached at the rear of the appliance. Please record that number in the space provided should it be required for future reference.
  • Page 7 INSTALLATION SITING The appliance must be installed in accordance with the appropriate regulations listed prior. The appliance should be installed on a level surface ensuring the unit is stable, firmly located and positioned to minimise the possibility of accidental touching. A clear space of at least 100mm must be left to the rear of the appliance to allow for servicing with a clear space of 600mm to the front to allow for safe operation.
  • Page 8 USER INSTRUCTION APPLIANCE USE This appliance is only for professional use and should only be used by qualified personnel. Ensure that the person responsible understands how to safely operate, clean and shut down the appliance and is made aware of the position and operation of the isolating switch in the event of an emergency.
  • Page 9 • Lift off each of the side liners from the unit. • External surfaces can be cleaned using a cloth moistened with a warm detergent solution. • For heavy, stubborn deposits a de-greasing agent ‘CARBON-OFF’ is available from Lincat upon request.
  • Page 10: Component Replacement

    External Cleaning Do not use abrasives on stainless steel or enamelled parts. Do not use any products containing chlorine or hydrochloric acid to clean stainless steel surfaces. Do not clean the appliance using a water jet. COMPONENT REPLACEMENT Hotplate Switch 1.
  • Page 11 5. Replacement is a reversal of the removal sequence. Be careful not to trap the wiring harness whilst replacing fascia. Hotplate 1. Remove the control knobs and fascia panel, by firstly removing fixing screws. 2. Protect the surrounding area panel work with soft material and support the fascia panel against it.
  • Page 12: Spare Parts List

    All models CO214 Contactor All models DO73 Door Catch Assembly All models EL188 Hotplate Element All models EL149 Element – 4kW OE7010 EL248 Element – 3kW OE7008 FA12 LHS Fan/Motor Assembly OE7008 FA102 RHS Fan/Motor Assembly All models GL77 Cable Restraint...
  • Page 13 OE7010 Range Wiring (E357) LEFT HAND SIDE FACIA TO CHASSIS BONDING RIGHT HAND SIDE SW14 SW14 NE39 (IDENTICAL TO SW58 LEFT HAND SIDE) NE40 TH46 REAR FRONT 2 3 1 4 TH63 EL188 L1 - OVEN FRONT L2 - LHS HOBS...
  • Page 14 NE39 Connect to GREEN inner SW58 NEON bulkhead SWITCH heat deflector Connect screw to fascia NE40 AMBER EL248 EL248 NEON ELEMENT ELEMENT TH46 OVEN THERMOSTAT FA12 FAN FA12 FAN TH63 SAFETY THERMOSTAT TE47 CO214 TERMINAL BLOCK TE55 CONTACTOR EARTH TAG OE7008 Hob Wiring (E329) TO CENTRE FRONT &...
  • Page 15: Service Information

    Catering equipment should be routinely serviced to ensure a long trouble free life. It is recommended that this appliance is serviced every 6 months by a competent gas engineer. For help regarding the installation, maintenance and use of your LINCAT equipment, please call:- LINCAT GROUP SERVICE HELP DESK...
  • Page 16 We recommend that all servicing other than our authorised service agents carry out routine cleaning. We cannot accept responsibility for work carried out by other persons. Please quote both the model and serial numbers from the data plate attached to the unit. Give brief details of the service requirement.
