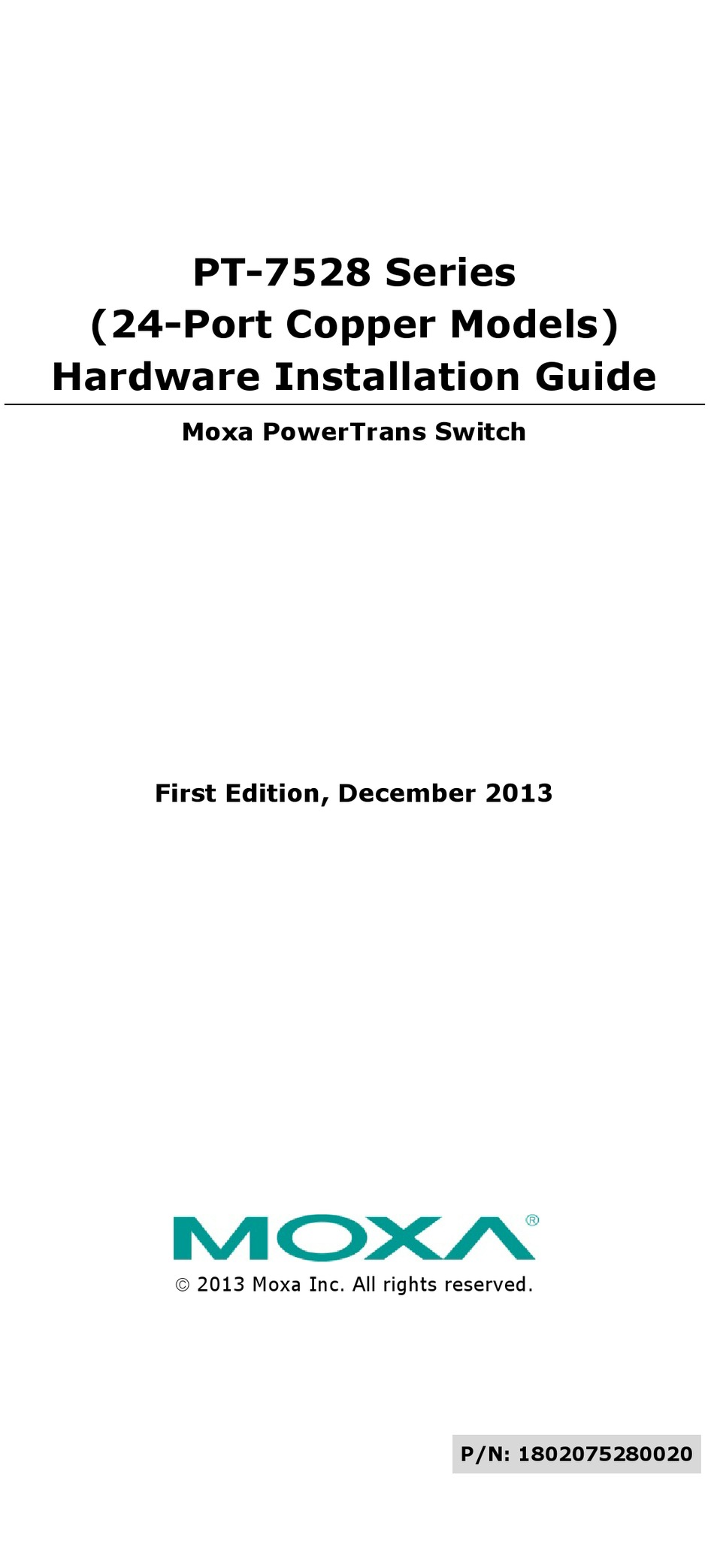

Page 1: Hardware Installation Guide
PT-7528 Series (24-Port Copper Models) Hardware Installation Guide Moxa PowerTrans Switch First Edition, December 2013 2013 Moxa Inc. All rights reserved. P/N: 1802075280020... -
Page 2: Package Checklist
Package Checklist The Moxa PowerTrans switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 Moxa PowerTrans switch • USB cable (Type A male to Type B male) •... - Page 3 Dimensions; unit = mm (in) Fiber Ethernet Interface Modules - 3 -...
-
Page 4: Rack Mounting
Rack Mounting Use six screws to attach the PT switch to a standard rack. Rack Mounting Kit PT-7528 Side View NOTE Two additional rack-mount ears can be ordered as an option. Use them to secure the rear of the chassis in high-vibration environments. -
Page 5: Wiring The Relay Contact
Wiring the Relay Contact Each PT-7528 switch provides two types of relay output, at the user’s option. Refer below for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor. -
Page 6: Usb Console Connection
Gigabit Ethernet 1000BaseTX Cabling The IEEE 802.3ab Gigabit Ethernet standard defines 1000 Mbps Ethernet communications over distances of up to 100 meters using all 4 pairs in category 5 (or higher) balanced unshielded twisted-pair cabling. For wiring guidelines, system designers and integrators should refer to the Telecommunications Industry Association (TIA) TIA/EIA-568-A wiring standard that characterizes minimum cabling performance specifications required for proper Gigabit Ethernet operation. -
Page 7: The Reset Button
ABC-02-USB Installation Plug the ABC-02-USB into the USB storage port of the Moxa PT-7528 series. We suggest attaching the ABC-02-USB to a wall with an M4 screw. USB Storage Port (Type A Connector) Pinouts Description VCC (+5 V) D- (Data-) D+ (Data+) GND (Ground) The Reset Button... - Page 8 FAULT RED One of the following situations exists: • The signal contact is open. • ABC Loading/Saving Failure. • The port has been disabled because the ingress multicast and broadcast packets exceed the ingress rate limit. • Incorrect loop connection in a single switch.
-
Page 9: Specifications
FAULT + Rotate ABC-02-USB is importing/exporting MSTR/HEAD Blinking files. + CPLR/TAIL Sequentially STATE + Blinking 2 blinks per sec: The switch is being FAULT + discovered/located by MXview. MSTR/HEAD + CPLR/TAIL Ports GREEN Port’s 100 Mbps link is active 1 to 24 Blinking Data is transmitting at 100 Mbps Port’s link is inactive... -
Page 10: Rack Mounting Instructions
Alarm Contact One relay output with current carrying capacity of 3 A @ 30 VDC or 3 A @ 240 VAC Optical Fiber (100BaseFX) Distance Multi-mode: 0 to 5 km, 1300 nm (50/125μm, 800 MHz*km) 0 to 4 km, 1300 nm (62.5/125μm, 500 MHz*km) Single-mode: 0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km)) Min. -
Page 11: Restricted Access Locations
3. Mechanical Loading: Mounting of the equipment on the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading. 4. Circuit Overloading: Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring.
