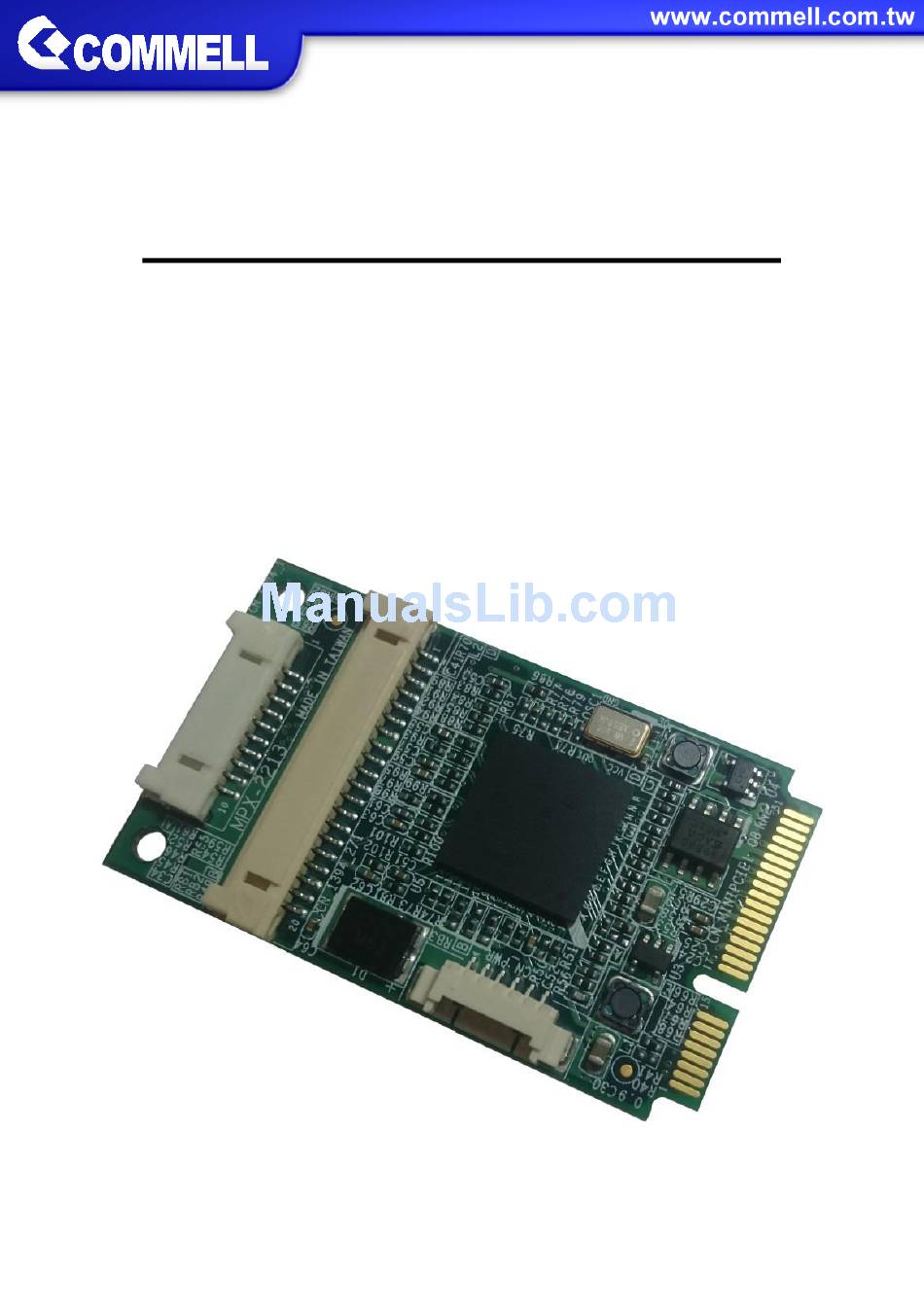

- Page 1 MPX-2213 Support IEEE 1394a & 1394b Mini Card User’s Manual Edition 1.0 2017/04/07...
-
Page 2: Packing List
MPX-2213 User’s Manual Packing List: Please check the package content before you starting using the card. 1 x 1394a Cable (OAL1394-DF1410 / 1040615) 1 x IO Module (ADP-1394) 1 x 1394b Cable (OAL1394-DF1420 / 1040616) 1 x 4PIN HSG to 6PIN for Power... -
Page 3: Table Of Contents
MPX-2213 User’s Manual Index 1 <Product Overview>.................. 2 2 <Features> ....................3 3 <Block Diagram> ..................4 4 <Product Specifications> ................. 5 4.1 < Recommended Operating Conditions > ........... 6 4.2 < Power Consumption > ................6 5 <Pin-out Definition> .................. 7 6 <Component Placement>... -
Page 4:
MPX-2213 User’s Manual 1 <Product Overview> The 1394b OHCI controller function is fully compatible with IEEE Std MPX-2213 1394b and the latest 1394 Open Host Controller Interface (OHCI) Specification. capable of transferring data between the PCIe bus and the 1394 bus at MPX-2213 100M bit/s, 200M bit/s, 400M bit/s, and 800M bit/s. -
Page 5:
MPX-2213 User’s Manual 2 <Features> Fully Compliant With PCI Express Base Specification, Revision 1.1 Supports Provisions of IEEE Std P1394b- 2002 and IEEE Std 1394-1995 for IEEE Std 1394a-2000 Fully Compliant With 1394 Open Host States Controller Interface ... -
Page 6:
MPX-2213 User’s Manual 3 <Block Diagram> Mini Card Additional 12V Power Supply Connector PCIE 3.3V Power Supply XIO2213B 1 x 1394a 2 x 1394b... -
Page 7:
MPX-2213 User’s Manual 4 <Product Specifications> Product Description Host Interface PCI-E Controller XIO2213B Dimension 30.00mm x 50.95mm Weight Operating Conditions Power Requirement +3.3V from Mini PCIe +12V from external cable Temperature 0~70°C Storage -40~+85°C Temperature General Specifications From factor Mini-PCI Express with 52-pin interface... -
Page 8: Recommended Operating Conditions
MPX-2213 User’s Manual 4.1 < Recommended Operating Conditions > Symbol Parameter Rating Unit Vdd33 I/O voltage 3.135~3.465 4.2 < Power Consumption > Transmitting data MAX Power ( W ) -
Page 9:
MPX-2213 User’s Manual 5 <Pin-out Definition> Pin No. Definition Basic Description Type Floating Pin, No connect to anything. 3.3V/3.3VAUX 3.3V/3.3AUX power supply Floating Pin, No connect to anything. Ground. Floating Pin, No connect to anything. 1.5V 1.5V CLKREQ Reference clock request Floating Pin, No connect to anything. - Page 10 MPX-2213 User’s Manual Ground. Ground. Floating Pin, No connect to anything. Ground. Floating Pin, No connect to anything. 3.3VAUX 3.3AUX power supply. Ground. 3.3VAUX 3.3AUX power supply. Floating Pin, No connect to anything. Ground. Floating Pin, No connect to anything.
-
Page 11:
MPX-2213 User’s Manual 6 <Component Placement> 6.1 < Connector Reference > MPX-2213: CN_1394_2/3 CN_1394_1 CN_PWR Connector: CN_PWR Connector Type: 1252 6-Pin , pitch : 1.25 mm Description(LAN1) Description(LAN2) +12V +12V Connector: CN_1394_1 Connector Type: DF14 10-Pin , pitch : 1.25 mm... - Page 12 MPX-2213 User’s Manual Connector: CN_1394_2/3 Connector Type: DF14 20-Pin , pitch : 1.25 mm Description(LAN1) Description(LAN2) TPB1- TPB1+ TPA1- TPA1+ PWR(+12V) TPB2- TPB2+ TPA2- TPA2+ PWR(+12V) CN_1394_1X CN_1394_2/3X Connector: CN_1394_1X Connector Type: DF14 10-Pin , pitch : 1.25 mm Description(LAN1)
-
Page 13: Cable Connection
MPX-2213 User’s Manual Connector: CN_1394_2/3X Connector Type: DF14 20-Pin , pitch : 1.25 mm Description(LAN1) Description(LAN2) TPB1- TPB1+ TPA1- TPA1+ PWR(+12V) TPB2- TPB2+ TPA2- TPA2+ PWR(+12V) 6.2 < Cable connection > -12-... - Page 14 MPX-2213 User’s Manual -13-...
-
Page 15: Device Manager Shows
MPX-2213 User’s Manual 6.3 < Device Manager shows > -14-... -
Page 16:
MPX-2213 User’s Manual 7 <Mechanical Drawing> MPX-2213: (Units: mm /inch) 1394a & 1394b: (Units: mm /inch) -15-... -
Page 17: Contact Information
MPX-2213 User’s Manual Contact information Any advice or comment about our products and service, or anything we can help you please don’t hesitate to contact with us. We will do our best to support you for your products, projects and business.
