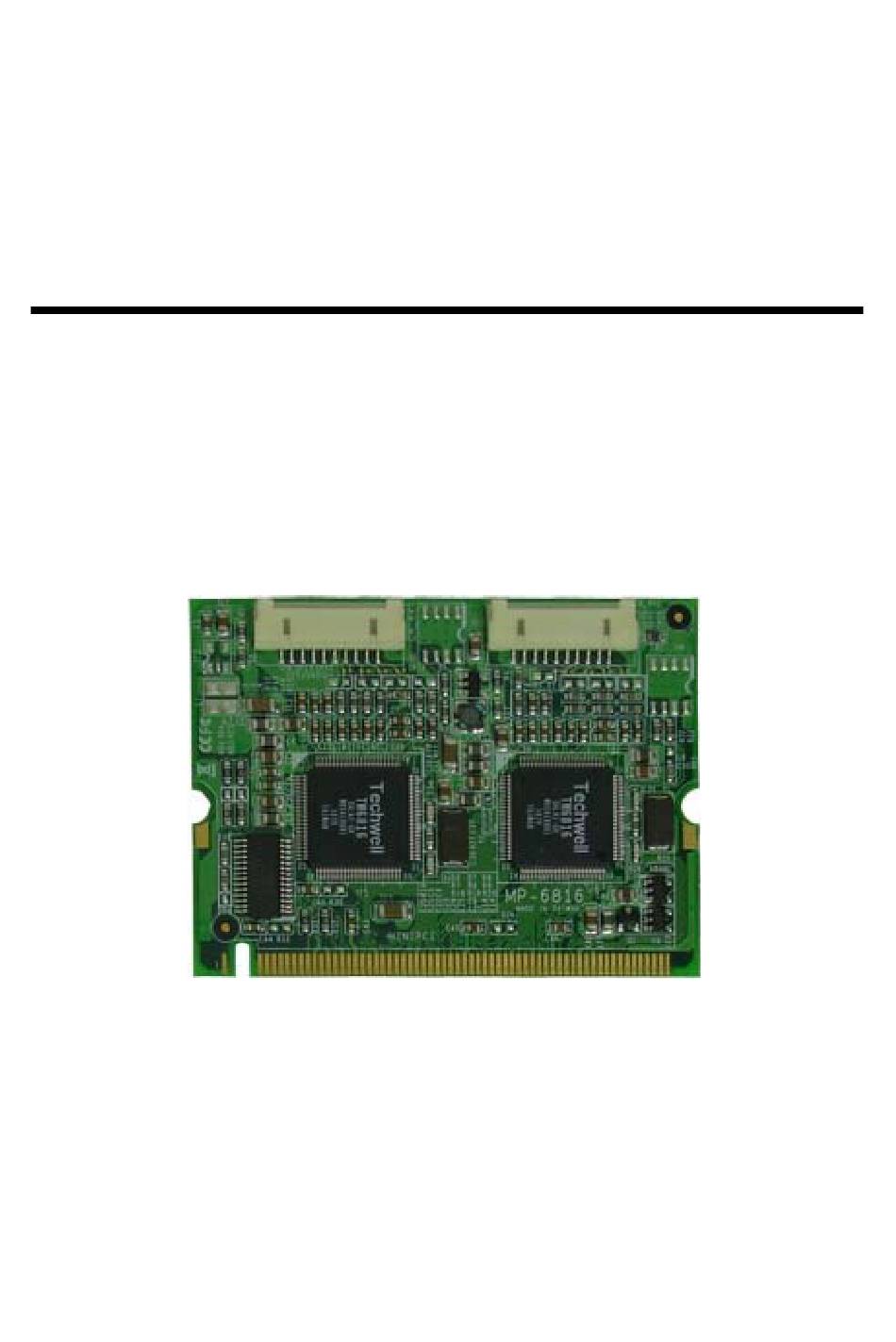

- Page 1 MP-6816 User’s Manual Edition 1.01 2025/01/09...
- Page 2 MP-6816 User’s Manual Copyright Copyright 2011 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
MP-6816 User’s Manual Packing List: Hardware: MP-6816 Mini PCI Capture Card x1 Cable kit: Cable: 1 x 10-pin DF14 to D-sub 9 Cable(MP-6816D4) 2 x 10-pin DF14 to D-sub 9 Cable(MP-6816D8) OALES-BKU1-H14 1 x 4-ch BNC Video input &4-ch RCA Audio input Cable (MP-6816D4) 2 x 4-ch BNC Video input &4-ch RCA Audio input... -
Page 4: General Specification
MP-6816 User’s Manual 1.0 <Product Specification> General Specification Form Factor Mini PCI card Controller TW6816 chip Accessories MP-6816D4: 1 x 10-pin DF14 to 1 x D-sub 9 Cable 1 x 4-ch BNC Video input & 4-ch RCA Audio input Cable... - Page 5 MP-6816 User’s Manual 1.2 <Mechanical Drawing>...
- Page 6 MP-6816 User’s manual 1.3 <Connector Reference> Connector: CN_AV1/2 Type: DF14 10-pin pitch=1.25mm Description Description Video1 Video2 Video3 Video4 Ground Audio1 Audio2 Audio3 Audio4 Ground...
- Page 7 MP-6816 User’s Manual 1.4 <Driver Setting> 1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ … 2. Please select file location C:\TW68xx SDK\drv\x86\Driverinstall 3. Please choose Install...
- Page 8 MP-6816 User’s manual 4. Please click “OK” to complete the installation.
- Page 9 MP-6816 User’s Manual 1.5 <Sample Program> 1. Please select file location C:\TW68xx SDK\bin\vcc9\x86\Tw68xx...
- Page 10 MP-6816 User’s manual 2. Please refer to the usage instructions. C:\TW68xx SDK\doc \TW68XX SDK Demo Program Instructions.doc...
-
Page 11: Contact Information
Taiwan Commate Computer Inc. Address 19F., .94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22102, Taiwan (R.O.C.) +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC.
