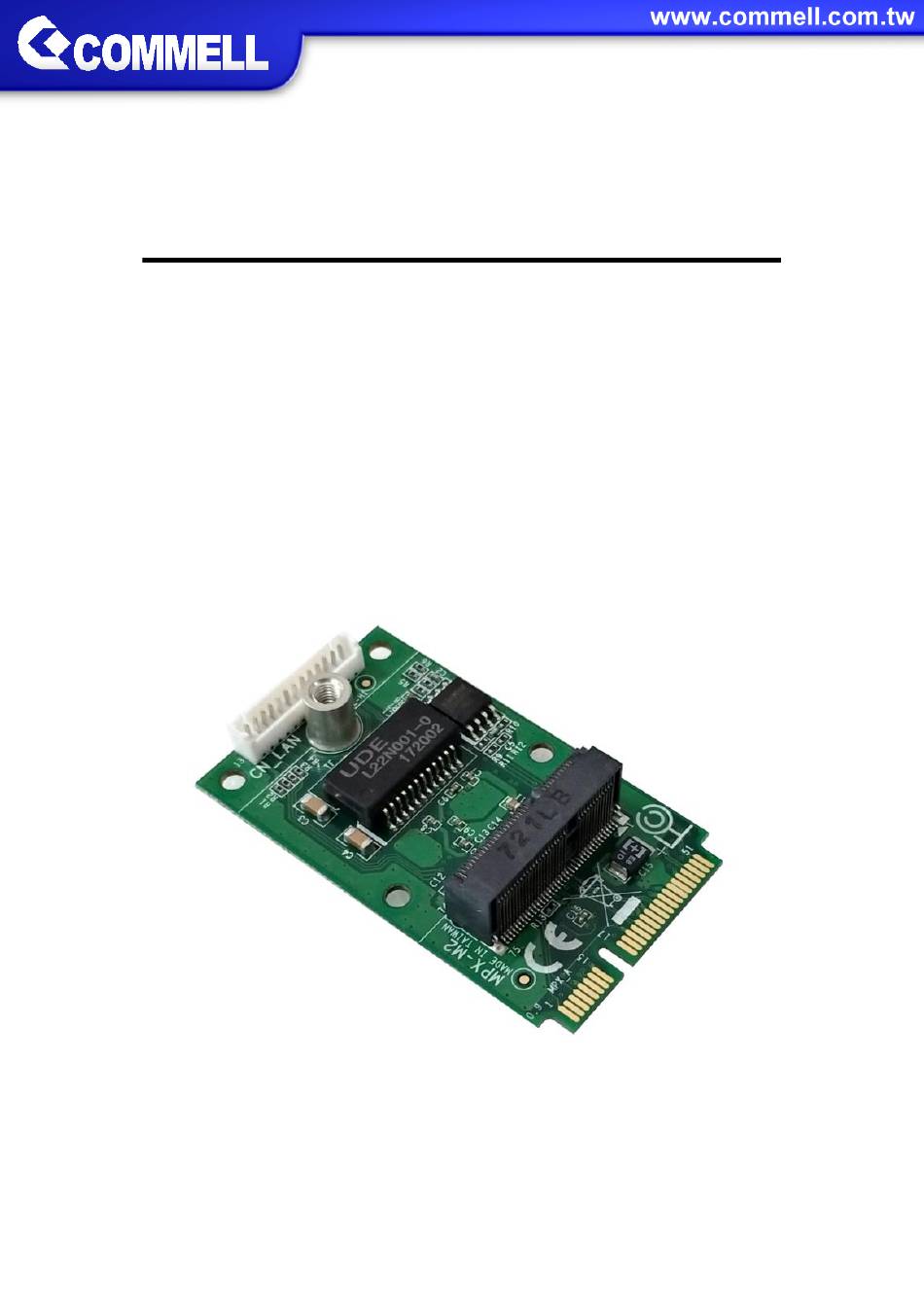

- Page 1 MPX-M2EG M.2(NGFF) to Mini-PCIe adapter with Gigabit Ethernet User’s Manual Edition 1.0 2018/08/06...
- Page 2 MPX-M2EG User’s Manual Packing List: Please check the package content before you starting using the card. 1 x LAN Adapter (BADPGLAND_A / 4120007011) (Include Bracket) 1 x Adapter LAN Cable (OALGLAN-A-20S / 1040650) (L=200mm) 1 x CD Driver (OCDPRI-3.1 / 1250055)
- Page 3 MPX-M2EG User’s Manual Index 1 <Product Overview> ............3 2 <Features> ..............4 3 <Block Diagram> ............5 4 <Product Specifications> ..........6 4.1 < Recommended Operating Conditions > ..... 6 5 <Component Placement> ..........7 5.1 < Connector Reference > ........7 5.2 <...
-
Page 4: Product Overview
MPX-M2EG User’s Manual 1 <Product Overview> MPX-M2EG MPX-M2EG MPX-M2EG MPX-M2EG module adopts Intel® Ethernet Controller I210 Family solution. The module design is based on the Intel® Ethernet Controller I210-AT. -
Page 5: Features
MPX-M2EG User’s Manual 2 <Features> M.2 (NGFF) to Mini-PCIe Support 2230/3030 M.2 Card dimension Support M.2 Key E Card Type PCIe + USB interface Intel® I210-AT Giga LAN... -
Page 6: Block Diagram
MPX-M2EG User’s Manual 3 <Block Diagram> Mini Card Connector PCIE 3.3V Power Supply M2 E key I210-AT Transformer... -
Page 7: Product Specifications
MPX-M2EG User’s Manual 4 <Product Specifications> Product Description Host Interface PCIe + USB Controller Intel® Ethernet Controller I210-AT Dimension 30.00mm x 50.95mm x 9.6mm (L x W x H) Operating Conditions Voltage 3.3V +/-5% Temperature 0~60°C Storage -40~+85°C Temperature General Specifications M.2 Size... -
Page 8: Component Placement
MPX-M2EG User’s Manual 5 <Component Placement> 5.1 < Connector Reference > MPX-M2EG: CN_LAN1 m2.5 x 3 screw Connector: CN_LAN1 Connector Type: 13-pin (13 x 1), pitch: 1.25 mm, DIP type Straight P.C.B Connector Description(LAN1) Description(LAN2) RTD00+ RTD10+ RTD00- RTD10- RTD01+... - Page 9 MPX-M2EG User’s Manual LAN Adapter: CN_LAN1X RJ45_1 (Include Bracket) CN_LAN1X Connector Type: 16-pin (8 x 2) 2.0 x 2.0 mm Straight Type Header Description Description RTD0+ RTD1+ RTD0- RTD1- RTD2+ RTD3+ RTD2- RTD3- LINK1 Link100 ACTLED1 Link1000 Adapter LAN Connector: RJ45_1...
-
Page 10: Cable Connection
MPX-M2EG User’s Manual 5.2 < Cable connection >... -
Page 11: Mechanical Drawing
MPX-M2EG User’s Manual 6 <Mechanical Drawing> MPX-M2EG: (Units: mm) -10-... - Page 12 MPX-M2EG User’s Manual LAN Adapter: (Units: inch) -11-...
- Page 13 MPX-M2EG User’s Manual Mechanical height: (Units: mm) Bracket: (Units: mm) -12-...
-
Page 14: Contact Information
MPX-M2EG User’s Manual Contact information Any advice or comment about our products and service, or anything we can help you please don’t hesitate to contact with us. We will do our best to support you for your products, projects and business.
