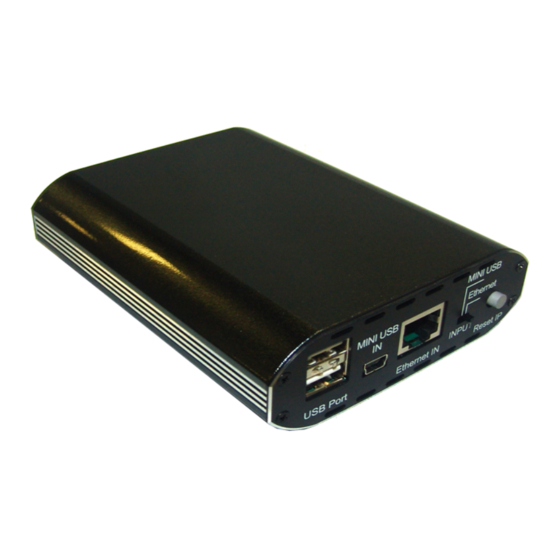

- Page 1 USB to HDMI Converter w/RJ45 ID# 706 Operation Manual...
-
Page 2: System Requirements
Introduction The Ethernet and USB to HDMI Converter allow users to use TV as the PC primary display with keyboard and mouse at hand for Internet browsing, using Microsoft Office, listening music and watching movies from a PC on the network. Simply connect the TV to the device and then plugging the device into an Ethernet network, this TV instantly become the PC monitor with keyboard and mouse for any computer on that network. -
Page 3: Software Installation
Software Installation To install the USB to HDMI and USB device drivers, please follow below steps. USB to HDMI Software Insert the provided driver CD into your CD-ROM driver, selected "USB to HDMI Software " folder and then execute "Setup.exe" file to install the driver. During the installation you can select your prefer language to install. - Page 4 Operating Functions Controls Front Panel 1. USB Port: Connect USB device into USB port such as, USB Hard Drive, USB web camera, Keyboard or Mouse. Note: These two USB ports can't extend with other USB Hub, otherwise it will cause the system failure to detect the external USB Hub. Before removed the USB device, user need to follow USB device safely remove hardware procedure to remove the device, otherwise, it will cause the system crash down.
- Page 5 and user can selected from SCREEN RESOLUTION. When switch OFF, the screen will show internal EDID and user can selected from SCREEN RESOLUTION. Note: When switch from ON to OFF position, user need to go to "Launch USB Server in " to disconnect DisplayLink USB to HDMI and reconnect it again.
- Page 6 • Screen Resolution: Select the screen resolution (available only in extended mode). Note: When the display has built-in native EDID the screen will show display's resolution, but if no built-in EDID the screen will have the follow resolution. Color Quality: Select the screen color quality (available only in extended mode).
- Page 7 • Screen Rotation: Rotate the screen on the additional monitor by 90, 180 or 270 degrees. Extend to: Reposition the extended screen to the top, bottom, left or right of the primary display. • Extend: Set the DisplayLink Manager to Extended mode.
- Page 8 • Mirror: Set the DisplayLink Manager to Mirror mode. You can see the same desktop image on the additional monitor. • Off: Disable the DisplayLink Manager on the system. Advanced: Display Properties. Directly access the You can also adjust the Display Properties.
- Page 9 Using More DisplayLink Manager It is not necessary to install driver again as long as you have completed above process of driver installation in advance. It will automatically define the ID of new adding DisplayLink Manager. All the DisplayLink Manager will list in the Display Properties or the display manager menu.
-
Page 10: Uninstall The Device Driver
Uninstall the Device Driver Follow the steps below to uninstall the driver of the Multi View. → Step 1: Open the Control Panel: Start Control Panel → Add or Remove Programs. Step 2: Select USB to HDMI Converter and click Remove. Step 3: Click Yes to confirm the removal. -
Page 11: Installation
Step 4: Click Yes to restart your computer. Step 5: Select Displaylink core software and click Remove to remove DisplayLink driver. Installation... - Page 12 Specifications Input port lx Mini USB; 1xEthernet Output ports lx HDMI; 2xUSB Extender Ports 2x USB Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 10kV (air-gap discharge) ± 6kV (contact discharge) Core chipset ± 2kV Dimensions (mm) 210(W) x 91(D) x 30.5(H) Weight(g)
