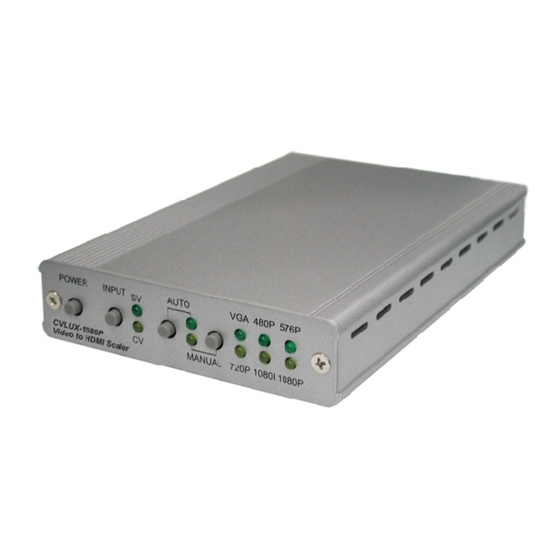

- Page 1 PAL NTSC Video to HDMI v1.3 HD Scaler Box - ID # 763 Operation Manual...
- Page 2 Introduction This scaler Box is designed to display your composite video/S-video images on the HDTV with better viewing resolutions. It can upscale any composite video/s-video’s input sources to HDMI output with wide-range resolutions. Further, this device also can transfer sounds for user to enjoy both HD images and sounds consistently.
- Page 3 Operation Controls and Functions Front Panel ① POWER selection button - Press the button once to power on the unit, press again to power off. This device has last memory’s function and will record your last input selection. The factory default is on CV input. ②...
- Page 4 ② SV/CV/RL INPUT – Connect from source with S-Video/CVBS/Video cable & R/L. ③ DC 5V – Plug the 5V DC power adapter into the unit and connect the adapter to AC wall outlet. Connection and Installation Output Resolution Chart RESOLUTION 640 X 480 60HZ 480P...
- Page 5 Specifications Input port Video / S-Video, Audio R/L RCA Jack Output port HDMI Output resolution VGA, 480p, 576p, 720p, 1080i, 1080p@ 50/60 Input signal levels Video at 1vpp, 75Ω Y: 1.0 V (75Ω) C: 0.286 V (75Ω) Audio L/R: 0.5Vrms Video System NTSC, PAL Audio Sampling Rate...
