Summary of Contents for Converters.TV 796
- Page 1 Video to DVI 1080p Scaler Box ID# 796 Operation Manual...
- Page 2 Introduction Video to DVI 1080p Scaler Box is an upgraded design to convert Standard Definition Composite Video (CV) and S-Video (SV) signals to High Definition PC and HDTV resolutions. Maximum output resolutions available are WUXGA and 1080p. With support for NTSC and PAL video format input, an in-built frame rate conversion feature from 50Hz to 60Hz ensures glitch-free viewing.

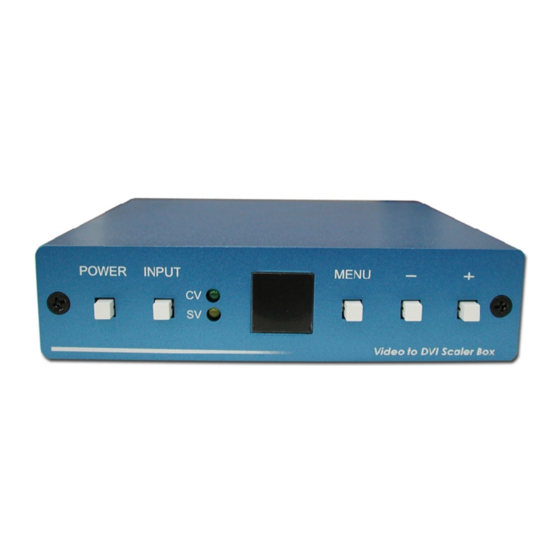

- Page 3 The green LED illuminates when composite video is selected. The Yellow LED illuminates when S-Video is selected. 2. Input select button: Press the button to select your desired input source between composite video and S- Video. 3. IR Sensor: Infrared remote control sensor. 4.
- Page 4 Output Format a. The format of digital DVI output is digital RGB for all resolutions. b. The format for analog PC output is RGB and for analog HD output is YPbPr. OSD Operation After power on the unit , press the menu button to bring up the main menu page as below: Main Menu Picture adj.
- Page 5 At this point, the selected parameter will turn red, and you can use +,- to increase or decrease the value of the parameter. When adjustment is complete, Press "Menu" to leave the parameter. Move the tick "V" to "Exit", then press menu/enter to exit. Output Setup When Output Set up is selected a submenu as below appears: Output Setup...
- Page 6 Remote Control 1. Display: Press the button to display input source and output resolution on the screen. 2. Power: Power ON/OFF button. 3. VGA~1080p: Press to select your desired output resolution. 4. Picture: Press the button to enter picture adjust submenu. Use +,- button to move cursor (V) up/down to your desired parameter, press "Picture"...
- Page 7 Specifications Output Signal Specifications Connection and installation a. Digital Out: Connect to your TV through digital DVI interface b. Analog Out: Connect to your TV through VGA or component interface in case your TV has no DVI input...
