Summary of Contents for Converters.TV 710
- Page 1 Digital-Analog Two Way Audio Converter - ID# 710 Operation Manual...

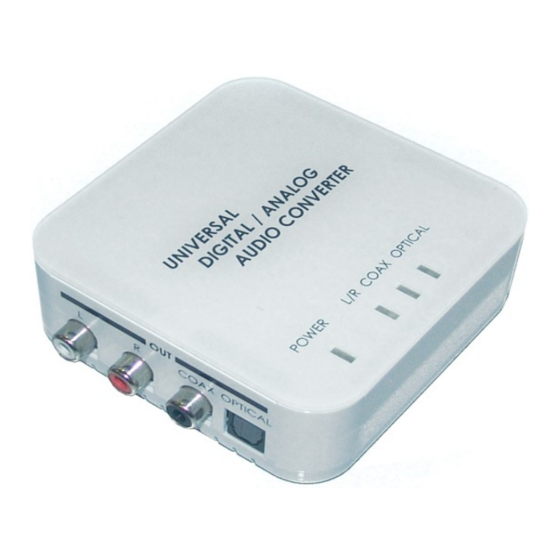

- Page 2 Introduction Digital-Analog Two Way Audio Converter. The unit allows you to convert an Analog L/R audio signal into a Digital output (Toslink Optical or Coaxial). The unit functions as a two way converter, also allowing you to convert a Digital Toslink or Coaxial signal into an Analog L/R output. The Digital to Analog function makes it ideal for the integration of your older style analog stereo sound system with new digital audio sources such as Blu-Ray DVD players, Game Boxes, Home Media Centres and full...
- Page 3 Right Panel ① OPTICAL: Connect from audio source equipment’s optical audio output with optical cable. ② COAX: Connect from audio source equipment’s coaxial audio output with coaxial cable. ③ L/R: Connect from audio source equipment’s L/R audio output with L/R RCA jack cable.
- Page 4 Installation Specifications Input Port Optical, Coaxial and L/R Input Format Toslink, SPIDIF and LPCM 2CH Sample Frequency 32kHz, 44.1kHz, 48kHz and 96kHz Output Ports Coaxial, Optical and L/R Output Level 2Vp-p Output Impedance 100Ω ESD Protection Human body model: ± 10kV (air-gap discharge) ±...
