Summary of Contents for Ozito OZHD710WA

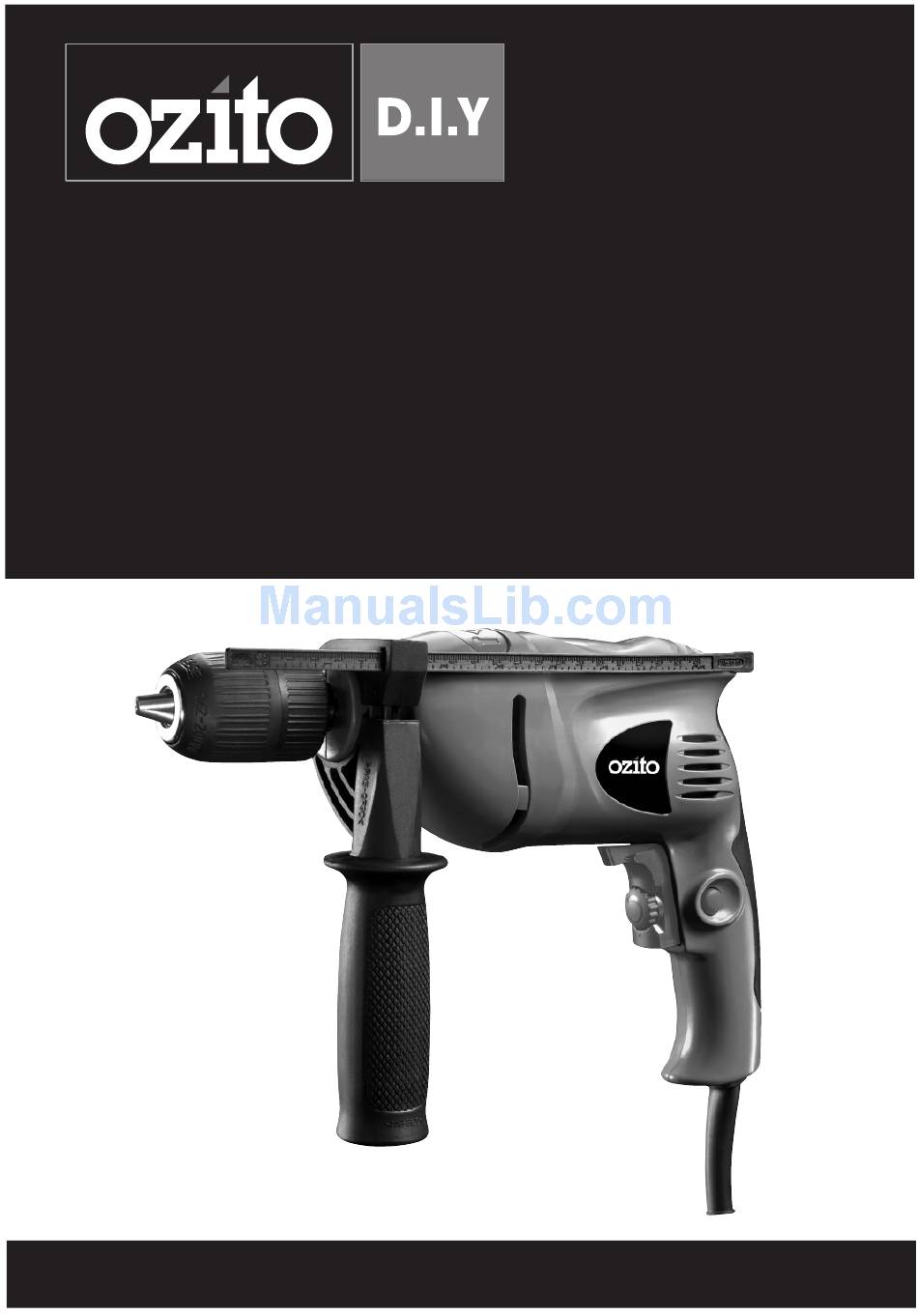

- Page 1 Hammer Drill 13mm 710 Watt Operation Manual 3 Year Replacement Warranty OZHD710WA 0209 www.ozito.com.au To view the full range visit:...
-
Page 2: Specifications - Model No. Ozhd710Wa
SPECIFICATIONS – MODEL NO. OZHD710WA Motor Size: 710W Input: 230V ~ 50 Hz Chuck Size: 13mm (1/2”) Keyless No Load Speed: 0 – 3,000 /min Impact rate: 0 – 48,000 bpm Net Weight: Drilling Capacity: Timber 25mm Steel 13mm Masonry 13mm... -
Page 3: Table Of Contents
TABLE OF CONTENTS Page 2 SPECIFICATIONS - MODEL NO. OZHD710WA ……. Page 3 TABLE OF CONTENTS…………………………………... Page 4 INTRODUCTION…………………………………………. Page 4 SAFETY INSTRUCTIONS………………………………... Page 7 OPERATION ……………………………………………… Page 9 MAINTENANCE …………….…………………………… CONTENTS ………………………………………………. Page 10 WARRANTY……………………………………………….. Page 11... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. - Page 5 GENERAL Warning! Read all instructions, Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Page 6 GENERAL (cont.) c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
-
Page 7: Operation
ADDITIONAL SAFETY INSTRUCTIONS FOR HAMMER DRILLS Before drilling into walls, ceilings etc, ensure that there are no concealed power cables or pipes in the cavity. Always use the side handle. This gives you greater control if the drill accessory should become jammed. - Page 8 OPERATION (cont.) Chuck Inserting Bits Open the jaws slightly larger than the bit you are inserting. Insert the drill bit up to the flutes making sure it is centred in the jaws. Tighten the chuck by holding the rear of the chuck and rotating the front with your other hand.
-
Page 9: Maintenance
Never let any liquid get inside the tool. Never immerse any part of the tool into a liquid. Note: Ozito Industries will not be responsible for any damage or injuries caused by repairing of the hammer drill by an unauthorised person or by mishandling of the tool. -
Page 10: Contents
CONTENTS 1 x Hammer Drill OZHD710WA 1 x Side Handle 1 x Depth Rod 1 x Instruction Manual OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1-23 Letcon Drive, Bangholme Victoria, Australia, 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au... -
Page 11: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
