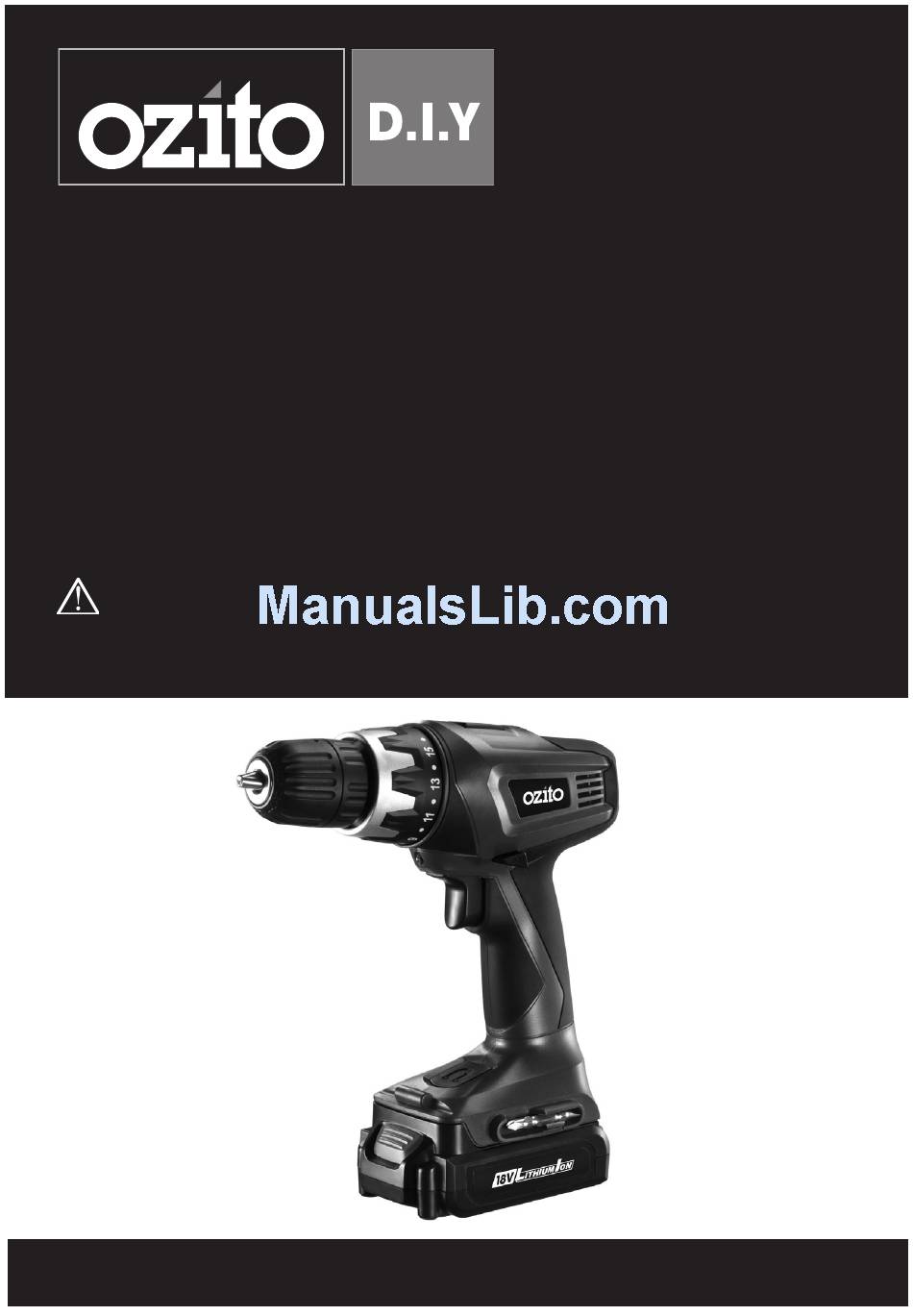

- Page 1 Cordless Drill Instruction Manual 3 Year Replacement Warranty CDL-1800 WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 2: Specifications
SPECIFICATIONS - MODEL NO. CDL-1800 Input Power: Charge time: 3 - 5 hrs No load speed: 0-550/min Chuck: 10mm Keyless Torque Settings: 16 + 1 Batteries: 2 x 1.3Ah Lithium Ion Weight: 1.25kg KNOW YOUR PRODUCT Keyless chuck Torque adjustment collar... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ……………………………………….. Page 1 INTRODUCTION………………………………………… Page 3 ELECTRICAL SAFETY…………….……………………… Page 3 GENERAL POWER TOOL SAFETY WARNINGS……… Page 4 BATTERY & CHARGER SAFETY WARNING…………… Page 6 ADDITIONAL SAFETY WARNINGS FOR DRILLS…….. Page 7 CHARGING THE BATTERY…………………………….. Page 8 DRILL OPERATION………………………………………... -
Page 4: Introduction
Drill. We aim to provide quality tools at an affordable price. We hope you will enjoy using this tool for many years. Your Lithium Ion Cordless Drill CDL-1800 has been designed for general purpose drilling or screwdriving around the home and is intended for DIY use only. -
Page 5: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL POWER TOOL SAFETY WARNINGS f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 7: Battery & Charger Safety Warning
BATTERY AND CHARGER SAFETY WARNINGS THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR BATTERY CHARGER. Before using the charger read all instructions and cautionary markings on the charger, battery pack and the product using the battery pack. Danger! If the battery pack case is cracked or damaged, do not insert it into charger. -
Page 8: Additional Safety Warnings For Drills
ADDITIONAL SAFETY WARNING FOR DRILLS Do not use the drill in wet or damp conditions. Always keep the work area free of tripping hazards. When using the drill always ensure you are wearing protective safety equipment including safety glasses/goggles, ear muffs, dust mask and other protective clothing including gloves and apron. -
Page 9: Charging The Battery
LITHIUM ION BATTERY AND CHARGER SAFETY FEATURES Over Current Protection If the battery (5) is overloaded and the maximum current draw is exceeded the battery will temporarily stop working to protect the internal components. The battery (5) will resume normal operation once the current draw has returned to its normal safe level. -
Page 10: Drill Operation
PREPARATION AND SET-UP (cont.) Important Charging Notes The charger adaptor (10) and battery (5) may become warm to touch while charging. This is a normal condition, and does not indicate a problem. Use the charger at normal room temperature whenever possible. To prevent overheating, do not cover the charger and do not charge the battery pack in direct sunlight or near heat sources. - Page 11 DRILL OPERATION Changing the Direction of Rotation The direction of rotation can be changed with the forward/reverse selector (4). This is located above the switch (9) (Fig. 5). To select the forward drilling position, push the forward/reverse selector (4) hard left. To select the reverse drilling position push the forward/reverse selector (4) hard right.
- Page 12 DRILL OPERATION (cont.) Keyless Chuck The keyless chuck (1) allows for easy installation and removal of accessories. To open and close the keyless chuck (1), firmly hold the chuck collar (a) and rotate the chuck body (b) with your hand (Fig. 7). The arrows on the keyless chuck (1) indicate in which direction to rotate the chuck body in order to GRIP (tighten) or RELEASE (unlock) the drill bit...
-
Page 13: Maintenance
If the housing of the drill requires cleaning, do not use solvents but cloth only. • Blow out the ventilation slots with compressed air periodically. Note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the cordless drill/driver by an unauthorised person or by mishandling. -
Page 14: Spare Parts
SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part Part No. 18V Battery Pack SPCDL1800-11 Charging Stand SPCDL1800-21 Charging Adaptor SPCDL1800-22... -
Page 15: Pack Contents
2 x Screwdriver Bit 2 x 18V Li-Ion Battery Packs 1 x Charging cradle 1 x AC Charging adaptor OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au... -
Page 16: Warranty
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
