Ozito 710W Instruction Manual
  1. Manuals
  2. Brands
  3. Ozito Manuals
  4. Drill
  5. HDR-3000
  6. Instruction manual

Ozito 710W Instruction Manual

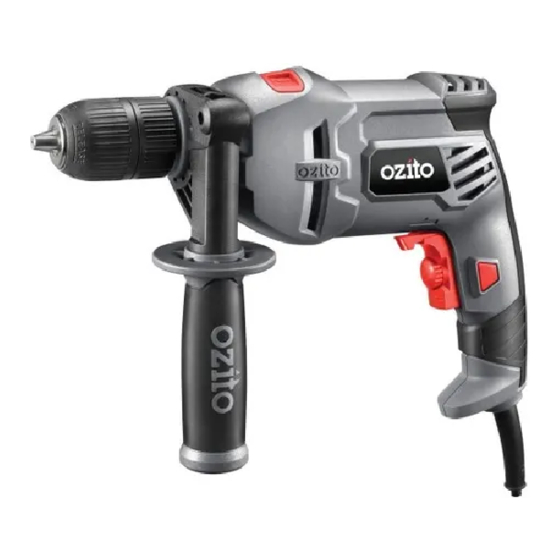

710w hammer drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

HAMMER
DRILL
710W
INSTRUCTION MANUAL

SPECIFICATIONS

Motor:
710W
Input:
230-240V ~ 50Hz
1
Chuck Size:
13mm (
/
") Keyless
2
No Load Speed:
0-3,000/min
Impact Rate:
0-48,000bpm
Net Weight:
2kg
Drilling Capacities:
Timber 25mm
Steel 13mm
Masonry 13mm
ozito.com.au
WHAT'S IN THE BOX
Hammer Drill
Side Handle
Depth Rod
HDR-3000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 710W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ozito 710W

Summary of Contents for Ozito 710W

  • Page 1 WHAT’S IN THE BOX HAMMER DRILL Hammer Drill 710W INSTRUCTION MANUAL SPECIFICATIONS Side Handle Motor: 710W Input: 230-240V ~ 50Hz Chuck Size: 13mm ( ”) Keyless No Load Speed: 0-3,000/min Depth Rod Impact Rate: 0-48,000bpm Net Weight: Drilling Capacities: Timber 25mm...
  • Page 2 KNOW YOUR PRODUCT SETUP & PREPARATION 1. SIDE HANDLE & DEPTH ROD HAMMER DRILL 1 Depth Rod 5 Forward/Reverse Lever Ensure the tool is disconnected from the power supply before performing any of the following operations. 2 Keyless Chuck 6 Speed Selection Dial 3 Side Handle 7 Variable Speed Switch Side Handle...
  • Page 3 OPERATION 2. CHUCK 3. ON/OFF SWITCH Keyless Chuck This tool is recommended for the use with a residual current device with a rated residual current of 30mA or less. 1. Open the chuck jaws. Variable Speed Switch 1. Plug the tool into the mains power supply. 2.
  • Page 4 3. CONTROLS 4. DRILLING Before connecting to a power supply, perform a few simple checks. Speed Selection Dial 1. Depress and release 2. Check the forward/ 1. For faster speed, rotate speed selection dial clockwise. For the variable speed switch reverse lever for the correct slower speed, rotate dial anti-clockwise.

  • Page 5: Carbon Brushes

    Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the drill by an unauthorised person or by mishandling of the drill.
  • Page 6 Tool: 710W Hammer Drill SPARE PARTS Model No. HDR-3000 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. Chuck & Screw...
  • Page 7 Replace the extension lead if damaged or defective. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.
  • Page 8 • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0812...

This manual is also suitable for:

Hdr-3000

Table of Contents
