Network Monitoring Port

You can designate a port for monitoring traffic on any one of the other ports
on the switch. This is accomplished by copying all traffic from the specified
port to the designated monitoring port. The feature is also referred to as
"mirroring".
How To Configure the Switch for Monitoring: This procedure
describes configuring the switch for monitoring when monitoring is disabled.
(If monitoring has already been enabled, the screens will appear differently
than shown in this procedure.)
1.
Select Network Monitoring Port from the Configuration screen.
2.
In the Actions menu, press [E] (for Edit).
3.
If monitoring is currently disabled (the default) then enable it by pressing
the Space bar (or [Y] ) to select Yes.

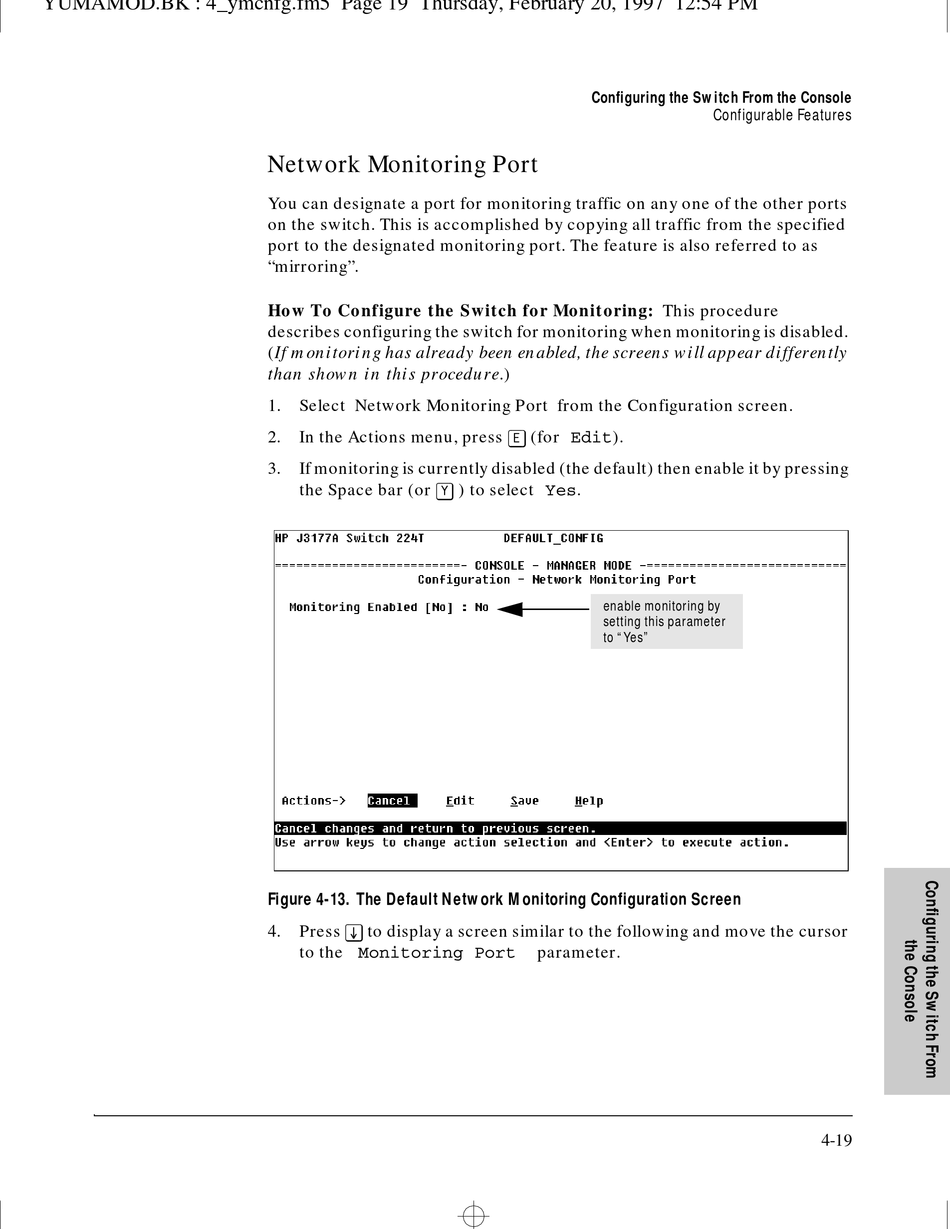

Figure 4-13. The Default Network Monitoring Configuration Screen
Press [v] to display a screen similar to the following and move the cursor
4.
to the Monitoring Port
Configuring the Switch From the Console
Configurable Features
enable monitoring by
setting this parameter
to "Yes"
parameter.
4-19
