Advanced Installation
Sensor Installation

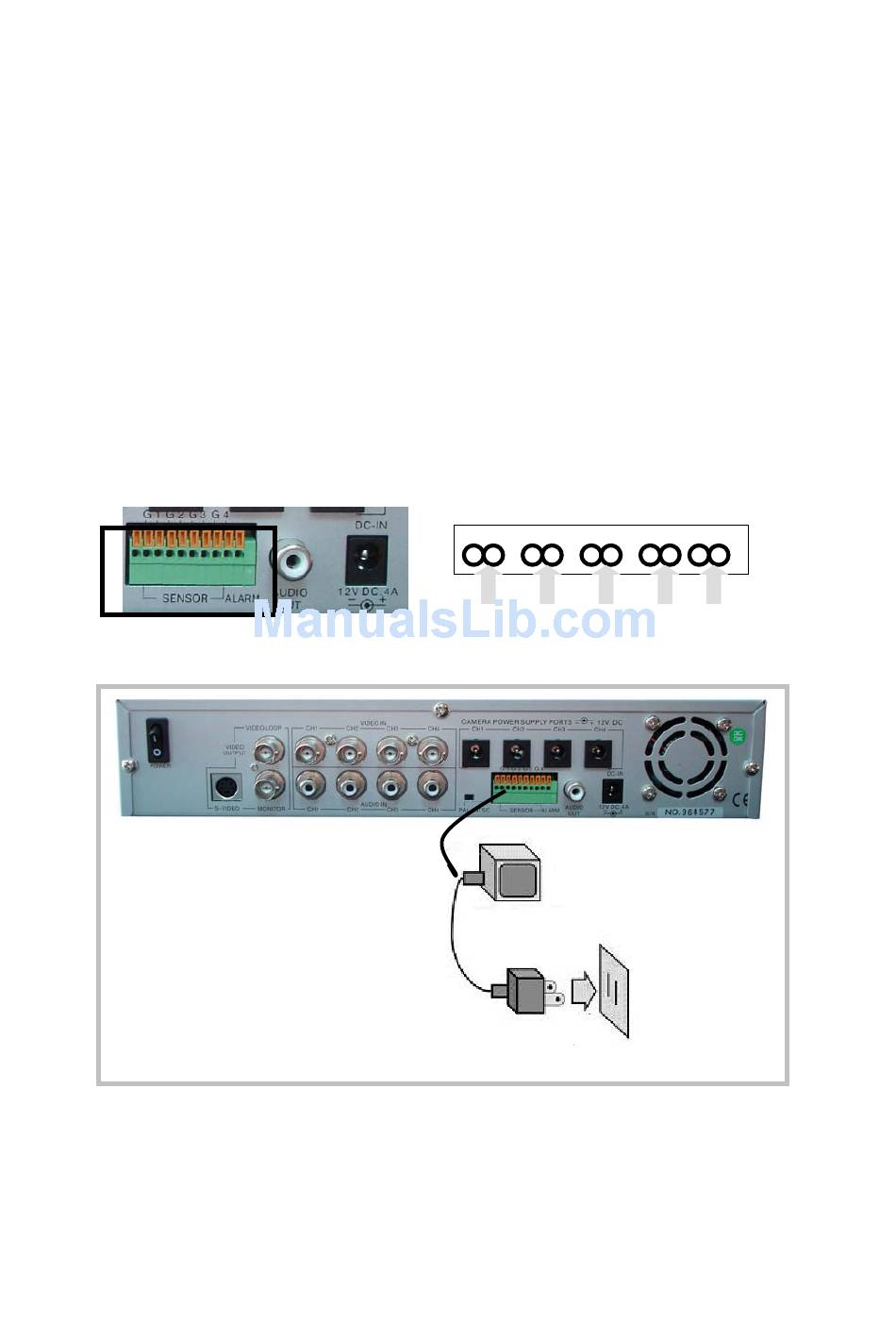

The DVR has 4 sensor inputs, one for each channel. The sensor Installation
Procedure is as the following:
I. Connect the sensor signal line to the unit. The sensor signal terminal is on the
DVR rear panel.
II.Connect the sensor adaptor jack into the sensor, and plug in the power adaptor.
CH1 CH2 CH3
CH4
Alarm out
Signal Line
Sensor
Power line
AC/DC adaptor
power outlet
