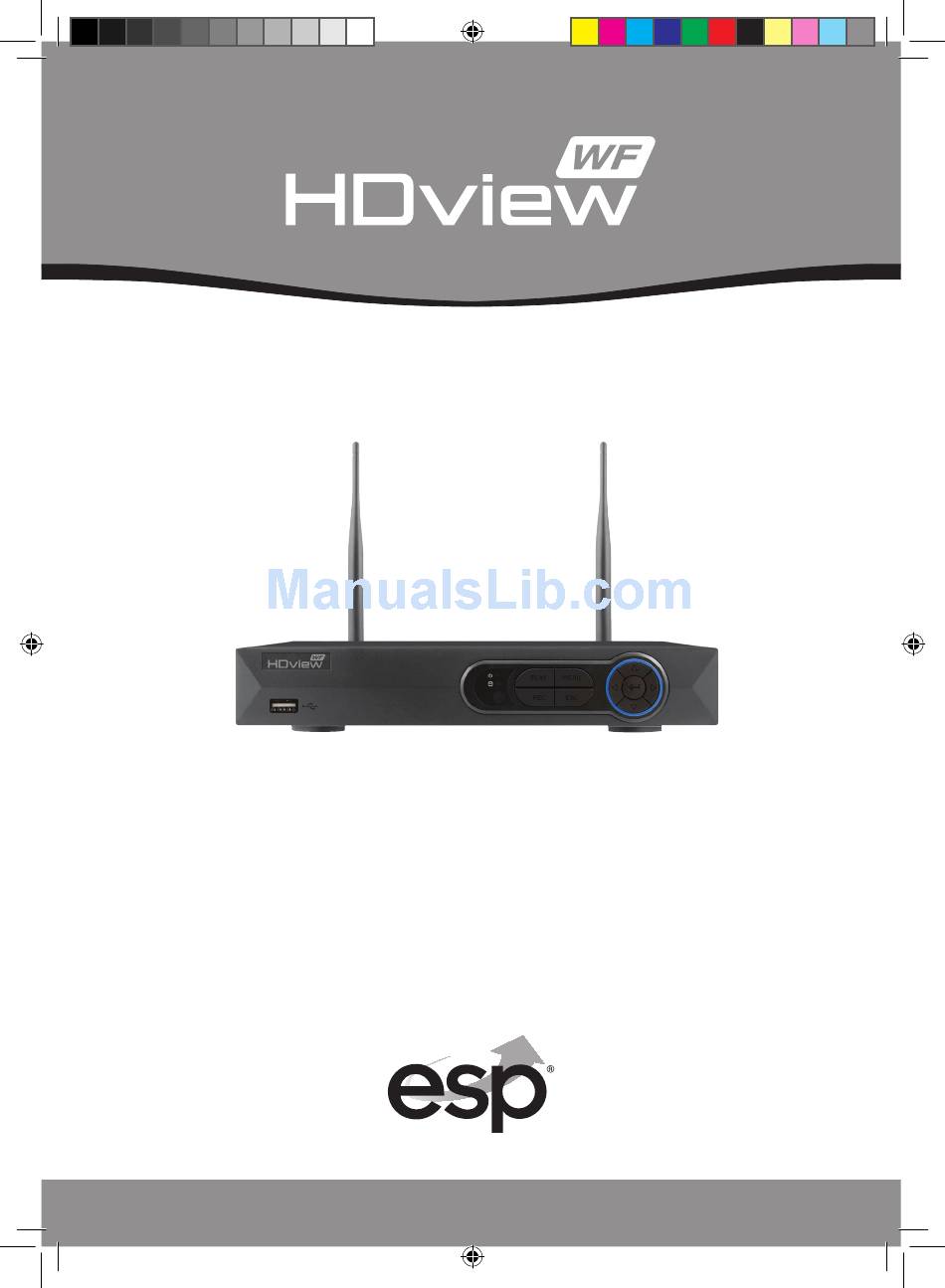

- Page 1 4 C H A N N E L W I R E F R E E F U L L H D C C T V S Y S T E M FHDV4KBWF FHDV4RWF FHDVC4FBWF U S E R M A N U A L w w w. es p u k . c o m FHDV4KBWF Manual.indd 1 21/12/2016 13:26:34...
-
Page 2: Table Of Contents
Incorrect adjustment of a control part not mentioned in the manual may damage the machine • Ensure air ventilation around the unit and do not cover or block the vent hole • Do not place the unit in direct sunlight or near a heat source FHDV4KBWF Manual.indd 2 21/12/2016 13:26:34... -
Page 3: Nvr Description
NVR DESCRIPTION FRONT PANEL FHDV4KBWF Manual.indd 3 21/12/2016 13:26:34... - Page 4 Avoid siting transmitter or receiver units in close proximity to other wire free equipment such as routers, baby monitors or sources of electrical energy such as microwave ovens, very high voltage cable etc . . FHDV4KBWF Manual.indd 4 21/12/2016 13:26:34...
-
Page 5: Basic Operations
The recording status and alarm status are indicated by the following icons: Recording Motion Detect Time defined recording Each channel with a paired camera will also display the signal strength; Disconnected Low Signal Average Signal High Signal FHDV4KBWF Manual.indd 5 21/12/2016 13:26:34... -
Page 6: To Access The Menu
NVR alarm will activate . If a wrong password is entered five times the system will lock out . To reset the system turn the main power off and back on after 5 minutes . FHDV4KBWF Manual.indd 6 21/12/2016 13:26:34... -
Page 7: Shortcut Menu
Before first use, please Format the Hard Drive (HDD) Enter the Short Cut menu; >Select System Setup >Select General Setup >Select HDD Setup >Highlight HDD >Select the option to Format . The unit is now ready to record FHDV4KBWF Manual.indd 7 21/12/2016 13:26:35... -
Page 8: Record Setup
Motion; only records motion triggers picked up by the system . NB. When entering the ‘Record Setup’ the default screen will always start with a display of the settings for Channel 1 and the current day’s schedule. FHDV4KBWF Manual.indd 8 21/12/2016 13:26:35... - Page 9 Once a camera has been set to ‘Motion’ in the schedule enter the Video Detection menu to define parameters; From the System Setup menu enter Channel Setup > Video Detection . Select required channel and ensure option is enabled before adjusting the on screen settings . FHDV4KBWF Manual.indd 9 21/12/2016 13:26:35...
-
Page 10: Playback Recording
NB. Practice playing back footage to familiarize with the process before an incident occurs. NB. As default the record resolution is set to 1080p. For best performance in this resolution it is recommended that only one channel at a time is selected for playback. FHDV4KBWF Manual.indd 10 21/12/2016 13:26:35... -
Page 11: Transferring To Usb
The NVR will place an AVI file on the USB Memory stick . NB. Practice backing-up footage to familiarize yourself with the process before an incident occurs. NB. The AVI file will enable playback via a PC using AVI players such as Windows Media Player and DIV-X. FHDV4KBWF Manual.indd 11 21/12/2016 13:26:35... -
Page 12: Pairing Additional Cameras
With the power on to both devices enter the Short Cut menu on the NVR and select Video Manage Select ‘Match Code’, after 60 secs ‘Match Code Successfully’ will appear . Auto add, and the camera will be visible on the preview screen . FHDV4KBWF Manual.indd 12 21/12/2016 13:26:35... -
Page 13: Remote Viewing
The network status should state ‘Healthy Network’, if not please ensure DHCP is enabled in the Network Menu and reboot the NVR, check connections and replace network cable if necessary . Download the ESP HDview WF APP for Android or IOS; FHDV4KBWF Manual.indd 13 21/12/2016 13:26:36... - Page 14 Register a user account and log-in; Select the ‘Plus’ symbol; Select ‘Add device by ID; Enter the Cloud ID by selecting the scan symbol; Scan the QR code on the NVR’s ‘Fast Network’ Page; FHDV4KBWF Manual.indd 14 21/12/2016 13:26:36...
- Page 15 The system will now be select ‘Submit’; accessible; PC/Laptop Software: CMS (Central Management Software) that is supplied on the CD supplied with the NVR (Windows compatible) Install the CMS file to and open; Select Settings; FHDV4KBWF Manual.indd 15 21/12/2016 13:26:36...
- Page 16 Enter the Cloud ID of the NVR, which can be found on the NVR’s ‘Fast Network’ page . Proceed to enter the rest of the details including NVR password, user defined ‘Device Name’ and select Confirm . FHDV4KBWF Manual.indd 16 21/12/2016 13:26:36...
- Page 17 The System’s details will appear on the ‘Preview’ page, select to view cameras; NOTE: ESP are unable to guarantee that every device will be compatible with the NVR and software supplied . Specific models of phone, tablet or other device, the...
-
Page 18: Help Guide
. An incorrect HDD has been installed The images appear unstable during playback a . The recommend setting for 1080p playback is 1 channel only Network connection issue a . Network is not stable b . NVR is not networked correctly FHDV4KBWF Manual.indd 18 21/12/2016 13:26:36... - Page 19 FHDV4KBWF Manual.indd 19 21/12/2016 13:26:36...
- Page 20 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 Lakeside, Redditch B98 8YN email: info@espuk .com E&OE - Errors and omissions excepted . I16 w ww . es pu k . co m FHDV4KBWF Manual.indd 20 21/12/2016 13:26:36...
