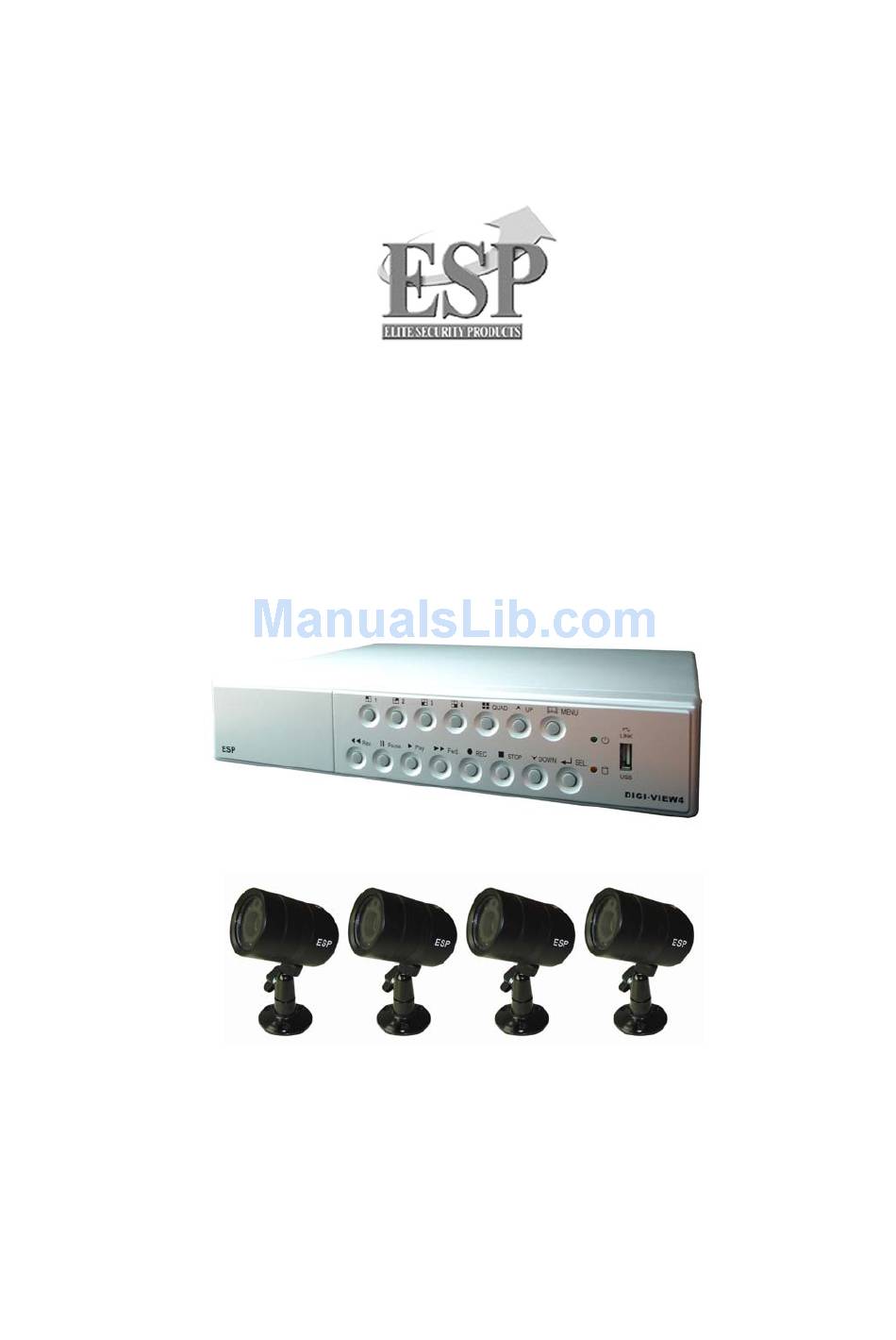

- Page 1 Installation and User Guide DIGI-VIEW 4 SYSTEM...
- Page 2 Regulatory FCC Certification This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
CONTENTS System Introduction ---------------------------------------------------------------- 1 Package Content --------------------------------------------------------------------2 DVR Front Panel Buttons --------------------------------------------------------- 3 DVR Back Panel Buttons -------------------------------------------------------- 4 Video Output Connection (To TV/Monitor) ----------------------------------- 5 Video Input Connection (Camera) --------------------------------------------- 6 Sensor Installation ----------------------------------------------------------------- 7 Alarm Installation ------------------------------------------------------------------- 8 Switch on the DVR ----------------------------------------------------------------- 9 Record -------------------------------------------------------------------------------- 10 OSD Operation Guide：Play Menu --------------------------------------------- 11... - Page 4 OSD Operation Guide: Over Write ------------------------------------------------- 18 OSD Operation Guide: HDD Size and HDD used ------------------------------ 18 OSD Operation Guide: HDD Format ---------------------------------------------- 18 OSD Operation Guide: Sensor Setup Menu ------------------------------------- 19 OSD Operation Guide: Motion Setup Menu -------------------------------------- 20 How to backup through USB to PC ------------------------------------------------- 21 Print Event ------------------------------------------------------------------------------- 23 DVR Specification --------------------------------------------------------------------- 24...
-
Page 5: System Introduction
SYSTEM INTRODUCTION DIGI-VIEW 4 SYSTEM is a CCTV surveillance system for home and small office uses. Connecting four cameras to DVR (Digital Video Recorder), you can enjoy various functions DVR provides. The Digital Video Recorder (DVR) is for recording / retrieving video streams up to 4 channels at the same time. -
Page 6: Package Content
Package Content DIGI-VIEW 4 CHANNEL DVR * 1 DVR POWER TRANSFORMER *1 DAY & NIGHT WEATHERPROOF CAMERA * 4 15 METER DIY CABLE * 4 50 cm DVR TO TV LEAD (BNC TO BNC) * 1 50 cm DVR TO TV LEAD (BNC TO RCA) *1 BNC TO RCA ADAPTOR * 1 CD DSIK * 1 MANUAL BOOK * 1... -
Page 7: Dvr Front Panel Buttons
DVR Front Panel Buttons Menu button：Press to display Operation menu option 2. Up button：used in menu All channels button：Press to display all channels Channel 4 button：Press to display channel 4 Channel 3 button：Press to display channel 3 Channel 2 button：Press to display channel 2 Channel 1 button：Press to display channel 1 Reverse : Press to rewind playback Pause button：Press to pause playback... -
Page 8: Dvr Back Panel Buttons
DVR Back Panel Functions 1. VIDEO Output (BNC ONE) to TV / Monitor 2. VIDEO Output (BNC TWO) 3. S-Video Output 4. Camera Power Supply (To Camera) 5. Video Input (For Camera) 6. Sensor / Alarm Input 7. Video Format Switch (NTSC / PAL) 8. -
Page 9: Video Output Connection (To Tv/Monitor)
Video Output Connection ( TV or Monitor) Connect a TV (Monitor) to the DVR using one of the video output connectors. The DVR provides 1 x S-Video and 2 x BNC video outputs. The below figure shows the video line connection. WHAT’S BNC =>... -
Page 10: Video Input Connection (Camera)
Video Input Connection (Camera) Connect cameras to the DVR. The DVR provides 4 x BNC connectors. The camera installation procedure is shown below: Connect the video signal line and power to the DVR. Connect the video signal line and power to camera. -
Page 11: Sensor Installation
Advanced Installation Sensor Installation The DVR has 4 sensor inputs, one for each channel. The sensor Installation Procedure is as the following: I. Connect the sensor signal line to the unit. The sensor signal terminal is on the DVR rear panel. II.Connect the sensor adaptor jack into the sensor, and plug in the power adaptor. -
Page 12: Alarm Installation
Advanced Installation Alarm Installation The DVR includes one internal switch for sounding an alarm when any of the sensor inputs is activated. The switch is normally open and closed upon activation. The circuitry is shown in the above figure. The alarm is installed as follows: I.The alarm requires a power supply, which is normally supplied with the alarm. -
Page 13: Switch On The Dvr
Switch On the DVR Before turn on the power, please make sure Video Format is in right position NTSC Area : North America, Japan, Philippines, Taiwan & etc. PAL Area : Europe, South America, Australia, Mid-East & Africa Asian Countries most use PAL like Indonesia, Thailand, Malaysia and etc. Once the DVR and HDD have been properly installed (please refer to pages 3 ~ 8 for further details about DVR installation) the unit is ready to record and display. -
Page 14: Record
Record Press button on the front panel to start record. The DVR will record the selected images and save them onto the HDD. A sample of recording a quad view is shown below: A circular symbol displayed on the screen indicates the activation of recording. Any specific channel or quad view can be displayed on the monitor by pressing the appropriate Channel Select button while recording is in the process. -
Page 15: Osd Operation Guide：play Menu
Play Menu Press (play button) to open the playback menu as shown below. HARD DRIVE：MASTER 05/06/18 17:26:47-05/06/25 17:28:23 01 TIME 2005/06/18 17:26:47 02 TIME 2005/06/19 17:25:47 03 TIME 2005/06/19 20:03:50 PRESS﹝∧,∨﹞THEN﹝SELECT﹞ PRESS ﹝MENU﹞TO EXIT List of events triggered by installed sensors or motion detection. Available recordings in the HDD can be played. -
Page 16: Osd Operation Guide：main Menu
MAIN MENU Press the button to display the main menu. CAMERA SELECT 1234 RECORD SELECT 1234 RECORD MODE EACH RECORD FRAMERATE VIDEO QUALITY HIGH RECORD SCHEDULE =SUB MENU= HARD DRIVE SETUP SENSOR SETUP NETWORK SETUP PRESS﹝∧,∨﹞THEN﹝SELECT﹞ PRESS ﹝MENU﹞TO EXIT Use the ▼ and ▲ buttons to move the cursor up and down. Press to enter the selected sub-menu. -
Page 17: Osd Operation Guide: Record Select
Operation Guide: RECORD SELECT Used to select the cameras whose video inputs will be recorded on the HDD. Desired cameras must be pre-selected in the “Camera Menu” in order to perform recording properly. to cycle through the options. Press to make the selection and return to the main directory. NOTE: Desired channels cannot be recorded properly if the corresponding cameras are not pre-selected in the “Camera Menu.”... -
Page 18: Osd Operation Guide: Schedule Record
Operation Guide: SCHEDULE RECORD MAIN MENU Select this option to change a CAMERA SELECT 1234 recording schedule during a day RECORD SELECT 1234 (24-hour period) 田 RECORD MODE RECORD FRAMERATE 30 VIDEO QUALITY RECORD SCHEDULE SUB MENU HARD DRIVE SETUP SENSOR SETUP Numbers below indicate the time duration in 24 hour format. -
Page 19: Osd Operation Guide: Sub Menu
Operation Guide: SUB MENU Sub Menu allows users to change SUB MENU system password, system date and time, PASSWORD CHANGE as well as various audio functions and TIME SET auto record. Use ( ) to move cursor BUZZER SOUND [OFF] and select. -
Page 20: Osd Operation Guide: Time Setup
Operation Guide: TIME SETUP ▼ and ▲ -- Position Year, Month, TIME Day, Hour, 2004/03/21 03:23:21 Minute or Seconds. -- Cycle through options (0,1,2 …9) PRESS ( ), THEN (SELECT ) PRESS(MENU) TO EXIT -- Exit Operation Guide: BUZZER SETUP Use the ▼... -
Page 21: Osd Operation Guide: Audio Mute
Operation Guide: AUDIO MUTE AUDIO OUT MUTE :ON Use ▼ and ▲ to select audio out mute. Press to choose ON/OFF. Press to return to the main menu. Operation Guide: AUDIO CHANNEL SELECT Use ▼ and ▲ to select audio channel. Press to cycle through options. -
Page 22: Hard Drive Setup
Hard Disk Drive Setup Menu HARD DRIVE SETUP OVERWRITE ENABLED MASTER HDD SIZE 400MB MASTER HDD USED 0MB 0% MASTER HDD FORMAT SLAVE HDD SIZE SLAVE HDD USED SLAVE HDD FORMAT PRESS (<,>) THEN (SELECT) PRESS (MENU) TO EXIT Operation Guide: OVER WRITE “YES”. -
Page 23: Osd Operation Guide: Sensor Setup Menu
SENSOR SETUP MENU SENSOR SETUP SENSOR RECORD TIME: SENSOR RECORD TIME Recording duration once sensor ALARM ON TIME Being triggered. SENSOR SET UP Selects record time from 0 ~180 seconds. MOTION SETUP ALARM OUT TIME: PRESS (<,>) THEN (SELECT) It controls how long ( in second) PRESS (MENU) TO EXIT the alarm sounds after being triggered. -
Page 24: Osd Operation Guide: Motion Setup Menu
MOTION SETUP MENU MOTION DETECTION CHANNEL-1 SENSITIV 0 (OFF) MOTION SET UP AREA SETUP CHANNEL-2 SENSITIV 1 SENSITIVITY: Sets the sensitivity level for AREA SETUP Motion Detection. 0 (OFF) to 5 (maximum sensitivity). CHANNEL-3 SENSITIV 5 AREA SETUP ▼ and ▲ buttons to select the sensitivity for CHANNEL-4 SENSITIV 2 each Channel AREA SETUP... -
Page 25: How To Backup Through Usb To Pc
How to Backup through USB port to PC Backup through USB port The unit provides one USB port to simple backup over the connection with PC. Please mind the following steps to successful link. Step 1. Connect the USB cable between the unit and PC Step 2. - Page 26 Hints： When PC detects USB storage setup, PC has connected DVR host already. Switch on PC LINK play program for 20~30 seconds, you can see following footage. 1. Fast rewind 9. Channel selection 2. Play next frame 10. BMP picture file 3.
-
Page 27: Print Event
PRINT EVENT Move the mouse to 8 ( Event search), and select the event you want.Then, click OK to play the event recorded. The menu is shown below. Copy the images and record the images DVR host play program offers dynamic and static image output. You can easily copy the static image, and store it in BMP file, or store a certain part of record in AVI file. -
Page 28: Dvr Specification
DVR SPECIFICATION Image Compression Advanced M-JPEG Video Signal NTSC Image Resolution 720 X 480 720 X 576 Display Rate 120 fps (4 x 30) 100 fps (4 x 25) Display Rate fps) Video Each Mode 320 x 112 320 x 136 Record Quad Mode 640 x 224 (total) -
Page 29: Camera Specification
CAMERA SPECIFICATION Pick Up Elements SHARP ¼” CCD Image Sensor Number of Pixels <PAL> 500 H * 582 V Back Light Compensation Auto Electronics Shutter Sync. Mode Internal Sync. Scanning System 2:1 Interlace Auto White Balance Resolution 420 TV Lines S/N Ratio More than 48dB Gamma... - Page 31 Technical Support 0121 7861881...
