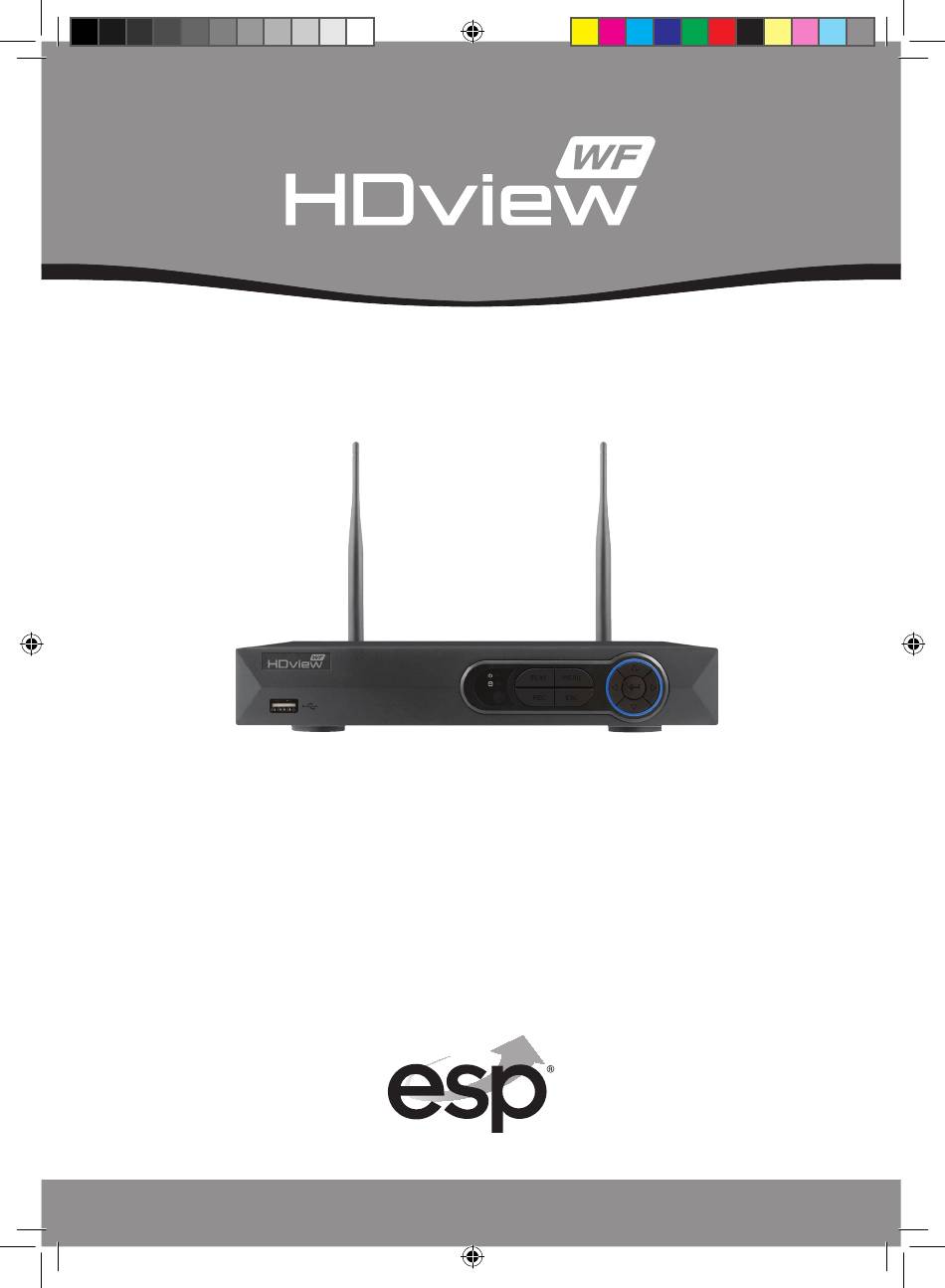

- Page 1 4 C H A N N E L W I R E F R E E F U L L H D C C T V S Y S T E M FHDV4KBWF FHDV4RWF FHDVC4FBWF U S E R M A N U A L w w w.
-
Page 2: Table Of Contents
CONTENTS NVR Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Basic Operations . -
Page 3: Nvr Description
NVR DESCRIPTION FRONT PANEL FHDV4KBWF Manual.indd 3 21/12/2016 13:26:34... - Page 4 IP CAMERA DESCRIPTION Although the housing of the IPC is weatherproof, the LAN port and power connection require weatherproof housing . For best wire free signal insure system antennas run parallel; Wire Free Technology The stated Open field range of 150M is across an open field . Any line of transmission obstruction will reduce the useful range .
-
Page 5: Basic Operations
BASIC OPERATIONS CONNECTION TO A MONITOR The NVR has a HDMI and VGA output to connect to a monitor . Please select the appropriate connection and select the correct input channel on the monitor . POWER ON Plug the power supply to the DC12V terminal and Switch On from the rear panel . POWER OFF Turn off the NVR at the mains power source after selecting the power off option from the Shortcut Menu/ Exit System. - Page 6 TO ACCESS THE MENU Right click the mouse anywhere on screen to activate the Shortcut Menu . Selecting Main Menu option will automatically display the System Login screen . The default settings are: User Name: Admin Password: ‘leave blank’ Once logged in, right click to access menu selections . An opportunity to change the password is provided within the settings menu .
- Page 7 SHORTCUT MENU Right-clicking on the live camera screen will activate the Shortcut Menu where the most regularly used settings can be found . Before first use, please Format the Hard Drive (HDD) Enter the Short Cut menu; >Select System Setup >Select General Setup >Select HDD Setup >Highlight HDD...
-
Page 8: Record Setup
RECORD SETUP RECORD CONFIGURATION Manual Record- As default the unit will be set to manual record, the cameras are recording continuously and the HDD will automatically overwrite the oldest data available . To access the menu enter the Shortcut Menu and select Manual Record. Motion and Schedule Record- Access the Shortcut Menu >... - Page 9 Additional Motion Record Settings Once a camera has been set to ‘Motion’ in the schedule enter the Video Detection menu to define parameters; From the System Setup menu enter Channel Setup > Video Detection . Select required channel and ensure option is enabled before adjusting the on screen settings .
-
Page 10: Playback Recording
RECORDING PLAYBACK The NVR records all camera footage to the internal Hard Drive . To access the footage enter the Shortcut Menu >Video Playback . Manual search allows the user to define the exact point of when to begin playback . NB. -
Page 11: Transferring To Usb
TRANSFERRING A RECORDING TO USB To extract footage from the Hard Drive please insert a USB memory stick (8GB MAX .) into a free USB port on the NVR . Enter the Shortcut Menu > Video Back up, Define, search and select the required footage before selecting backup . The NVR will place an AVI file on the USB Memory stick . -
Page 12: Pairing Additional Cameras
PAIRING ADDITIONAL CAMERAS The NVR is supplied with 2 pre-registered cameras, to add an additional camera; Connect the additional Camera to the NVR using the LAN port on the NVR using the supplied network cable; With the power on to both devices enter the Short Cut menu on the NVR and select Video Manage Select ‘Match Code’, after 60 secs ‘Match Code Successfully’... -
Page 13: Remote Viewing
The network status should state ‘Healthy Network’, if not please ensure DHCP is enabled in the Network Menu and reboot the NVR, check connections and replace network cable if necessary . Download the ESP HDview WF APP for Android or IOS; FHDV4KBWF Manual.indd 13 21/12/2016 13:26:36... - Page 14 Register a user account and log-in; Select the ‘Plus’ symbol; Select ‘Add device by ID; Enter the Cloud ID by selecting the scan symbol; Scan the QR code on the NVR’s ‘Fast Network’ Page; FHDV4KBWF Manual.indd 14 21/12/2016 13:26:36...
- Page 15 Enter the remaining details and The system will now be select ‘Submit’; accessible; PC/Laptop Software: CMS (Central Management Software) that is supplied on the CD supplied with the NVR (Windows compatible) Install the CMS file to and open; Select Settings; FHDV4KBWF Manual.indd 15 21/12/2016 13:26:36...
- Page 16 On the ‘Settings’ page select ‘Add Device’; The ‘Add Device’ menu will open; Select By ID Enter the Cloud ID of the NVR, which can be found on the NVR’s ‘Fast Network’ page . Proceed to enter the rest of the details including NVR password, user defined ‘Device Name’...
- Page 17 The System’s details will appear on the ‘Preview’ page, select to view cameras; NOTE: ESP are unable to guarantee that every device will be compatible with the NVR and software supplied . Specific models of phone, tablet or other device, the...
-
Page 18: Help Guide
Help Guide In the event of trouble with the system please follow the troubleshooting guide . If further problems persist please contact the installer / supplier . The NVR will not boot up normally a . The incorrect power supply is being used b . - Page 19 FHDV4KBWF Manual.indd 19 21/12/2016 13:26:36...
- Page 20 Elite Security Products Telephone: 01527 51 51 50 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 Lakeside, Redditch B98 8YN email: info@espuk .com E&OE - Errors and omissions excepted . I16 w ww . es pu k . co m FHDV4KBWF Manual.indd 20 21/12/2016 13:26:36...
