Introduction
The Extron P/2 DA2xi MT is a distribution amplifier that accepts
video input from a VGA, XGA, UXGA, or QXGA compatible PC
and distributes the signal to separately buffered outputs. Each
output can be extended with Extron MVGA Series cables from 6'
to 250' in length. The MT model also has audio input and output.
Features
• Power/Signal LED — Green LED = power + signal.
Amber LED = power but no signal. Off = no power.
• Gain/Peak DIP switch — Use this feature to compensate for
longer cable runs.
• Out Imp DIP switch — Changes the output impedance to be
compatible with all projectors.
• Cable retention chain — The input cable can be secured to the
unit (either model) with the supplied chain (attached to the
right standoff nut of the input VGA connector) to prevent the
cable from becoming lost or misplaced.
INPUT
AUDIO
Installation
The P/2 DA2xi MT can be mounted on a rack shelf, under a desk
or tabletop, or on a projector bracket.
Rack mounting
For optional rack mounting, mount the P/2 DA2xi MT on a
19", 1U RSF 123 VersaTools
standard RSU 129 1U universal rack shelf kit (part #60-190-01) as
shown in the next figure.
Only products in the VersaTools line can be mounted to a
VersaTools rack shelf.
1. Remove the rubber feet (if installed) and mount the unit on the
rack shelf, using two screws in opposite (diagonal) corners.
2. Install blank panel(s) or other unit(s) to the rack shelf.
3. Insert the shelf into the rack, and secure the shelf to the rack
using the supplied machine screws.
2 P/2 DA2xi MT • Installation
MONITOR
® rack shelf kit (part #60-190-20) or a
VersaTools Rack Shelf
DIS
TR
IBU TIO
N AM
PL
IFI ER
DIS
TR
IBU TIO
N AM
PL
IFI ER
1/4 Rack Width False Front
Face Plate
Use 2 mounting holes on
opposite corners.
DIS
TR
IBU TIO
N
AM PL
IFI ER

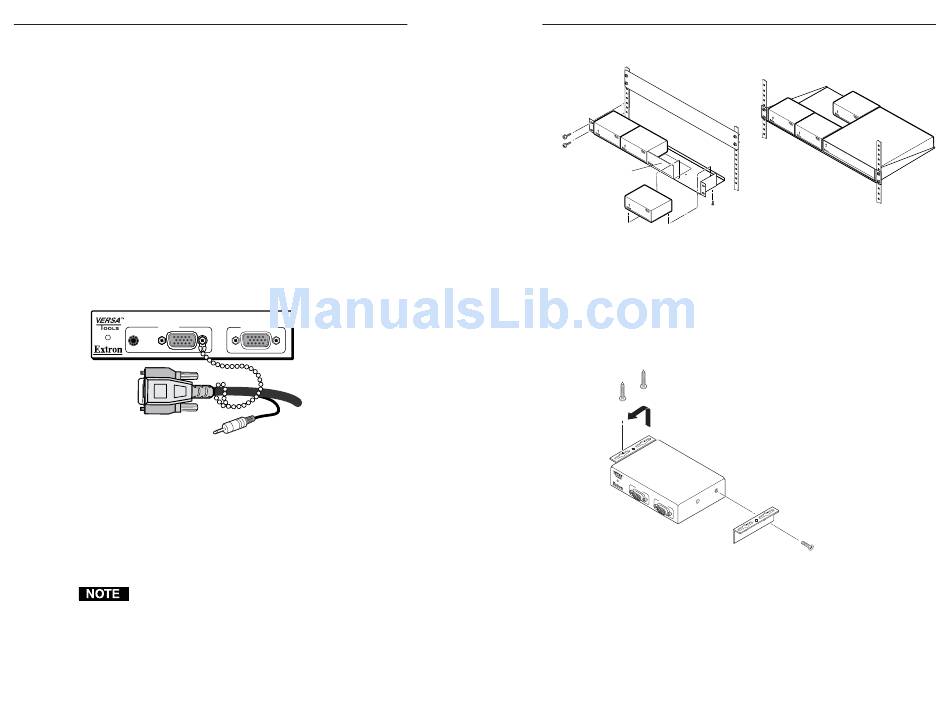

Mounting the P/2 DA2xi MT on a rack shelf
Furniture mounting
For optional furniture mounting, mount the unit using the
mounting kit MBU 125 (part #70-077-01, standard with the
P/2 DA2xi MT) as follows:
1. Attach the mounting brackets to the distribution amplifier
with the provided machine screws, as shown below.
IN P
U T
M O
N IT
O R
Furniture mounting
2. If feet were previously installed on the bottom of the unit,
remove them.
3. Hold the unit with the attached brackets against the
underside of the table or other furniture. Mark the location
of the screw holes of the bracket on the mounting surface.
Drill 3/32" (2 mm) diameter pilot holes, 1/4" (6.3 mm) deep
4.
in the mounting surface at the marked screw locations.
Universal Rack Shelf
DIS
TR IBU
TIO
N AM
PL IFI
ER
DIS
TR
IBU TIO
N AM
PL
IFI ER
DIS
TR
IBU TIO
N AM
PL
IFI ER
M DA
DIS
TRI BU SE
TIO RI ES
N AM PLI
FIE
R
