Comnet CNFESFPMCPOE30/M Installation And Operation Manual

This manual serves the following
ComNet Model Numbers:
CNFE1003POEM/M
CNFE1003POEMHO/M
CNFE1003POES/M
CNFE1003POESHO/M
CNFE1005POEM/M
CNFE1005POEMHO/M
CNFE1005POES/M
CNFE1005POESHO/M
CNFE1004APOEM/M
CNFE1004BPOEM/M
CNFE1004APOEMHO/M
CNFE1004BPOEMHO/M
CNFE1004APOES/M
CNFE1004BPOES/M
CNFE1004APOESHO/M
CNFE1004BPOESHO/M
CNFE1002APOEM/M
CNFE1002BPOEM/M
CNFE1002APOEMHO/M
CNFE1002BPOEMHO/M
CNFE1002APOES/M
CNFE1002BPOES/M
CNFE1002APOESHO/M
CNFE1002BPOESHO/M
CNFESFPMCPOE30/M
CNFESFPMCPOE60/M
INSTALLATION AND OPERATION MANUAL
CNFE100(X) PoE Series
10/100 MBPS ETHERNET FIBER OPTIC
MEDIA CONVERTER WITH 30W OR 60W POE+

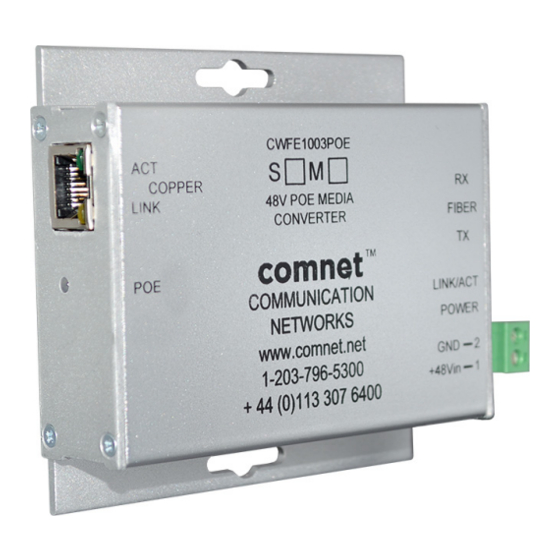

The ComNet CNFE100(X)POE(M,S)/M Series 10/100Mbps Ethernet media converters
™
provide full-duplex fiber optic transmission of a single channel of 10/100BASE-T(X) data
through multimode or single mode optical fiber. Type ST, SC or SFP optics are available.
They provide full compliance with IEEE 802.3at as Power Sourcing Equipment (PSE),
with a maximum power of 30 watts in Mode A or Mode B, making them ideal for those
applications where the remote equipment draws significant power. A higher output 60
watt model is available.
Mode A and mode B are selected by the media converter automatically. The Ethernet
electrical interface auto-negotiates to either 10 or 100Mbps without the need for any
user selection, and the 100BASE-FX optical interface operates at 100Mbps.
LED indicators are provided for rapidly ascertaining the operating status of the
device. See Figure 13 on Page 8 for an explanation of the LED Indicators.
Packaged in a rugged, compact sized housing, these units are designed for shelf or
stand-alone mounting, or may be DIN-rail mounted by the addition of ComNet model
DINBKT2 Adaptor plate kit. See Figure A on Page 9 for mounting instructions.
See Figures 1 – 15 for complete installation instructions.
INS_CNFE100(X) POE SERIES_REVA
04/25/13
PAGE 1
