Summary of Contents for CYP CPLUS-VPE2DD

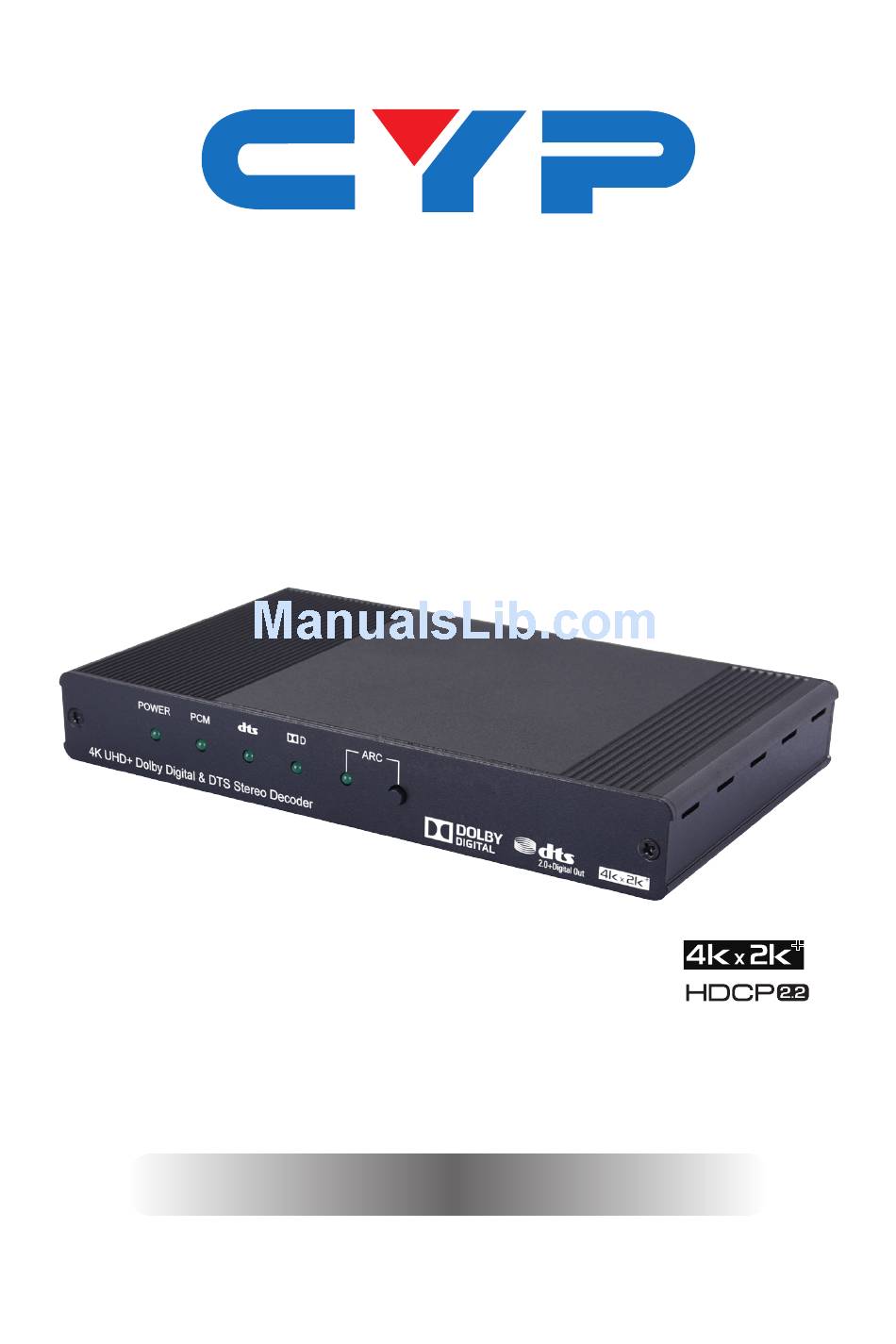

- Page 1 CPLUS-VPE2DD 4K UHD+ Dolby Digital & DTS Stereo Decoder Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..............1 2. Applications ..............1 3. Package Contents ............1 4. System Requirements ..........1 5. Features ................ 2 6. Operation Controls and Functions ......3 6.1 Front Panel .............. 3 6.2 Rear Panel ............... 4 6.3 Virtual COM Port Settings &... -
Page 6: Introduction
1. INTRODUCTION This 4K UHD HDMI with Dolby® Digital/DTS® Stereo Audio Decoder supports the transmission of high bandwidth (18Gbps) video and allows the associated audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance. -
Page 7: Features
• Audio receiving equipment such as audio amplifiers or powered speakers. • The use of “Premium High Speed HDMI” cables is highly recommended. 5. FEATURES • HDMI input and output with 18Gbps (600MHz) 4K UHD support • DVI 1.0 compliant with the use of an HDMI-DVI adaptor •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER 4K UHD+ Dolby Digital & DTS Stereo Decoder POWER LED: This LED will illuminate to indicate the unit is on and receiving power. PCM LED: This LED will illuminate when LPCM audio is detected on the HDMI input. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO OUT HDMI IN HDMI OUT HDMI SPDIF EDID SERVICE AUDIO DC 5V BYPASS/ STD/ COAX BYPASS/ OPTICAL 9 10 HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output. -
Page 10: Virtual Com Port Settings & Commands
SERVICE: This slot is for EDID management, control and firmware update use. Connect directly to your PC/laptop using a standard Mini-USB cable to connect using the PC software or to send commands (via virtual COM port). DC 5V: Plug the 5V DC power adapter into the unit and connect it to an AC wall outlet for power. - Page 11 Commands: Command Name Description Parameters SET UNIT POWER OFF NONE SET UNIT POWER ON NONE GET POWER STATUS NONE SOURCEDET SHOW INPUT NONE INFORMATION SINKINFO SHOW SINK NONE INFORMATION HDCPIN SET/SHOW INPUT HDCPIN N [N=1~3, ?] HDCP STATUS 1: FOLLOW IN 2: FOLLOW OUT 3: APPLE MODE ?: GET STATUS...
-
Page 12: Edid Manager
6.4 EDID Manager This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use. - Page 13 Save/Upload/Analysis: EDIDs may be saved to a PC, uploaded from a PC or analyzed. Any EDID from the unit or the connected HDMI display can be • saved to your PC as a *.bin file by selecting the EDID source from the drop down menu and then clicking the “Save”...
- Page 14 EDID Creator Tab Click on the EDID Creator tab to begin designing a new EDID from scratch (select the “New” icon), to modify an existing EDID stored on the PC as a .bin file (select the “Load” icon) or to edit an EDID copied from the unit via the EDID Analyzer’s edit option.
- Page 15 The following tabs provide access to a wide range of EDID information which can be edited: Descriptor: This tab allows for the editing of various description • and information fields within the EDID file such as Manufacturer Name, Monitor Name, etc. PC Timing and SD/HD/UHD: These tabs allow for the selection of •...
-
Page 16: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input AUDIO OUT HDMI IN HDMI OUT HDMI SPDIF EDID SERVICE AUDIO DC 5V COAX BYPASS/ BYPASS/ STD/ OPTICAL Power Supply Digital Optical Audio Output HDMI Output Analog Stereo Audio Output Amplifier Active Speakers UHD TV Active Speakers... -
Page 17: Specifications
8. SPECIFICATIONS Video Bandwidth 18Gbps (600Mhz) Input Ports 1 x HDMI, 1 x Mini-USB (service & control only) Output Ports 1 x HDMI 2 × RCA (Analog Audio) 1 x Coaxial S/PDIF (Digital Audio) 1 x Optical S/PDIF (Digital Audio) Power Supply 5V / 2.6A DC ( US/EU standards, CE/FCC/ UL certified) -
Page 18: Video Supports Specification
8.1 Video Supports Specification DVI and HDMI Supported Resolutions (Hz) Input Output 640x480@60/72/75/85 √ √ 720x400@85 √ √ 800x600@56/60/72/75/85 √ √ 1024x768@60/70/75/85 √ √ 1280x720@60 √ √ 1280x768@60/75/85 √ √ 1280x800@60 √ √ 1360x768@60 √ √ 1440x900@60 √ √ 1600x900@60 √... -
Page 19: Audio Support Specification
8.2 Audio Support Specification Output Input Level THD+N Frequency Crosstalk Level/ Output Vrms/ (A-Weight) Response >90dB <-90dB Freq. dB±10% Analog 2 Vrms < 0.01% ±1 dBFS >104dB <-110dB Coaxial 0 dB < 0.00001% ±1 dBFS >141dB <-164dB HDMI 0dB/1kHz Optical 0 dB <... - Page 20 9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control COAX Coaxial Digital Theater System Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Optical Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce Blanking)
- Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-VPE2DD...
