Map Tools include the Add
Submap and Add GoTo buttons, as
well as the layering tool buttons.
By default, alignment tool buttons are
displayed at the bottom of the primary window.

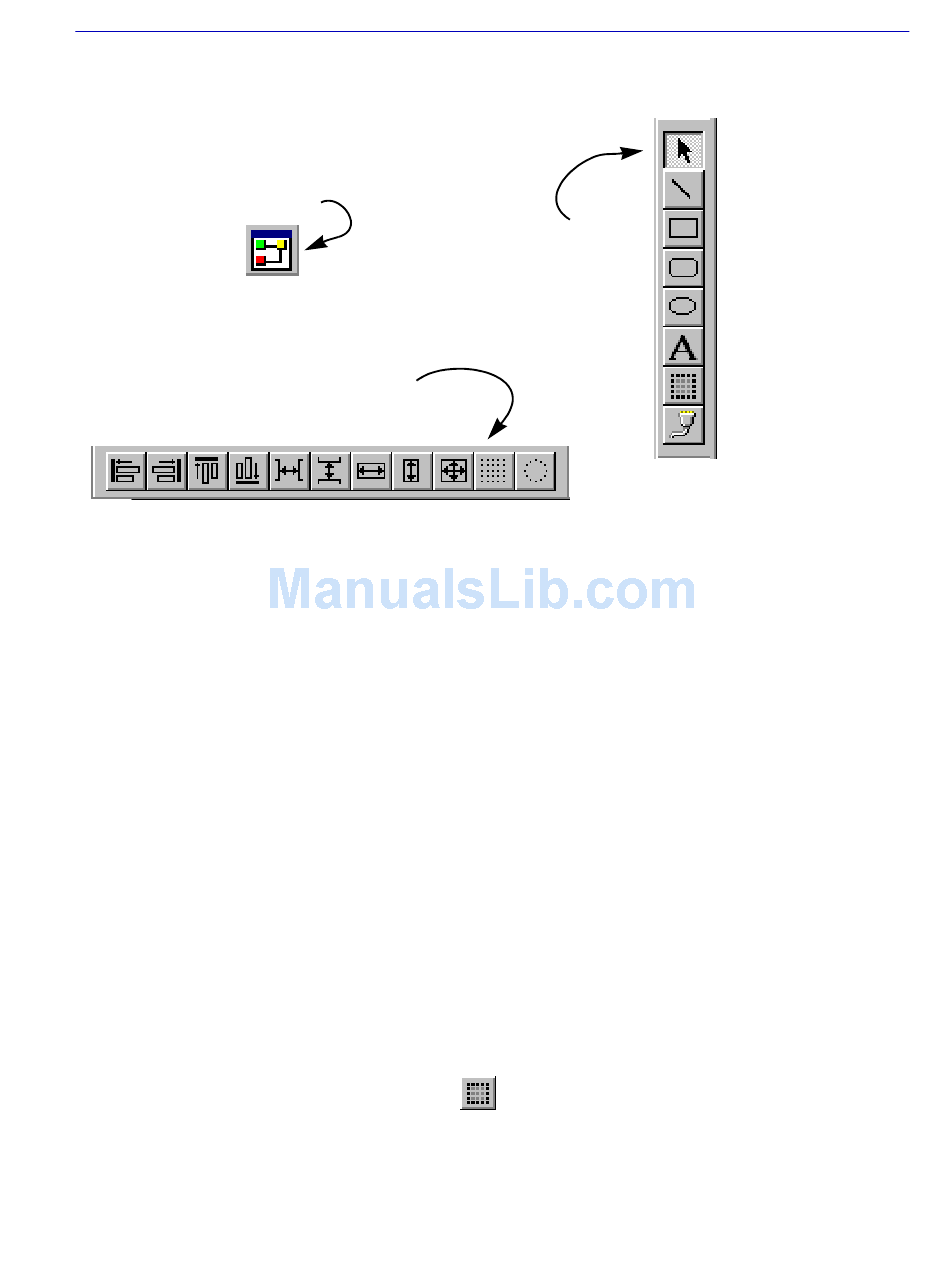

Figure 6-20. Drawing, Alignment, and Layering Tools via the Toolbar
You can also annotate any object in your maps by adding an Object Note; the following
sections describe how to add non-management graphic objects to your map, as well as
how to add an Object Note to any object.

Using Non-manageable Symbols

In addition to the device icons described in the previous sections, you can also add symbol
icons to your map to represent network devices you cannot — or choose not to — manage
via NetSight Element Manager. A library of predefined symbols are provided, or you can
define your own symbols by adding additional bitmap images.
Symbols — even those which look just like device icons — do not report status and do not
provide access to management.

Placing a Symbol Icon

To add an existing symbol to your map:
1. If necessary, open or activate the map to which you wish to add a symbol.
2. Click the Symbol icon
Customizing Your Map
By default, drawing
tool buttons are
displayed vertically
on the right side of
the primary window.
None of the Draw toolbar options will be available unless at least one map is
open and active.
or
Select Insert—>Symbol from the primary window menu bar.
from the toolbar.
Creating Network Maps
Pointer Tool
Line Tool
Rectangle Tool
Rounded Rectangle
Ellipse Tool
Text Tool
Symbol Tool
Connection Tool
6-27
