Proxy Server Configuration

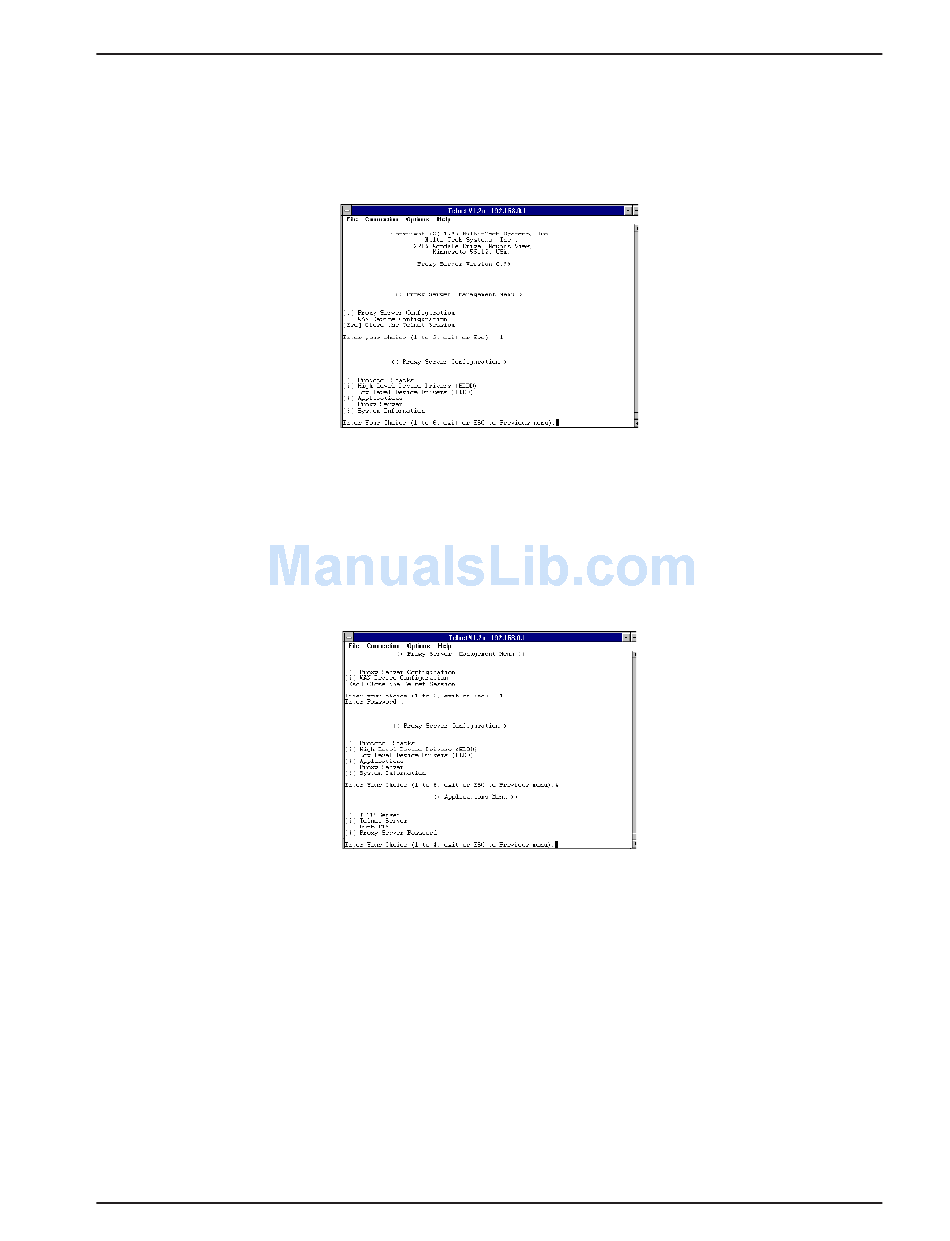

The Proxy Server Configuration option allows you to view and change parameters on the protocol
stacks, high and low level device drivers, enable or disable the supported servers, change proxy
applications, or view system information. If the password option is enabled, you will be prompted for a
password.
To select an option, enter the number of the option and hit the Enter key. For example, to select the
Protocol Stacks option, enter 1 and hit the Enter key. For details on a parameter, refer to the on-line
helps and Chapter 5 of this manual.

Applications

The Applications option from the proxy server configuration menu allows you to enable or disable
various servers. Choosing the Applications option (Option 4) in the menu displays the various
servers.
The Applications menu displays three server options for your choice. To enable or disable a server,
choose the server option number and hit the Enter key. Then choose either option 1 to enable the
server or option 2 to disable the server.
The following is a description of each server and its use.
TFTP Server - The TFTP server is used for configuration and firmware updates across the IP
internetwork. TFTP is a file transfer protocol that uses UDP and provides a simple method for
transfering files between two nodes (the server and client).
Telnet Server - The Telnet server allows an authorized Telnet client to remotely access the Telnet
server to dial out, view router configuration and statistics, modify the router configuration, or remotely
modify the user database.
Dumb TTY - The Dumb TTY allows a remote user to connect to the ProxyServer's command port for
configuration and management of the ProxyServer.
