Changing Proxy Applications

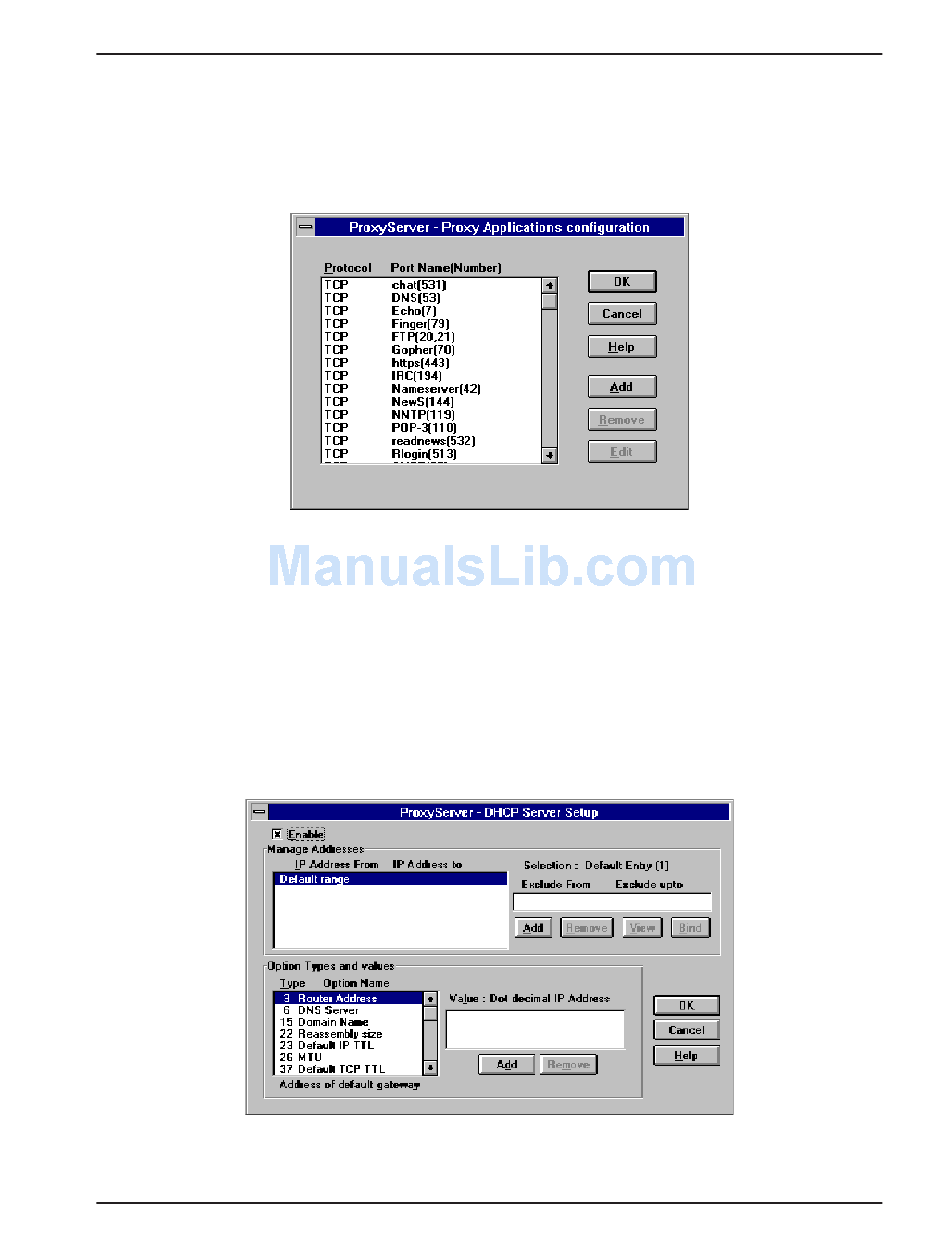

The most common proxy applications are loaded on your ProxyServer and are shown in the Proxy
Applications Configuration dialog box. To add additional applications, refer to the assigned numbers
described in RFC 1700 at ftp://ds.internic.net/rfc/rfc1700.txt on your WEB.

Adding Client IP Addresses for the DHCP Server

The DHCP Server allows you to customize each client PC configuration from one central point. You
can establish a range of client addresses in the Manage Addresses dialog box. You can then exclude
specific addresses from that range in the Exclude From/Exclude Up To dialog box. You can also Add,
Remove, View and Bind addresses in this dialog box.
In the Options Types and Values dialog, you can customize the configuration of the client platform.
The Option Type and Name are displayed in the left dialog and the values for that option are
displayed in the right dialog. You can Add and Remove values using the respective buttons.
MTPSR3-200
Chapter 4 - ProxyServer Software
29
