Setup Menu - Multitech ProxyServer MTPSR3-200 User Manual

Setup Menu

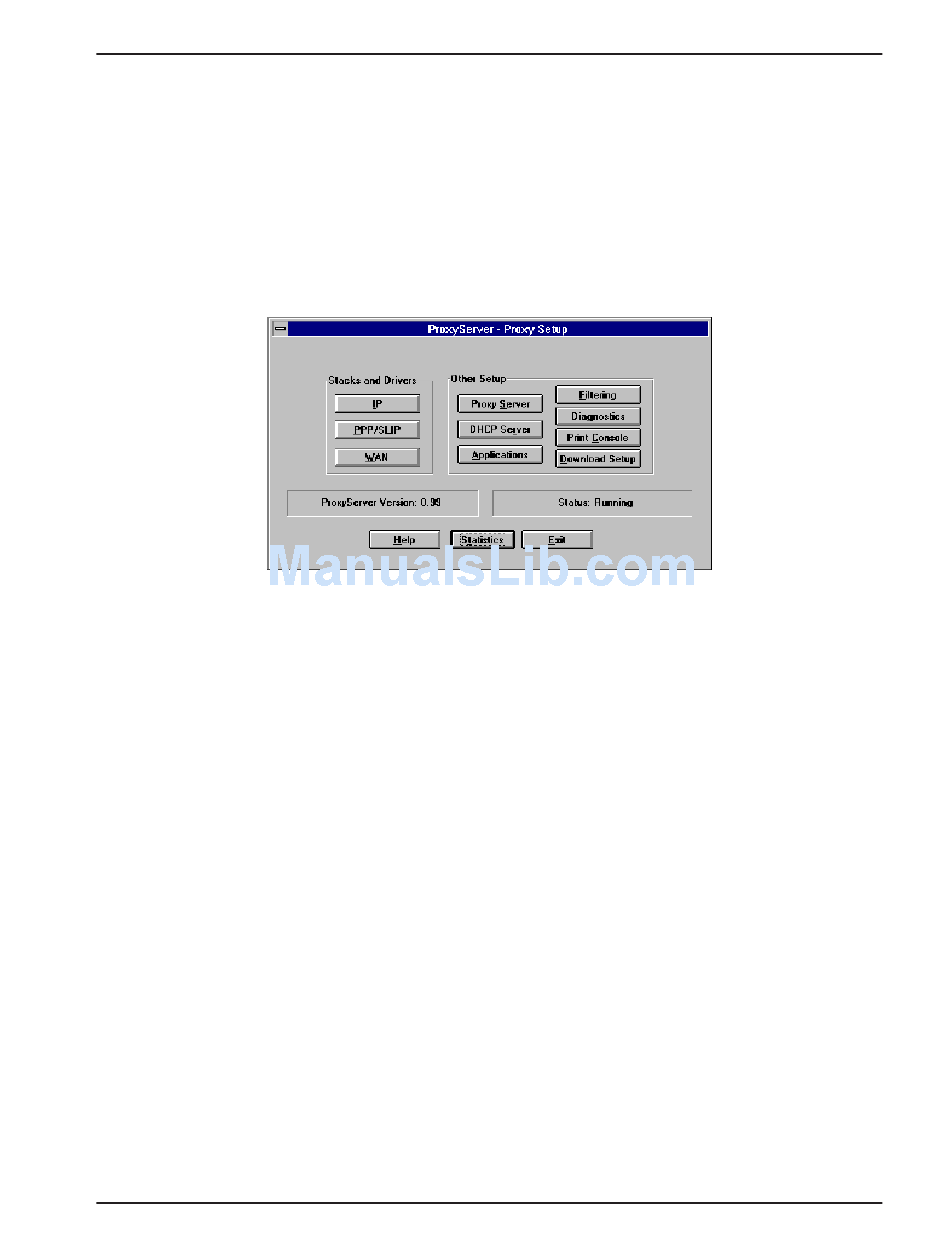

The Proxy Server Setup menu organizes your configuration process into two categories: Stacks and
Drivers, and Other Setup. The Stacks and Drivers define the Proxy Server IP Protocol stack and the
device drivers define how the WAN is used, i.e., Point-to-Point Protocol (PPP), MultiLink PPP,
(MLPPP), or Serial Line IP Protocol (SLIP) .
The other Setup group defines the proxied applications, the Dynamic Host Configuration Protocol
(DHCP) for assigning IP parameters to the workstations on the LAN, applications such as TFTP for
transferring files between two nodes, telnet for terminal emulation at a remote workstation, and
filtering of data packets for getting through the link.
Certain options are enabled depending on the state of the target. If no ProxyServer (target) is found,
click on the Configuration Port Setup icon in the ProxyServer program group, specify the right local
port parameters and retry running this application. You can also connect to the target through a dialup
modem.
ProxyServer setup also has a console terminal for displaying various debugging messages output
from the target. You can control the display of these messages using this application. Normally you
should turn off the display of all messages for better performance of the router.
MTPSR3-200
Chapter 4 - ProxyServer Software
25
