ProxyServer User Guide

Adding Additional RAM

A second SIMM connector is provided for adding addition RAM to the ProxyServer. The procedure for
adding additional RAM is provided in Table 2-2.
Step Procedure
1 Ensure that the external power supply is disconnected from the ProxyServer.
2 Turn the ProxyServer upside down and remove the two cabinet mounting screws midway back,
along the edges of the base.
3 Turn the ProxyServer right side up and tilt the back down slightly and the base will slide out of the
cabinet.
4 Place the unit with the LEDs facing you.
5 Slant the SIMM at a 45
with the center tab on the SIMM connector.
6 Gently press down on the ends of the SIMM until the two latches latch over the SIMM and the
two vertical pins enter the holes in the SIMM.
7 Slide the base back into the cabinet with the LEDs going toward the front and the back side
grounding tabs pressing against the side of the cabinet.
8 Turn the ProxyServer upside down and replace the two cabinet mounting screws that were
removed in step 2.
9 Turn the ProxyServer right side up and return to Table 2-1 to connect the cables.
18
Table 2-2. Adding Additional RAM Procedure
Cabinet
Mounting
Screws

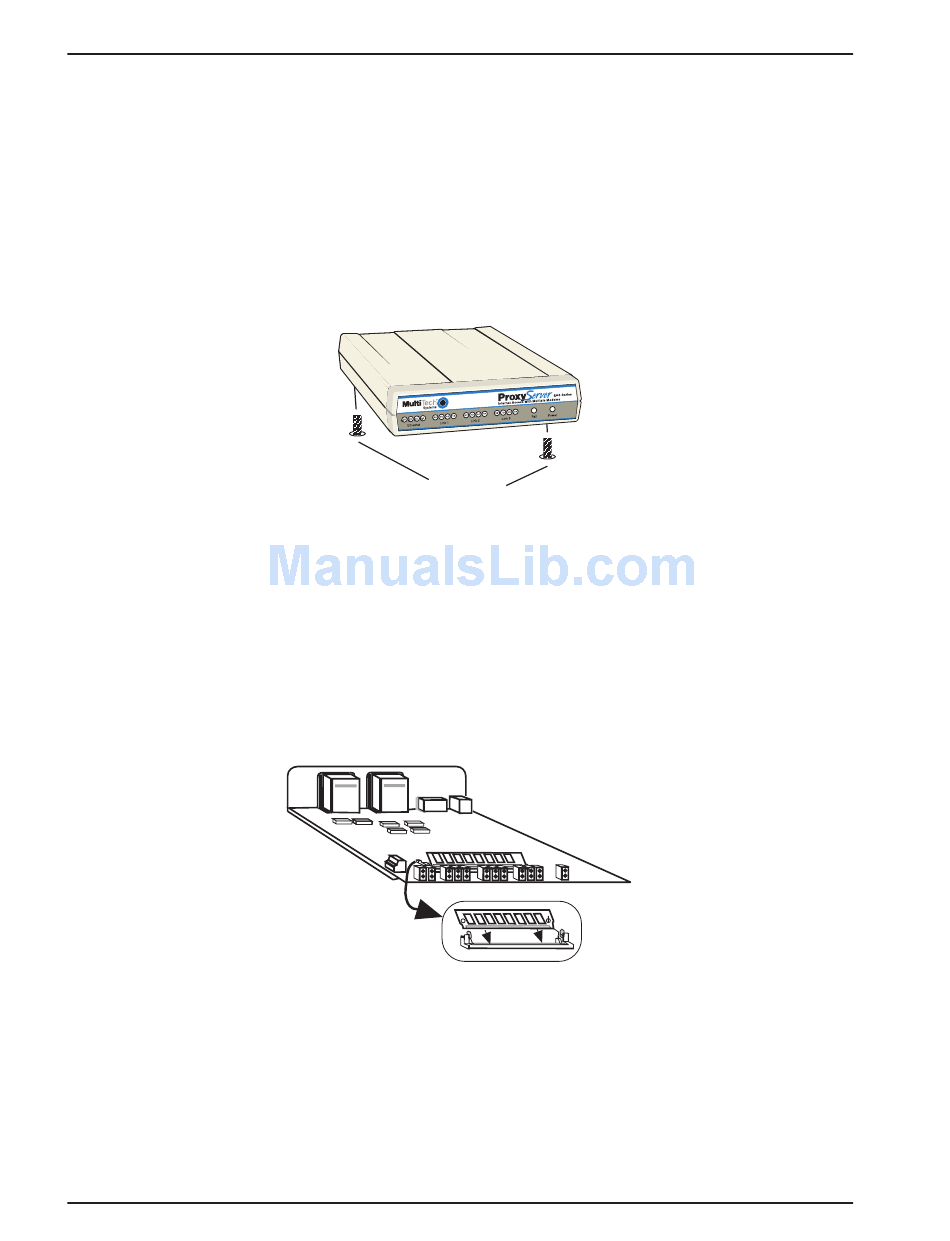

Figure 2-3. Cabinet Mounting Screws
0 angle to the back of the base and align the centering notch of the SIMM
Figure 2-4. Installing a SIMM
MTPSR3-200
