ProxyServer User Guide

Introduction

This chapter covers procedures for loading the software and configuring your ProxyServer.

Loading your Software

1 Turn on your PC connected to the Command Port of your ProxyServer and run Windows®.
2 Create a backup copy of your ProxyServer software diskette before you install the software.
Store the master diskette in a safe place and install the ProxyServer software using the backup
copy.
3 Insert the Proxy Server diskette into the disk drive on the pc connected to the Command Port.
4 Win3.1 users - you can access Run by clicking on the File menu in Program Manager and then
clicking on Run.
Win95 users - click on the Start box and then click on Run.
5. In the Run dialog box, type a:\install or b:\install (depending on the location of your floppy disk
drive) in the Command Line field and then click on OK.

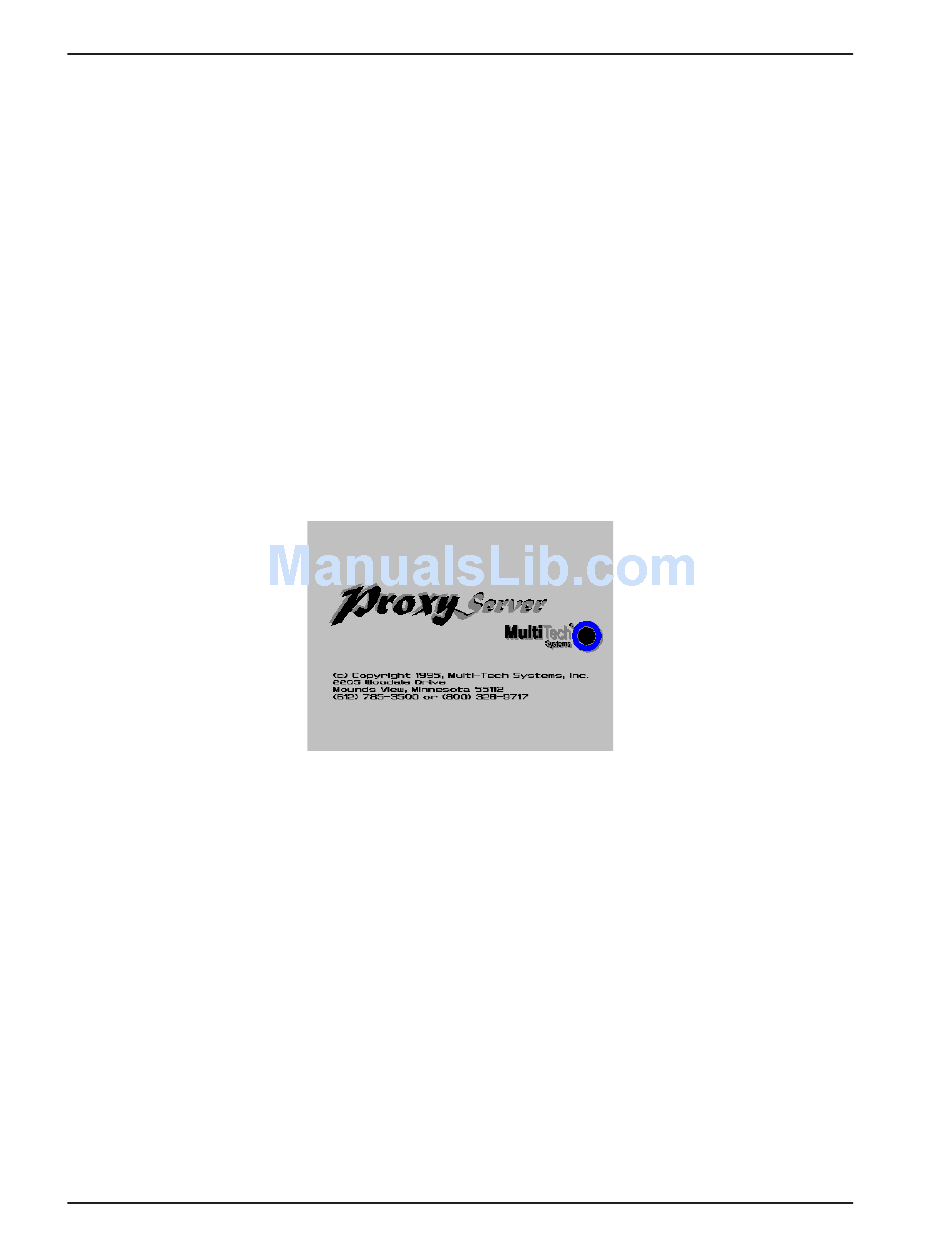

6. Follow the on-screen instructions to install the Proxy Server software.
IP Port Configuration
This dialog allows for the configuration of IP parameters that are generally applicable to IP Proxying
on all ports.
7. The default LAN IP address has to be changed to your unique LAN address.
8. If your ISP dynamically assigns the WAN port IP addresses, do nothing and proceed to the next
step.
If a static WAN IP address needs to be assigned, highlight WAN 1, then click on the ISP assigns
Dynamic Address check box to disable the feature, then click on the IP Address field and enter
your IP WAN 1 address. Also, enter the Net Mask for WAN 1.
Highlight WAN 2 and repeat the above process.
Highlight WAN 3 and repeat the above process.
20 MTPSR3-200
