6.1

Connecting to a Balanced Audio Acceptor

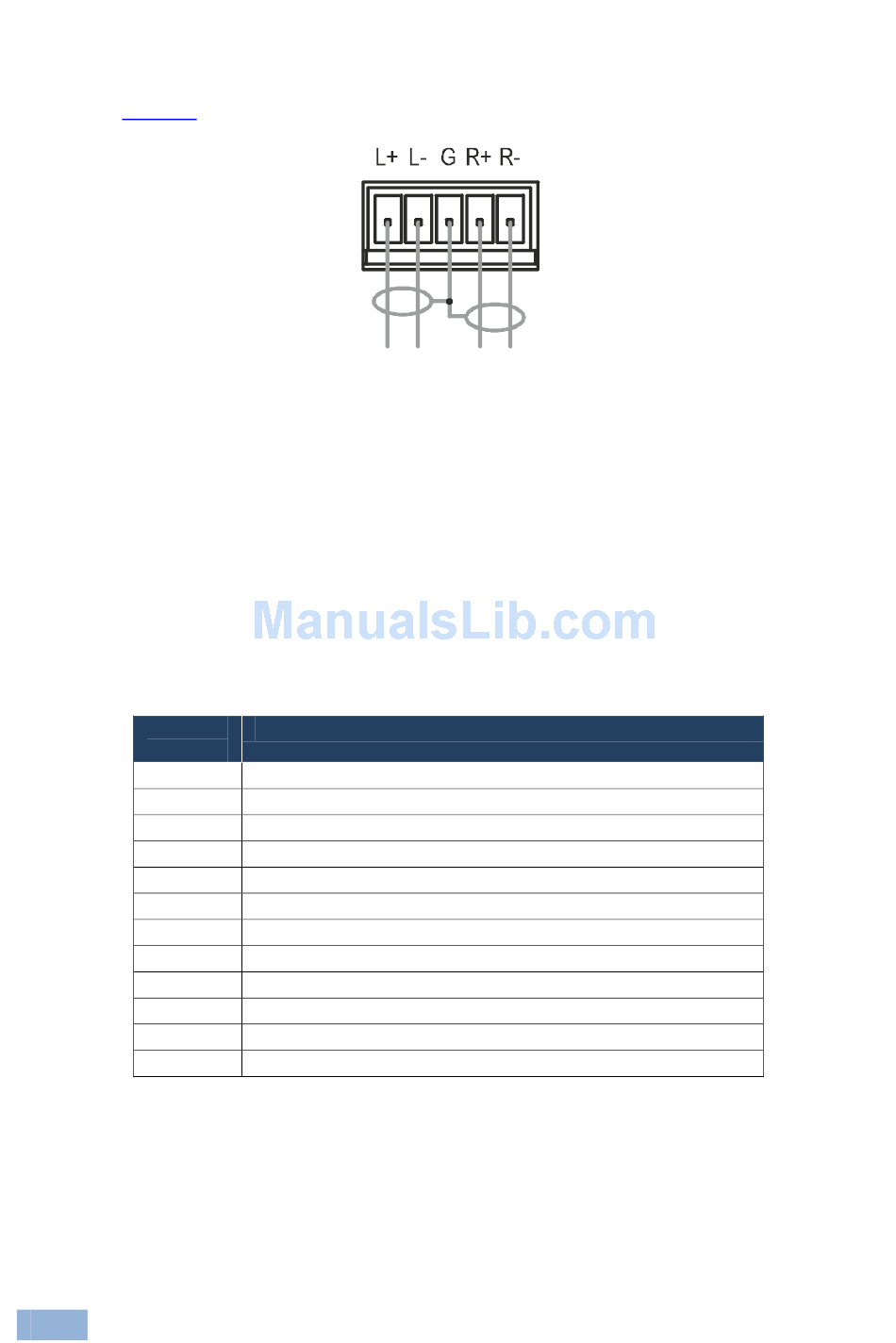

Figure 4

Figure 4: Balanced Stereo Audio Output Connection

6.2 Connecting Remote Contact Input and Output Selection
Switches
You can connect remote, contact closure input selection switches to the REMOTE
terminal block on the rear panel of the VP-81SIDN. Remote input selection
switches provide the ability to remotely activate the inputs and an output.
The following table lists the remote-contact, terminal block connections.
Terminal
Number
1
2
3
4
5
6
7
8
9
10
11
G
12
illustrates how to wire devices to the balanced audio output.
Description
Connect to ground to select input 1
Connect to ground to select input 2
Connect to ground to select input 3
Connect to ground to select input 4
Connect to ground to select input 5
Connect to ground to select input 6
Connect to ground to select input 7
Connect to ground to select input 8
Connect to ground to select input 9
Connect to ground to select input 10
Connect to ground to toggle between output 1 and output 2
Ground
VP-81SIDN - Connecting the VP-81SIDN 8x1 Digital Step-In Switcher
