6
Connecting the VP-81SIDN 8x1 Digital Step-
In Switcher

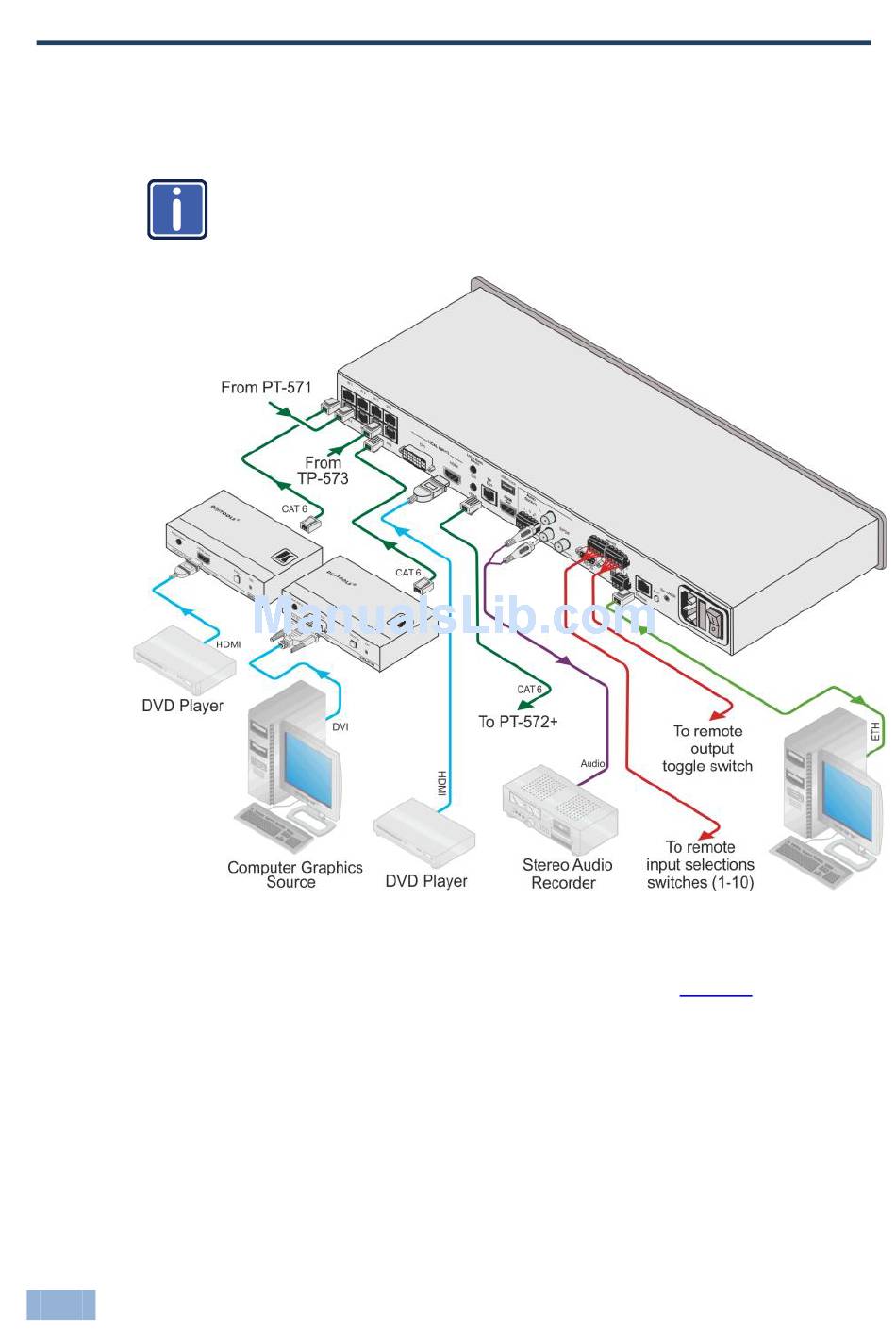

Figure 3: Connecting the VP-81SIDN 8x1 Digital Step-In Switcher
To connect the VP-81SIDN as illustrated in the example in
1. Connect up to eight remote Step-in Commanders (for example, the SID-H
and SID-DVI Step-In Commander panels up to 50m (164ft) away) or TP
transmitters (for example, the PT-571 and TP-573) to the VP-81SIDN RJ-45
TP INPUT connectors.
10
Switch off the power to all devices before connecting them to your
VP-81SIDN. After connecting your VP-81SIDN, connect its power and
then switch on the power to each device.
VP-81SIDN - Connecting the VP-81SIDN 8x1 Digital Step-In Switcher
Figure
3:
