Defining the VP-81SIDN 8x1 Digital Step-In Switcher

Figure 1 defines the front panel of the VP-81SIDN.

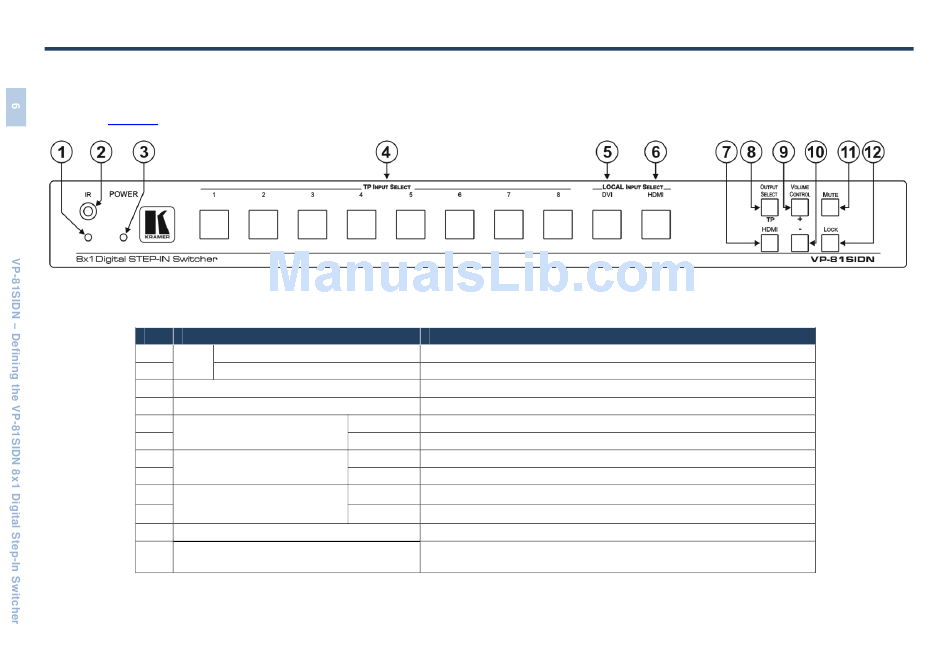

Figure 1: VP-81SIDN 8x1 Digital Step-In Switcher Front Panel

# Feature
1 LED
IR
2 Sensor
3 POWER LED
4 TP INPUT SELECT Buttons (1 to 8)
5
LOCAL INPUT SELECT
Buttons
6
7
OUTPUT SELECT Buttons
8
9
VOLUME CONTROL Buttons
10
11 MUTE Button
12 LOCK Button
Function
Lights yellow when receiving an IR signal
Receives the signal transmitted by an IR remote control
Lights green when the device is powered on
Press to select one of the TP inputs
DVI Press to select the DVI input
HDMI Press to select the HDMI input
HDMI Press to select the HDMI output
TP Press to select the TP output
+ Press to increase the analog audio output volume
–
Press to decrease the analog audio output volume
Press to mute the external audio output
Press and hold to lock the front panel buttons. Press and hold again to
unlock the buttons
