  • Page 1: User Manual

    Vertrieb von CAMBOARD Electronics Kramer Electronics, Ltd. USER MANUAL Model: VP-81SID www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...

  • Page 2: Table Of Contents

    Connecting to the VP-81SID via the RS-232 Port Connecting to the VP-81SID via the RS-485 Port Connecting to the VP-81SID via the Ethernet Port Operating the VP-81SID Locally via the Front Panel Buttons Selecting an Input Muting the Input when using Step-In Commanders...
  • Page 3 Figure 4: Balanced Stereo Audio Output Connection Figure 5: Remote Input Selection Switch Wiring Figure 6: RS-485 Termination DIP-switch Figure 7: Control of Multiple VP-81SID Devices via RS-232 and RS-485 Figure 8: Local Area Connection Properties Window Figure 9: Internet Protocol (TCP/IP) Properties Window...
  • Page 4 Vertrieb von CAMBOARD Electronics Contents Tables Table 1: VP-81SID 8x1 Digital STEP-IN Switcher Front Panel Features Table 2: VP-81SID 8x1 Digital STEP-IN Switcher Rear Panel Features Table 3: Remote Contact Terminal Block Connections Table 4: Main Window Features Table 5: Button Characteristics...

  • Page 5: Introduction

    CAMBOARD Electronics Introduction Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded...
  • Page 6 Vertrieb von CAMBOARD Electronics Getting Started www.camboard.de Tel. 07131 911201 ce-info@camboard.de KRAMER: SIMPLE CREATIVE TECHNOLOGY Fax 07131 911203...

  • Page 7: Overview

    Overview Overview The VP-81SID can route one of eight TP (Twisted Pair), a DVI or an HDMI input to either a TP or an HDMI output. Input selection can also be controlled remotely; • Using Step-In modules (for example, the SID-DP) •...

  • Page 8: Defining Edid

    It delivers the highest high-definition image and sound quality. Note that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee. In particular, HDMI • Provides a simple...

  • Page 9: About Hdcp-General Description

    The Power Connect™ feature here means that digital Step-In Commanders (for example, the SID-DP and SID-DVI) do not require an independent power supply if the distance between the VP-81SID and the Step-In Commander does not exceed 50m (164ft). The Power Connect™ feature applies as long as the cable can carry power.

  • Page 10: Defining The Vp-81Sid 8X1 Digital Step-In Switcher

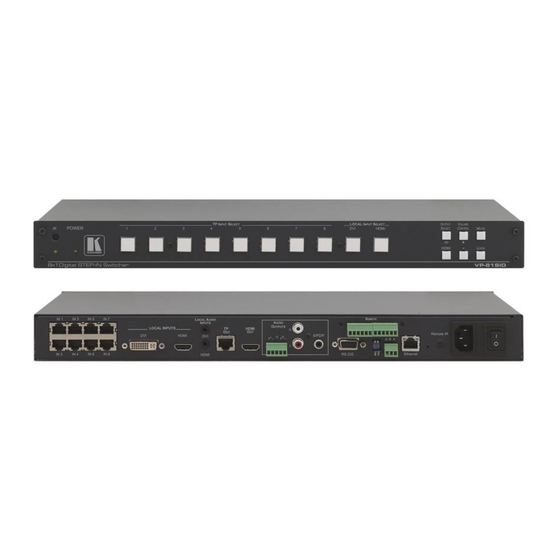

    Defining the VP-81SID 8x1 Digital STEP-IN Switcher Figure 1 Table 1 define the front panel of the VP-81SID 8x1 Digital STEP-IN Switcher. Figure 1: VP-81SID 8x1 Digital STEP-IN Switcher Front Panel Table 1: VP-81SID 8x1 Digital STEP-IN Switcher Front Panel Features...

  • Page 11: Figure 2: Vp-81Sid 8X1 Digital Step-In Switcher Rear Panel

    Defining the VP-81SID 8x1 Digital STEP-IN Switcher Figure 2 Table 2 define the rear panel of the VP-81SID 8x1 Digital STEP-IN Switcher. Figure 2: VP-81SID 8x1 Digital STEP-IN Switcher Rear Panel Table 2: VP-81SID 8x1 Digital STEP-IN Switcher Rear Panel Features...
  • Page 12 Up = Off, Down = On. Default = On DIP-Switch 2: For the use of Kramer service personnel only RS-485 3-way Terminal Block Connect to RS-485 port on a remote controller or another VP-81SID. Connect: G to Ground, A to A, and B to B (see Section 6.4)

  • Page 13: Using The Ir Transmitter For The Vp-81Sid

    Defining the VP-81SID 8x1 Digital STEP-IN Switcher 4.1 Using the IR Transmitter for the VP-81SID You can use the RC-IR3 IR transmitter to operate the VP-81SID via the built-in IR receiver on the front panel or, instead, via an optional external IR receiver .

  • Page 14: Installing In A Rack

    Vertrieb von CAMBOARD Electronics Installing in a Rack Installing in a Rack This section describes the preparation and installation of the unit in a rack. www.camboard.de Tel. 07131 911201 ce-info@camboard.de KRAMER: SIMPLE CREATIVE TECHNOLOGY Fax 07131 911203...

  • Page 15: Connecting The Vp-81Sid 8X1 Digital Step-In Switcher

    3. Connect an HDMI video source to the LOCAL INPUTS HDMI connector. 1 Be sure that the power is switched off to each device before connecting it to your VP-81SID. After connecting all the devices to your VP-81SID, switch on the power to the VP-81SID, and then switch on the power to each device...

  • Page 16: Connecting To A Balanced Audio Acceptor

    We therefore recommend that you turn off the VP-81SID and/or the acceptor. Note: When using the PT-572+ in conjunction with the VP-81SID do not connect the 12V power supply to the PT-572+.

  • Page 17: Figure 5: Remote Input Selection Switch Wiring

    Connected as shown, pressing switch 1 causes input 1 on the VP-81SID to be the active input, and pressing switch 8 causes input 8 to be the active input. Pressing switch A causes the output selection to toggle between the TP and HDMI outputs.

  • Page 18: Connecting To The Vp-81Sid Via The Rs-232 Port

    To connect to the VP-81SID via RS-232: • Connect the RS-232 9-pin D-sub rear panel port on the VP-81SID unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC 6.4 Connecting to the VP-81SID via the RS-485 Port...

  • Page 19: Figure 6: Rs-485 Termination Dip-Switch

    DIP-switch positions. Figure 6: RS-485 Termination DIP-switch DIP-switch 1 sets the RS-485 bus termination of the VP-81SID. Only the first and last physical units on the RS-485 bus must be terminated, all others must be unterminated. Moving the DIP-switch up turns the termination off (default), moving the switch down enables the termination.

  • Page 20: Connecting To The Vp-81Sid Via The Ethernet Port

    IP address. 6.5.1 Connecting Directly to the Ethernet Port You can connect the Ethernet port of the VP-81SID to the Ethernet port on your PC via a crossover cable with RJ-45 connectors. This type of connection is recommended for identification of the factory...

  • Page 21: Figure 8: Local Area Connection Properties Window

    Vertrieb von CAMBOARD Electronics Connecting the VP-81SID 8x1 Digital STEP-IN Switcher 3. Double-click Network Connections. 4. Right-click, and from the menu select Properties. The Local Area Connection Properties window appears. Figure 8: Local Area Connection Properties Window 5. Select Internet Protocol (TCP/IP) (see Figure 6.

  • Page 22: Operating The Vp-81Sid Locally Via The Front Panel Buttons

    8. Click OK. 6.5.2 Connecting via a Network Hub, Switch, or Router You can connect the Ethernet port of the VP-81SID to the Ethernet port on a network hub, switch, or router, via a straight through cable with RJ-45 connectors.

  • Page 23: Selecting An Output

    1. Press the Mute button on the front panel of the VP-81SID. The audio is muted and the button lights. 2. Press the Mute button on the front panel of the VP-81SID a second time. The audio is unmuted and the button no longer lights.

  • Page 24: Operating The Vp-81Sid Remotely

    Step-In Software for the first time displays a window similar to that shown in Figure The VP-81SID can operate in either the secure mode or the unsecure mode. The factory default mode is unsecure. To change the mode, see Section 14.12.33.

  • Page 25: Figure 10: Step-In Software Main Window

    Vertrieb von CAMBOARD Electronics Operating the VP-81SID Remotely Figure 10: Step-In Software Main Window Table 4: Main Window Features Feature Function Connect/Disconnect Button Click to connect to or disconnect from the device (see Section 8.1.4) Selected Input Buttons Click to select an input. The selected input button is highlighted...

  • Page 26: Figure 11: Typical Input Button

    Vertrieb von CAMBOARD Electronics Operating the VP-81SID Remotely Note: When a change is made on the device (for example, a different output is selected), the change is reflected almost immediately in the main window of the Step-in Software, and visa versa.

  • Page 27: Figure 12: Log In Window

    Power cycle the device (Admin only) IR Status Enable or disable the IR control for the device ABOUT Displays the Step-in Software and Kramer company details 8.1.3 Logging in as Admin To log in as admin: 1. Click the Log In button.

  • Page 28: Figure 13: Connection Method Window

    Vertrieb von CAMBOARD Electronics Operating the VP-81SID Remotely 8.1.4 Connecting to the Device To connect to the device: 1. Click the Connect button. The Connection Method window is displayed as shown in Figure Figure 13: Connection Method Window 2. Select the connection method (via Ethernet over a LAN or a serial connection) by clicking the relevant radio button.

  • Page 29: Figure 15: Sid-X1 Input Selection

    Vertrieb von CAMBOARD Electronics Operating the VP-81SID Remotely 2. Click on the required output to select. The switch selection is made and the button changes to solid purple. Note: To switch an input to an output, you can click on either an input or an output first, the order is not important.

  • Page 30: Figure 16: Changing The Output Volume

    Vertrieb von CAMBOARD Electronics Operating the VP-81SID Remotely Figure 16: Changing the Output Volume 2. Drag up to increase or down to decrease the output volume. The volume level changes accordingly. 8.1.8 Muting the Audio Output To mute the audio output: 1.

  • Page 31: Figure 17: Input Button Properties Window

    Vertrieb von CAMBOARD Electronics Operating the VP-81SID Remotely To change an input/output button icon and label: 1. Right-click on the relevant button. The button Input Properties window appears as shown in Figure Figure 17: Input Button Properties Window 2. In the Label text field, enter the required button label.
  • Page 32 Vertrieb von CAMBOARD Electronics Operating the VP-81SID Remotely 2. Click OK. The device is reset. 8.1.13 Setting the IP Network Parameters To set the IP network parameters you must be logged in as Admin. To set the IP network parameters: 1.

  • Page 33: Operating The Vp-81Sid Remotely Via The Embedded Web Pages

    Operating the VP-81SID Remotely via the Embedded Web Pages Operating the VP-81SID Remotely via the Embedded Web Pages The embedded Web pages can be used to remotely operate the VP-81SID using a Web browser and an Ethernet connection. Before attempting to connect: •...

  • Page 34: Figure 19: The Loading Page

    The main switching control Home page is displayed which shows a graphical interpretation of the front panel (see Figure 21). The Web pages let you control the VP-81SID via Ethernet over a LAN. There are four Web pages: www.camboard.de Tel. 07131 911201 ce-info@camboard.de...

  • Page 35: The Vp-81Sid Panel Page

    • The Settings page (see Section 9.5) 9.2 The VP-81SID Panel Page The VP-81SID Panel page lets you perform operational actions, such as, switching inputs/outputs and locking the front panel buttons. Note: Options that are grayed out indicate insufficient user privileges (see Section 9.2.1).

  • Page 36: Figure 22: Logging In

    Vertrieb von CAMBOARD Electronics Operating the VP-81SID Remotely via the Embedded Web Pages Figure 22: Logging In To log in: 1. From the Login as drop-down list, select either User or Admin. 2. In the Password field enter your password.

  • Page 37: The Vp-81Sid Audio Volume Page

    Figure 25: Locking the Front Panel Buttons 9.3 The VP-81SID Audio Volume Page The VP-81SID Audio Volume page lets you adjust the audio output volume. Figure 26: VP-81SID Audio Volume Page To change the volume of the audio output: •...

  • Page 38: The Vp-81Sid Settings Page

    9.5 The VP-81SID Settings Page The VP-81SID Settings page lets you configure the device configuration settings, such as, device name and IP settings. Note: Throughout this section options that are not available for an unauthorized user are grayed out.

  • Page 39: Wiring The Tp Rj-45 Connectors

    im Vertrieb von CAMBOARD Electronics Wiring the TP RJ-45 Connectors Wiring the TP RJ-45 Connectors Table 9 Figure 29 define the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors (note that the cable Ground shielding must be connected/soldered to the connector shield). Table 9: TP PINOUT Figure 29: TP Pinout Wiring...

  • Page 40: Technical Specifications

    43.7cm x 18.1cm x 4.4cm (17.2” x 7.1” x 1.7”) W, D, H rack-mountable WEIGHT: 2.0kg (4.4lbs) approx. ® ACCESSORIES: Power cord, Windows -based Kramer control software, RC-IR3 Infrared Remote Control transmitter OPTIONS: External remote IR receiver cable ; 15m extension cable REMOTE STEP-IN...

  • Page 41: Default Communication Parameters

    50000 Maximum UDP Ports: Maximum TCP Ports: Default EDID Each input on the VP-81SID is loaded with an EDID detected on output. If no output EDID is detected, factory default will be used. Monitor Model name....VP-81SID Manufacturer Name = KRM...
  • Page 42 Horizontal Active Pixel = 1280 Vertical Active Pixel = 960 Image Aspect Ratio = 4:3 Refresh Rate = 60 *** Detail Timings/Monitor Descriptors *** --- BK0.Detail Timing1 --- www.camboard.de Tel. 07131 911201 ce-info@camboard.de KRAMER: SIMPLE CREATIVE TECHNOLOGY Fax 07131 911203...
  • Page 43 im Vertrieb von CAMBOARD Electronics Default EDID Pixel Clock(MHz) = 74.250 H/V Active = 1280 / 720 H/V Blanking = 370 / 30 H/V Sync Offset = 110 / 5 H/V Sync Width = 40 / 5 H/V Image Size(mm) = 519 / 324 Scanning Mode = Non interlace Stereo = Normal display no stereo Sync Type = Digital Seperate...
  • Page 44 58 //DF 28 25 00 E8 12 11 00 00 //E7 98 01 1D 00 BC 52 D0 1E //EF 20 B8 28 55 40 E8 12 11 //F7 00 00 1E 00 00 00 00 4F //FF www.camboard.de Tel. 07131 911201 ce-info@camboard.de KRAMER: SIMPLE CREATIVE TECHNOLOGY Fax 07131 911203...

  • Page 45: Camboard Electronics

    Vertrieb von CAMBOARD Electronics Protocol 3000 Syntax Protocol 3000 Syntax The Kramer Protocol 3000 lets you control the device from any standard terminal software (for example, the Windows® HyperTerminal Application). 14.1 Host Message Format Start Address (optional) Body Delimiter...

  • Page 46: Command Terms

    You can directly enter all commands using a terminal with ASCII communications software, such as HyperTerminal, Hercules, etc. Connect the terminal to the serial, Ethernet, or USB port on the Kramer device. To enter , press the Enter key. is also sent but is ignored by command parser).

  • Page 47: Bi-Directional Definition

    Commands in the string do not execute until the closing character is entered. A separate response is sent for every command in the chain. 14.11 Maximum String Length 64 characters 14.12 Backward Support The VP-81SID supports the commands listed in Table Table 12: Communication Commands Command Parameters Description Protocol handshaking...
  • Page 48 PRIO 1/0 (1=mute on,0=mute Set audio mute for device MUTE off) Enable/Disable IR driver IREN input, sid-x1 input Switch inputs on SID-X1 via VP-81SID (as VID-TYPE described in Section 8.1.6) GET Commands Get current input-to-output routing setting AV?/V?/VID? Get Volume...
  • Page 49 im Vertrieb von CAMBOARD Electronics Protocol 3000 Syntax 14.12.2 MODEL? Command Name Short Cmd Command Type Permission MODEL? Common-mandatory End User Read device model Syntax #MODEL?␍ Response ~nn@MODEL␠model_name␍␊ Parameters model_name – String of printable ASCII chars (up to 19 chars). Notes 14.12.3 VERSION? Command Name...
  • Page 50 Reset device serial number Syntax #SN?␍ Response ~nn@SN␠serial_number␍␊ Parameters serial_number – 11 decimal digits. Assign by Kramer factory. Notes For new products with 14 digits serial we kept only the last 11. 14.12.5 NAME? Command Name Short Cmd Command Type...
  • Page 51 im Vertrieb von CAMBOARD Electronics Protocol 3000 Syntax 14.12.6 MACH-NUM Command Name Short Cmd Command Type Permission MACH-NUM Common End User Set Machine number Syntax #MACH-NUM␠machine_number␍ Response ~nn@MACH-NUM␠machine_number OK␍␊ Parameters machine_number – New machine number to device Notes Some devices will not get the new machine number until restart the device. Some devices can change machine number only from dip-switches 14.12.7 BUILD-DATE? Command Name...
  • Page 52 2 options: 1. #HELP␍ 2. #HELP␠command_name␍ Response 1. Multi-line: ~nn@Device available protocol 3000 commands:␍␊command,␠command…␍␊To get help for command use : HELP (COMMAND_NAME)␍␊ 2. Multi-line: ~nn@HELP␠command:␍␊description␍␊USAGE:usage ␍␊ Parameters Notes www.camboard.de Tel. 07131 911201 ce-info@camboard.de KRAMER: SIMPLE CREATIVE TECHNOLOGY Fax 07131 911203...
  • Page 53 im Vertrieb von CAMBOARD Electronics Protocol 3000 Syntax 14.12.10 RESET Command Name Short Cmd Command Type Permission RESET Common-mandatory Administrator Reset device Syntax #RESET␍ Response ~nn@RESET␠OK␍␊ Parameters Notes If device connected by USB, it’s recommend to disconnect the connection immediately after operating this command, to eliminate port locking because USB bug in windows (if port was locked anyway, disconnect and reconnect the cable and then try to open port again).
  • Page 54 – ‘0’ or ‘off’ to unlock front panel buttons. ‘1’ or ‘on’ to lock front panel buttons. device_id – For K-Net controllers, select the buttons panel to lock. Locking is allowed only from the master. Notes www.camboard.de Tel. 07131 911201 ce-info@camboard.de KRAMER: SIMPLE CREATIVE TECHNOLOGY Fax 07131 911203...
  • Page 55 im Vertrieb von CAMBOARD Electronics Protocol 3000 Syntax 14.12.14 LOCK-FP? Command Name Short Cmd Command Type Permission LOCK-FP? Common End User Get lock state of front panel Syntax Option 1: #LOCK-FP?␍ Option 2: #LOCK-FP?␠device_id␍ Response Option 1: ~nn@LOCK-FP␠lock_mode␍␊ Option 2: ~01@LOCK-FP␠device_id, lock_mode␍␊ Parameters lock_mode –...
  • Page 56 '>' = Connection character between in and out parameters out = Output number or '*' for all outputs Notes Out = 1 (TP output) Out = 2 (HDMI output) www.camboard.de Tel. 07131 911201 ce-info@camboard.de KRAMER: SIMPLE CREATIVE TECHNOLOGY Fax 07131 911203...
  • Page 57 im Vertrieb von CAMBOARD Electronics Protocol 3000 Syntax 14.12.18 VID Command Name Short Cmd Command Type Permission Switch End User Switch Video Syntax #VID␠in>out, in>out,…␍ Response ~nn@VID␠in>out ␍␊ ~nn@VID␠in>out ␍␊ … Parameters In - input number or '0' to disconnect output '>' = Connection character between in and out parameters out = Output number or '*' for all outputs Notes...
  • Page 58 Response ~nn@VOLUME␠ out_ channel, volume ␍␊ Parameters out_channel = Output # volume = Audio parameter in Kramer units, minus sign precedes negative values. ++ increase current value, -- decrease current value Notes For set / get “input” level or audio level in other amplifier stage use command #AUD-LVL / #AUD-LVL? – set / get audio level in specific amplifier stage 14.12.21 VOLUME?
  • Page 59 im Vertrieb von CAMBOARD Electronics Protocol 3000 Syntax 14.12.22 PRIO Command Name Short Cmd Command Type Permission PRIO Device specific Administrator Syntax Response PRIO INPUT , PRIORITY PRIO INPUT , PRIORITY OK Description Notes Set input Priority INPUT – 1…10 PRIORITY - 1..10 14.12.23 MUTE Command Name...
  • Page 60 VID-TYPE INPUT , SID-X1 INPUT VID-TYPE INPUT , INPUT TYPE , IS_X1_INPUT Description Notes Switch SID-X1 inputs remotely via VP-81SID INPUT - input No. of switcher, where HDMI=0, DP=1, DVI=2, VGA=3 SID-X1 INPUT – input No. of SID-X1 to switch to INPUT_TYPE –...
  • Page 61 im Vertrieb von CAMBOARD Electronics Protocol 3000 Syntax 14.12.27 IREN? Command Name Short Cmd Command Type Permission IREN? Common End User Syntax Response IREN? IREN 1/0 Description Notes Get IR control current status 1/0= On OR Off 14.12.28 VID-RES? Command Name Short Cmd Command Type Permission...
  • Page 62 – EEPROM to get the EDID from size – Device send this parameter in response. Size of EDID that will print. edid_data – EDID data as stream of bytes. Notes www.camboard.de Tel. 07131 911201 ce-info@camboard.de KRAMER: SIMPLE CREATIVE TECHNOLOGY Fax 07131 911203...
  • Page 63 im Vertrieb von CAMBOARD Electronics Protocol 3000 Syntax 14.12.32 FPGA-VER? Command Name Short Cmd Command Type Permission FPGA-VER? <?> Device specific End User Syntax Response FPGA-VER? ID FPGA-VER? FPGA version number , ID Description Notes Request FPGA version by FPGA ID (optional) 14.12.33 SECUR Command Name Short Cmd...
  • Page 64 Get current security state Syntax #SECUR?␍ Response ~nn@SECUR␠security_mode␍␊ Parameters security_mode –ON if security enabled. OFF if security disabled. Notes Permissions system work only if security was enabled (by “SECUR” command) www.camboard.de Tel. 07131 911201 ce-info@camboard.de KRAMER: SIMPLE CREATIVE TECHNOLOGY Fax 07131 911203...
  • Page 65 im Vertrieb von CAMBOARD Electronics www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...
  • Page 66 Vertrieb von CAMBOARD Electronics For the latest information on our products and a list of Kramer distributors visit www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
