3. Click on the required Input Type button.
The input type selection is made and the button changes to solid purple.
4. Click Save.
The Input type is selected on the SID-X1.
9.1.7 Changing the Output Volume
To change the output volume:
1. Click and hold on the Output Volume slider as shown in

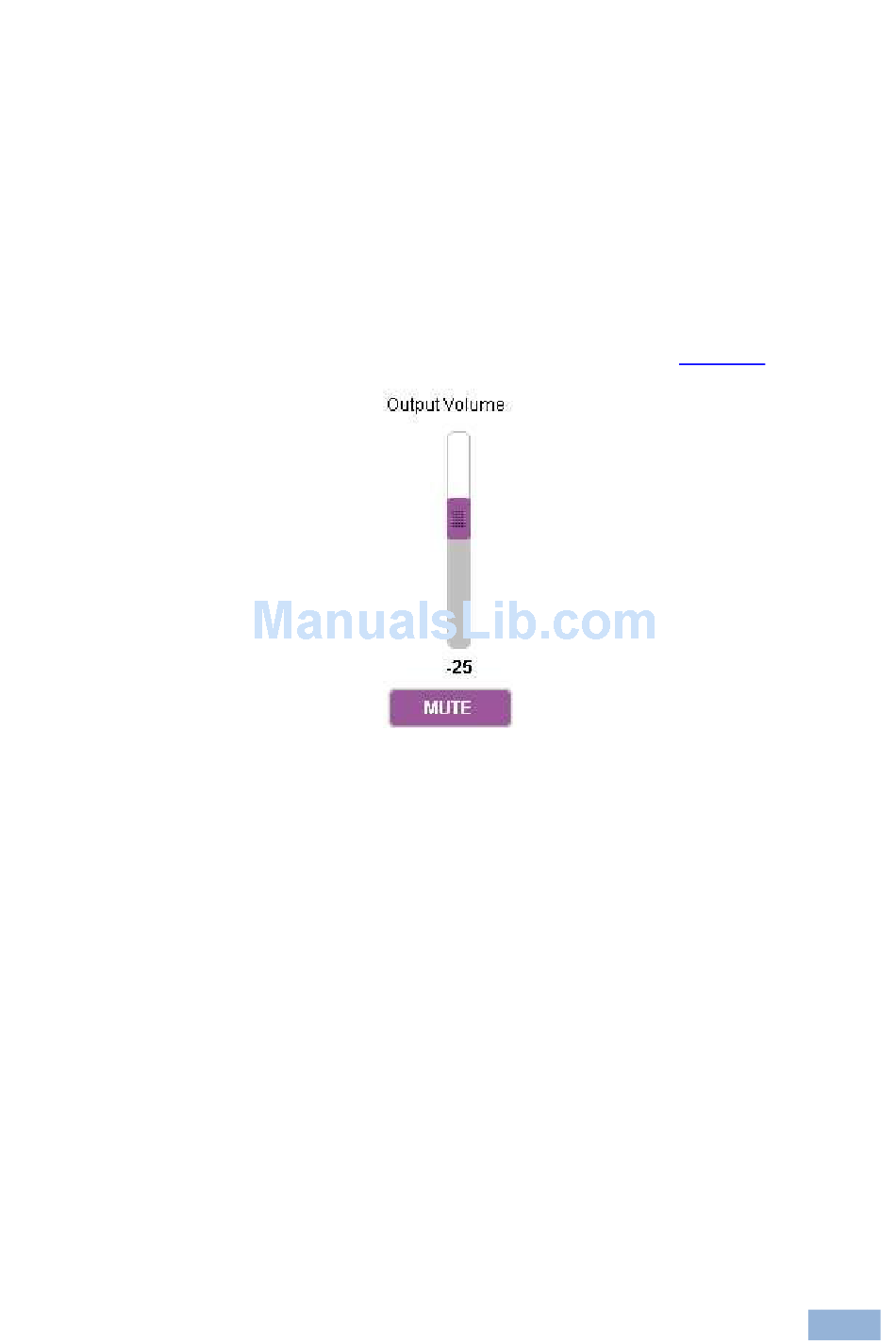

Figure 18: Changing the Output Volume

2. Drag up to increase or down to decrease the output volume.
The volume level changes accordingly.
9.1.8 Muting the Audio Output
To mute the audio output:
1. Click the Mute button.
The button changes to purple and the audio is muted.
2. Click the colored Mute button to unmute the audio.
The button changes to white and the audio is unmuted.
VP-81SIDN - Operating the VP-81SIDN Remotely
Figure 18.
33
