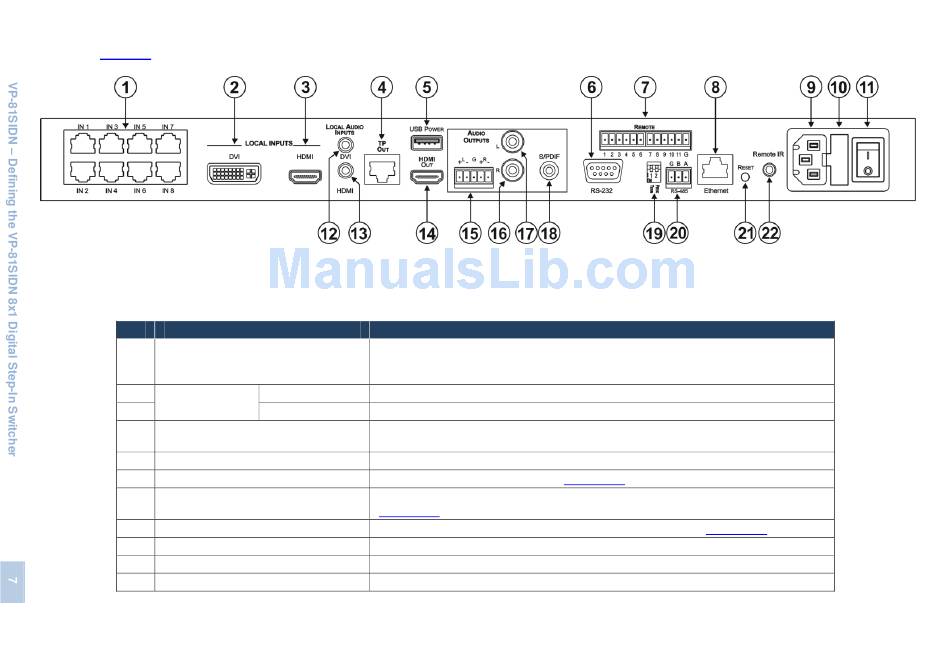

Figure 2 defines the rear panel of the VP-81SIDN.

Figure 2: VP-81SIDN 8x1 Digital Step-In Switcher Rear Panel

# Feature
1 TP Input RJ-45 Connectors IN 1 to
IN 8
2 DVI
LOCAL
INPUTS
3 HDMI
4 TP OUT RJ-45 Connector
5 USB POWER Connector
6 RS-232 9-pin D-sub Port (F)
7 REMOTE 12-way Terminal Block
8 ETHERNET RJ-45 Connector
9 AC Mains Power Socket
10 AC Mains Fuse
11 AC Mains Power Switch
Function
Connect to the remote TP sources (1 to 8) using CAT 6 or higher specification
cable. These may be step-in panels (for example, SID-DP) or TP transmitters (for
example, the PT-571 or TP-573)
Connect to the local DVI source
Connect to the local HDMI source
Connect to the remote TP receiver, for example, PT-572+, using CAT 6 or higher
specification cable (maximum 50m, 164ft)
Connect any device requiring USB power, (for example, the Kramer KW-11T)
Connect to a serial controller (see
Connect to remote contact closure input and output selection switches (see
Section 6.2)
Connect to a PC or LAN for remote control via Ethernet (see
Connect to the AC mains power
AC mains supply protection fuse
Turns the AC mains power supply to the device on and off
Section 6.3)
Section 6.5)
