- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: F-110 XGA Line Transmitter on Dual-slot Wall-plate Insert...
-
Page 2: Table Of Contents
Using the F-110 Technical Specifications Figures Figure 1: F-110 XGA Line Transmitter Figure 2: Connecting the F-110 to the TP-120 Figure 3: Terminal Block Pinouts Figure 4: CAT 5 PINOUT Tables Table 1: F-110 Features ... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 The complete list of Kramer products can be found on our Web site at http://www.kramerelectronics.com 3 Download up-to-date Kramer user manuals from the Internet at http://www.kramerelectronics.com... -
Page 4: Overview

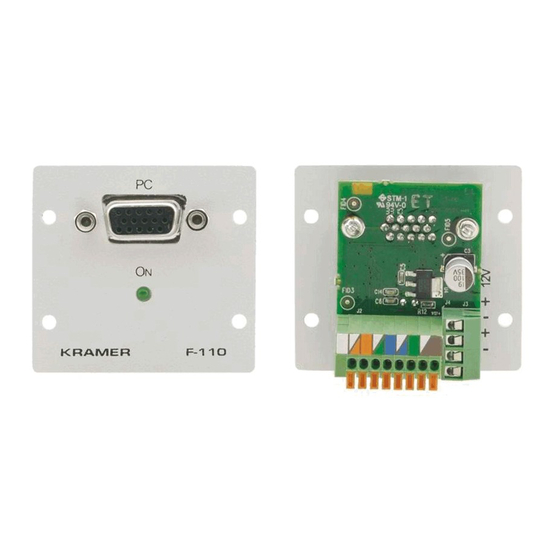

Overview Overview The Kramer F-110 dual-slot wall-plate insert is an XGA line transmitter that accepts up to a UXGA video signal, encodes it to a twisted pair (TP) signal, and transmits the TP signal to a compatible TP receiver In particular, the F-110: •... -
Page 5: Achieving The Best Performance
However, since the use of UTP cable might cause inconformity to electromagnetic standards, Kramer does not commit to meeting the standard with UTP cable. Achieving the Best Performance To achieve the best performance: •... -
Page 6: Your F-110 Xga Line Transmitter
Connects to the LINE IN RJ-45 connector on the Kramer PT-120 Connector or TP-120 XGA Line Receiver 1 One set is used to power the F-110 and the other set can be used to power an adjacent insert 2 See section KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 7: Connecting The F-110
Connecting the F-110 Connecting the F-110 The Kramer F-110 together with the Kramer PT-120 or TP-120 XGA line receivers constitute a VGA/XGA-to-twisted pair transmitter and receiver. To connect the F-110, do the following: 1. Unscrew the two screws that fasten each of the two adjacent blank plates to the connecting surface and remove them. -
Page 8: Figure 2: Connecting The F-110 To The Tp-120
Connecting the F-110 Figure 2: Connecting the F-110 to the TP-120 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Wiring The 9-Pin Terminal Block Line Output Connector
Connecting the F-110 Wiring the 9-pin Terminal Block Line Output Connector The 8-pin terminal block is an easy plug-in connector for attaching the UTP cable. Follow the colors of the color-coded sticker on these terminals for proper connection of the UTP cable. -
Page 10: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Pair 4 7 and 8 Using the F-110 Table 3 shows examples of how the F-110 dual-slot wall-plate insert can be installed in various applications. Table 3: F-110 Applications F-110 installed in a wall plate insert frame (for example, the... - Page 11 Using the F-110 F-110 installed in an Ackermann floor box frame (for example, the Kramer FLA-12): F-110 installed in a TBUS connecting surface (for example, a Kramer TBUS):...
-
Page 12: Technical Specifications
Technical Specifications Technical Specifications Table 4 lists the technical specifications: Table 4: Technical Specifications of the F-110 INPUT: 1 VGA / UXGA on a 15-pin HD connector OUTPUT: 1 CAT 5 LINE OUTPUT on an 8-pin terminal block connector RESOLUTION: Up to UXGA MAX. - Page 13 1. Any product which is not distributed by us or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
- Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
