- Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: TP-45EDID Component UXGA Audio Transmitter P/N: 2900-300126 Rev 2...
-
Page 3: Table Of Contents
Figures Figure 1: TP-45EDID Component/UXGA/Audio Transmitter Figure 2: Component/XGA – Audio Distribution System, XGA Mode Figure 3: Component/XGA – Audio Distribution System, Component Video Mode Figure 4: The TP-45EDID Remote Control Connection Figure 5: CAT 5 PINOUT TP-45EDID – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: • Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) •... -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
CAT 5 cable to a compatible receiver. The TP-45EDID has two SELECT buttons that let you choose the video signal input (XGA or component) as well as the audio input (digital or analog signal). -
Page 8: Shielded Twisted Pair (Stp)/Unshielded Twisted Pair (Utp)
STP cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. -
Page 9: Defining Edid
The Extended Display Identification Data (EDID) is a data-structure provided by a display, to describe its capabilities to a graphics card (that is connected to the display’s source). The EDID enables the TP-45EDID to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data supported by the display, the display size, luminance data and (for digital displays only) the pixel mapping data. -
Page 10: Defining The Tp-45Edid Component/Uxga/Audio Transmitter

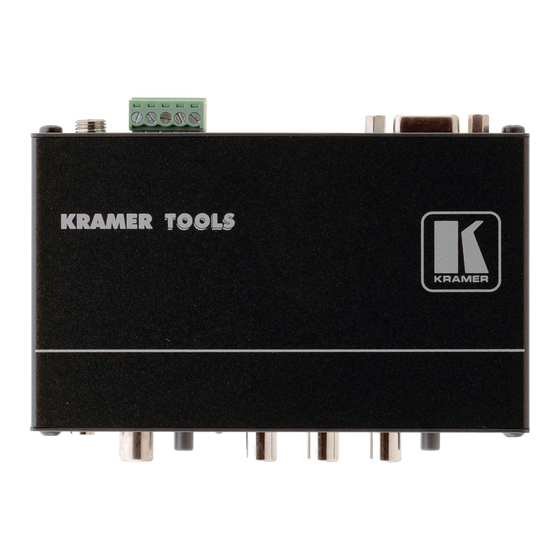

Defining the TP-45EDID Component/UXGA/Audio Transmitter This section defines the TP-45EDID. Figure 1: TP-45EDID Component/UXGA/Audio Transmitter TP-45EDID - Defining the TP-45EDID Component/UXGA/Audio Transmitter... - Page 11 Y RCA Connector Connect to the component video source RCA Connector RCA Connector VIDEO SELECT Input Button Press to toggle between component video and computer graphics video ON LED Lights when receiving power TP-45EDID - Defining the TP-45EDID Component/UXGA/Audio Transmitter...
-
Page 12: Connecting A Component/Xga - Audio Distribution System
The modes of the system are determined by setting the VIDEO SELECT and AUDIO SELECT switches on the TP-45EDID. Whatever modes are set at the transmitter the video and audio signals are sent to the receiver and any additional cascaded receivers. -
Page 13: Connecting The System In Xga Mode
The ANALOG AUDIO 3.5mm mini jack to the analog audio acceptor (for example, powered speakers) 4. Connect the LINE OUTPUT RJ-45 connector on the TP-45EDID to the LINE IN RJ-45 connector on the TP-46N, via CAT 5 cabling, see Figure 5. -
Page 14: Connecting The System In Component Video Mode
Figure 2: Component/XGA – Audio Distribution System, XGA Mode Connecting the System in Component Video Mode To configure a TP-45EDID/TP-46N Component/XGA – Audio distribution system in the component video mode, as the example in Figure 3 illustrates, do the following: 1. - Page 15 The S/PDIF RCA connector to the digital audio acceptor (for example, the audio input on the plasma display) 4. Connect the LINE OUTPUT RJ-45 connector on the TP-45EDID to the LINE IN RJ-45 connector on the TP-46N, via CAT 5 cabling, see Figure 5.
-
Page 16: Connecting The Tp-45Edid Remote Control
Connect momentary push-buttons and LEDs (each LED is driven by a 5V source and a 392Ω series resistor) to a cable and attach the cable to a 5-pin terminal block for connection to the TP-45EDID control port as shown in Figure Each press of the selector button toggles the audio or video system mode and turns on or off the remote and panel status LEDs according to the active mode. -
Page 17: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Green / White Blue Blue / White Green Brown / White Brown Pair 1 4 and 5 Pair 2 1 and 2 Pair 3 3 and 6 Pair 4 7 and 8 TP-45EDID - Connecting a Component/XGA – Audio Distribution System... -
Page 18: Acquiring The Edid
3. Once the EDID STATUS flashes rapidly several times, the default EDID is captured. Alternatively, you can press the EDID CAPTURE button after connecting the transmitter receiver system. When the EDID STATUS LED flashes rapidly several times, the default EDID information is acquired. TP-45EDID - Acquiring the EDID... -
Page 19: Technical Specifications
12cm x 7.15cm x 2.76cm (4.7" x 2.81" 1.09") W, D, H WEIGHT: 0.3 kg (0.67 lbs) approx ACCESSORIES: Power supply Specifications are subject to change without notice at http://www.kramerelectronics.com * Starred specifications are measured using a TP-45EDID and TP-46N pair unless otherwise stated. TP-45EDID - Technical Specifications... - Page 21 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
