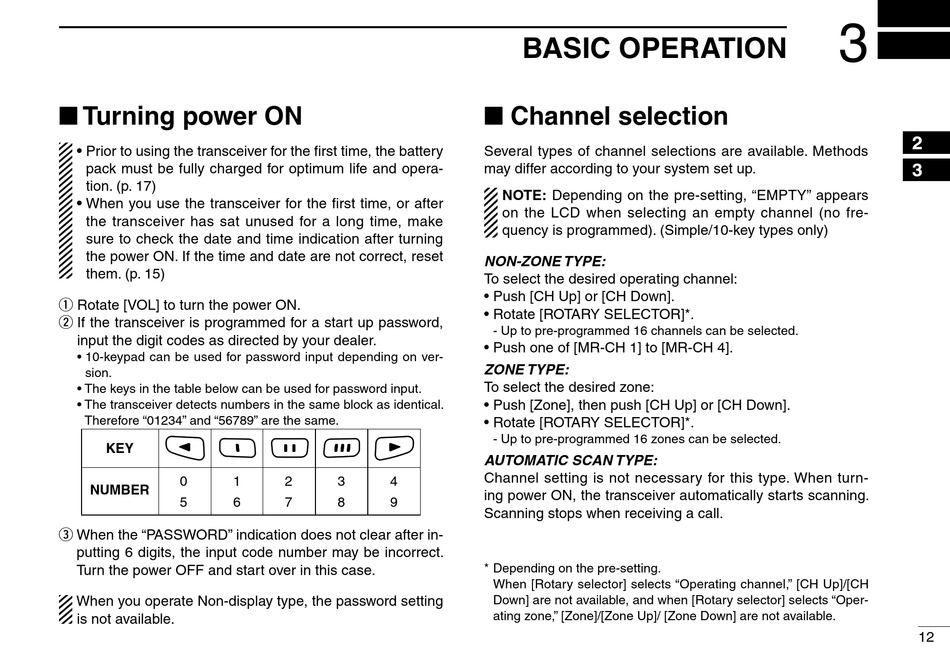

■ Turning power ON

• Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and opera-
tion. (p. 17)
• When you use the transceiver for the first time, or after
the transceiver has sat unused for a long time, make
sure to check the date and time indication after turning
the power ON. If the time and date are not correct, reset
them. (p. 15)
q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• 10-keypad can be used for password input depending on ver-
sion.
• The keys in the table below can be used for password input.
• The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
KEY
0 1
NUMBER
5 6
e When the "PASSWORD" indication does not clear after in-
putting 6 digits, the input code number may be incorrect.
Turn the power OFF and start over in this case.
When you operate Non-display type, the password setting
is not available.
2 3 4
7 8 9

BASIC OPERATION

■ Channel selection

Several types of channel selections are available. Methods
may differ according to your system set up.
NOTE: Depending on the pre-setting, "EMPTY" appears
on the LCD when selecting an empty channel (no fre-
quency is programmed). (Simple/10-key types only)
NON-ZONE TYPE:
To select the desired operating channel:
• Push [CH Up] or [CH Down].
• Rotate [ROTARY SELECTOR]*.
- Up to pre-programmed 16 channels can be selected.
• Push one of [MR-CH 1] to [MR-CH 4].
ZONE TYPE:
To select the desired zone:
• Push [Zone], then push [CH Up] or [CH Down].
• Rotate [ROTARY SELECTOR]*.
- Up to pre-programmed 16 zones can be selected.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turn-
ing power ON, the transceiver automatically starts scanning.
Scanning stops when receiving a call.
* Depending on the pre-setting.
When [Rotary selector] selects "Operating channel," [CH Up]/[CH
Down] are not available, and when [Rotary selector] selects "Oper-
ating zone," [Zone]/[Zone Up]/ [Zone Down] are not available.
