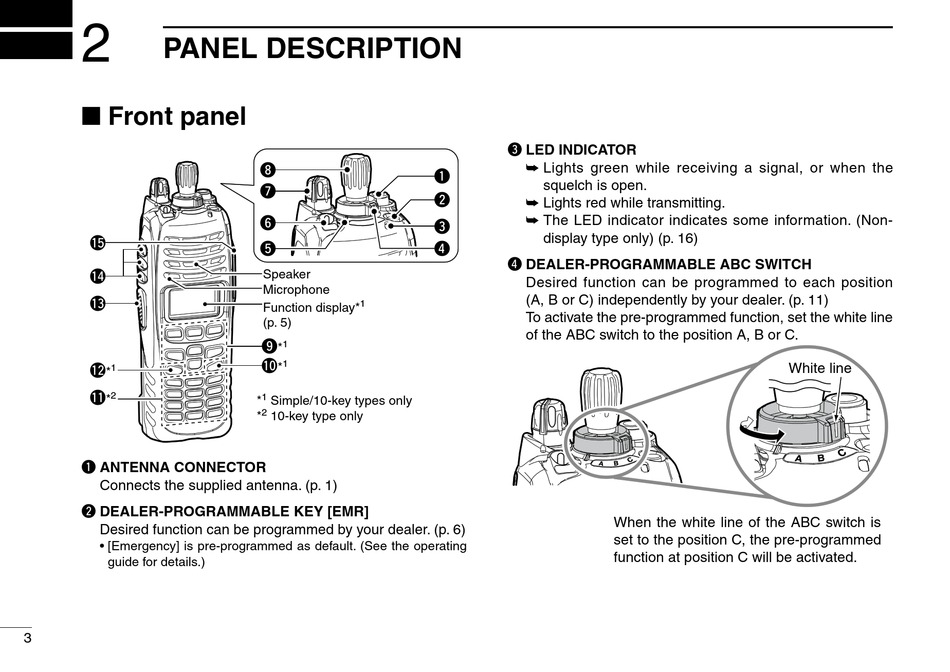

PANEL DESCRIPTION

■ Front panel

!5
!4
!3
1
!2
*
!1 2
*
q ANTENNA CONNECTOR
Connects the supplied antenna. (p. 1)
w DEALER-PROGRAMMABLE KEY [EMR]
Desired function can be programmed by your dealer. (p. 6)
• [Emergency] is pre-programmed as default. (See the operating
guide for details.)
3
i
q
u
w
y
e
t r
Speaker
Microphone
1
Function display*
(p. 5)
1
o
*
!0 1
*
1
* Simple/10-key types only
2
* 10-key type only
e LED INDICATOR
➥ Lights green while receiving a signal, or when the
squelch is open.
➥ Lights red while transmitting.
➥ The LED indicator indicates some information. (Non-
display type only) (p. 16)
r DEALER-PROGRAMMABLE ABC SWITCH
Desired function can be programmed to each position
(A, B or C) independently by your dealer. (p. 11)
To activate the pre-programmed function, set the white line
of the ABC switch to the position A, B or C.
When the white line of the ABC switch is
set to the position C, the pre-programmed
function at position C will be activated.
White line
