PANEL DESCRIPTION

■ LED indicator

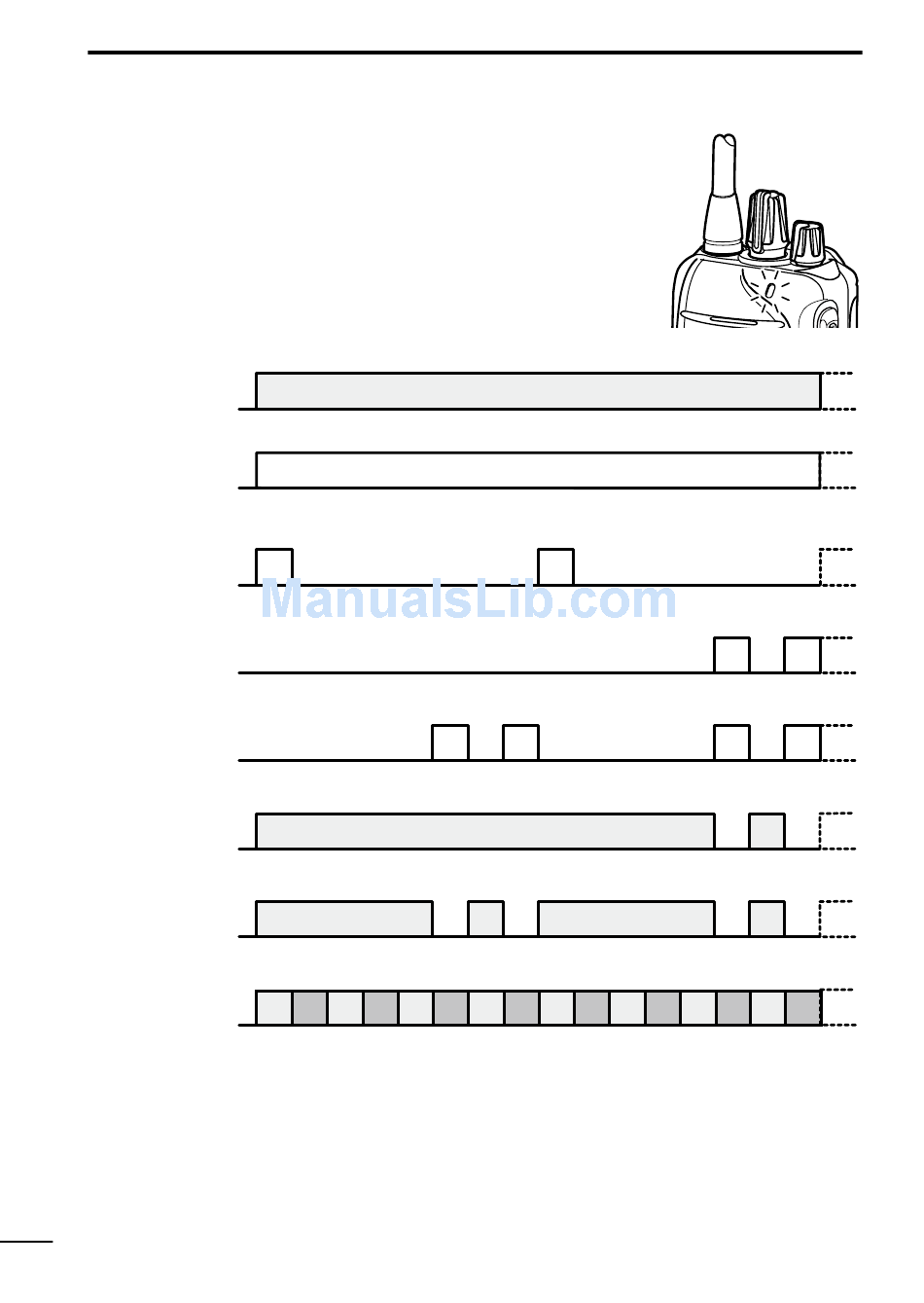

The LED indicator indicates the status of various
parameters of the transceiver, as follows;
(Ref.; R=Red, G=Green, O=Orange)
• TX: Lights Red while transmitting a signal.
• RX: Lights Green while receiving a signal.
• Fast/Slow scan: Blinks when the Fast/Slow scan is activated.
c an
• Low Battery 1: You should charge the battery. (blinks slowly)
BAT T 1
• Low Battery 2: You must charge the battery. (blinks fast)
BAT T 2
• TX low Battery 1: Low Battery was detected during transmit.
w B AT T1
• TX low Battery 2: Very Low Battery was detected during transmit.
w B ATT 2
• Channel Error: A non-programmed channel is selected.
* Lights (or blinks) orange when the optional battery case is attached.
