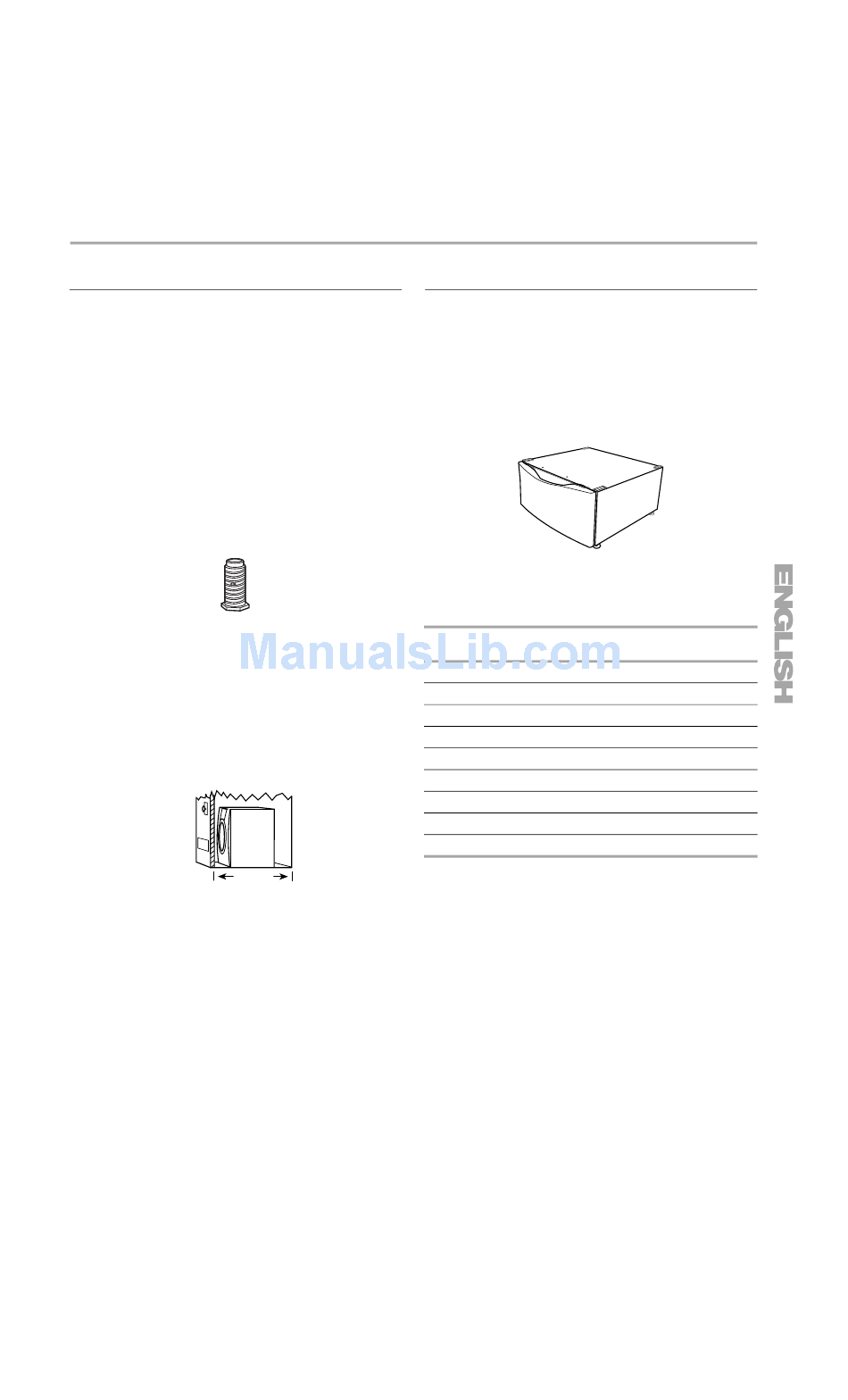

Tools and Parts

Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Flat-blade screwdriver
#2 Phillips screwdriver
Adjustable wrench that
opens to 1" (2.54 cm) or
hex-head socket wrench
(for adjusting dryer feet)
Level
Vent clamps
Parts supplied
Remove parts package from dryer drum. Check that all parts are
included.
4 Leveling legs
NOTE: Do not use leveling legs if installing the dryer on a
pedestal.
Parts needed
Check local codes. Check existing electrical supply and venting.
See "Electrical Requirements" and "Venting Requirements"
before purchasing parts.
For close-clearance installations between 31.5" (80.01 cm)
and 37" (93.98 cm), see "Plan Vent System" section for
venting requirements.
Mobile home installations require metal exhaust system hardware
available for purchase from your local Sears store or Sears
Service Center. For further information, please call
1-800-4-MY-HOME
®
(1-800-469-4663).

INSTALLATION INSTRUCTIONS

Caulking gun and
compound (for installing
new exhaust vent)
Tin snips (new vent
installations)
¼" nut driver or socket
wrench
Tape measure
37"
(93.98 cm)

Optional Pedestal

Are you placing the dryer on a pedestal? You have the option of
purchasing pedestals of different heights separately for this dryer.
You may select a 13" (33 cm) or a 15.5" (39.4 cm) pedestal. These
pedestals will add to the total height of the dryer for a total height
of approximately 51" (129.5 cm) or 53.5" (135.9 cm).
For a garage installation, you will need to place the 13" (33 cm)
pedestal at least 6" (15.2 cm) above the floor. You will need to
place the 15.5" (39.4 cm) pedestal at least 3" (7.6 cm) above the
floor.
Optional pedestal
The pedestal (with storage drawer) is available in several colors.
To order, call your local Sears store. For further information,
please call 1-800-4-MY-HOME
®
Pedestal
Color
Height
13" (33 cm)
White
13" (33 cm)
Bisque
13" (33 cm)
Graphite
15.5" (39.4 cm)
White
15.5" (39.4 cm)
Bisque
15.5" (39.4 cm)
Graphite
15.5" (39.4 cm)
Pacific Blue
15.5" (39.4 cm)
Champagne
15.5" (39.4 cm)
Sedona
(1-800-469-4663).
Part Number
43002
43004
43006
55842
55844
55846
55847
55848
55849
5
