INSTALLATION

Connect the Cables

1. Position the ETH-4X1 Manual Ethernet Switch such that the ethernet cable from the COMMON , the AC adapter
power cable, and the ethernet cables from the SELECTABLEs can reach the ETH-4X1 Manual Ethernet Switch.
2. Connect one end of an ethernet cable to the COMMON (See Fig.1.)
cable to the "COMMON" port on the ETH-4X1 Manual Ethernet Switch.
3. Connect another ethernet cable between each SELECTABLE and the user selectable ports (1-4) on the
ETH-4X1 Manual Ethernet Switch. (See Figs.1 and 2.)
RJ45 Female
Cable Modem
(NETWORK)
RJ45 Female
RJ45 Male
Ethernet Cable
Rear View of CPU
(DEVICE)
RJ45 Male
Ethernet Cable
Rear View of ETH-4X1
1 2 3
RJ45 Male

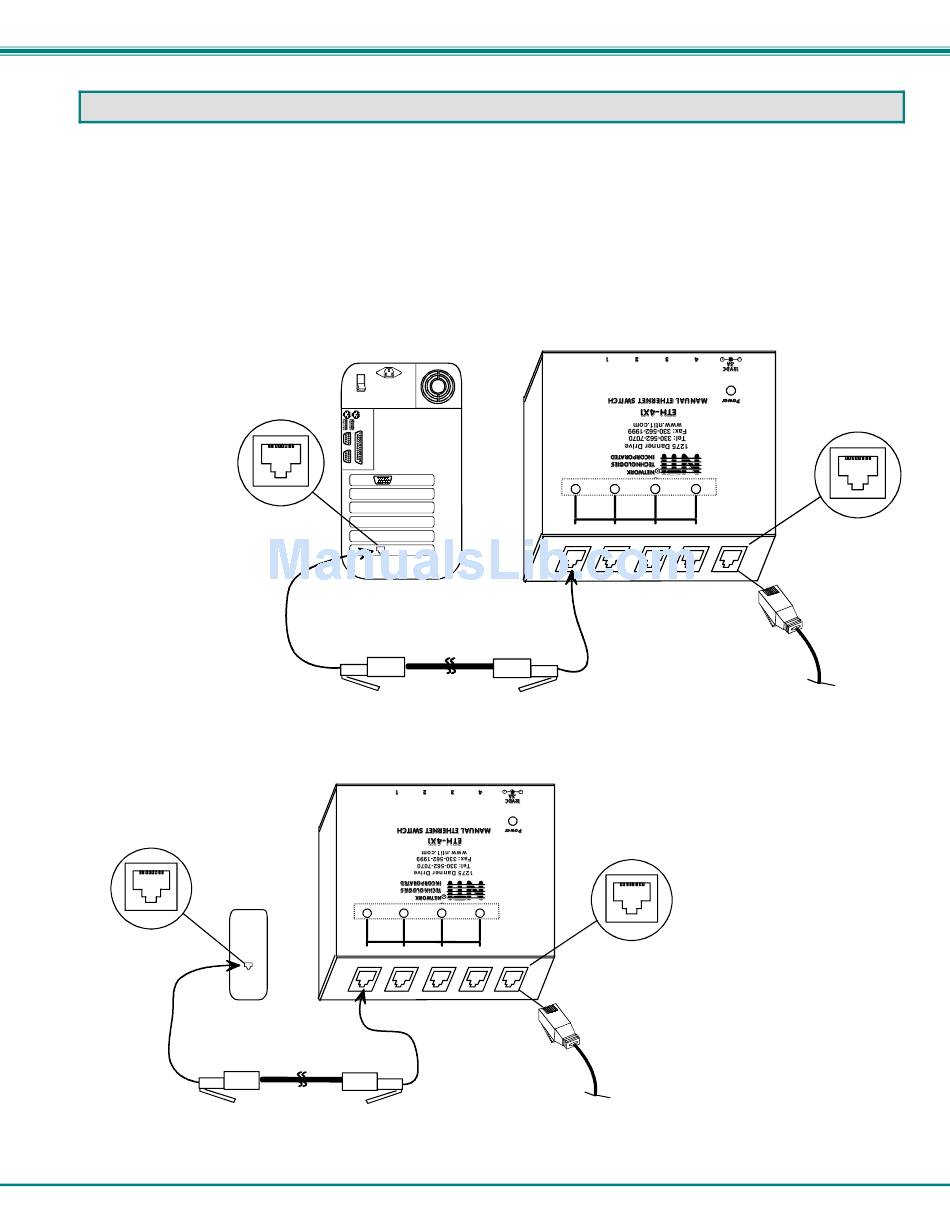

Figure 2- Connect NETWORK to switch
