Plug-in and Boot Up

1. Connect the AC adapter power connector to the 12VDC port on the ETH-4X1 Manual Ethernet Switch.
Make sure the power connector is properly inserted. (See Fig. 3.)
2. Plug the AC adapter into a power outlet. The "Power" LED on the ETH-4X1 Manual Ethernet Switch should
illuminate indicating that a proper power connection has been made.
indicating a connection between the "COMMON" port and user selectable port 1.
Barrel
Power Connector
12VDC @ .5A OUTPUT
(Rear of
barrel)
2.1 mm x 5.5 mm Male
12 VDC
Adapter
ADAPTER
3. Power up the COMMON and SELECTABLE device(s). The COMMON device should react as if it were directly
connected to the SELECTABLE device plugged into user selectable port 1.

RS232

To use the RS232 port (optional) , connect a crossed female serial cable from a CPU serial port to the DB9 pin male RS232
port on the ETH-4X1-RS Manual Ethernet Switch.
RS232 Connector (DB9 Male)
Pin Signal
2 RxD
3 TxD
5 GND
RS-232 program setup parameters:
• 9600 baud
• 8 bit data
• 1 stop bit
• no parity
• no flow control
Power LED
(Tip of
barrel)

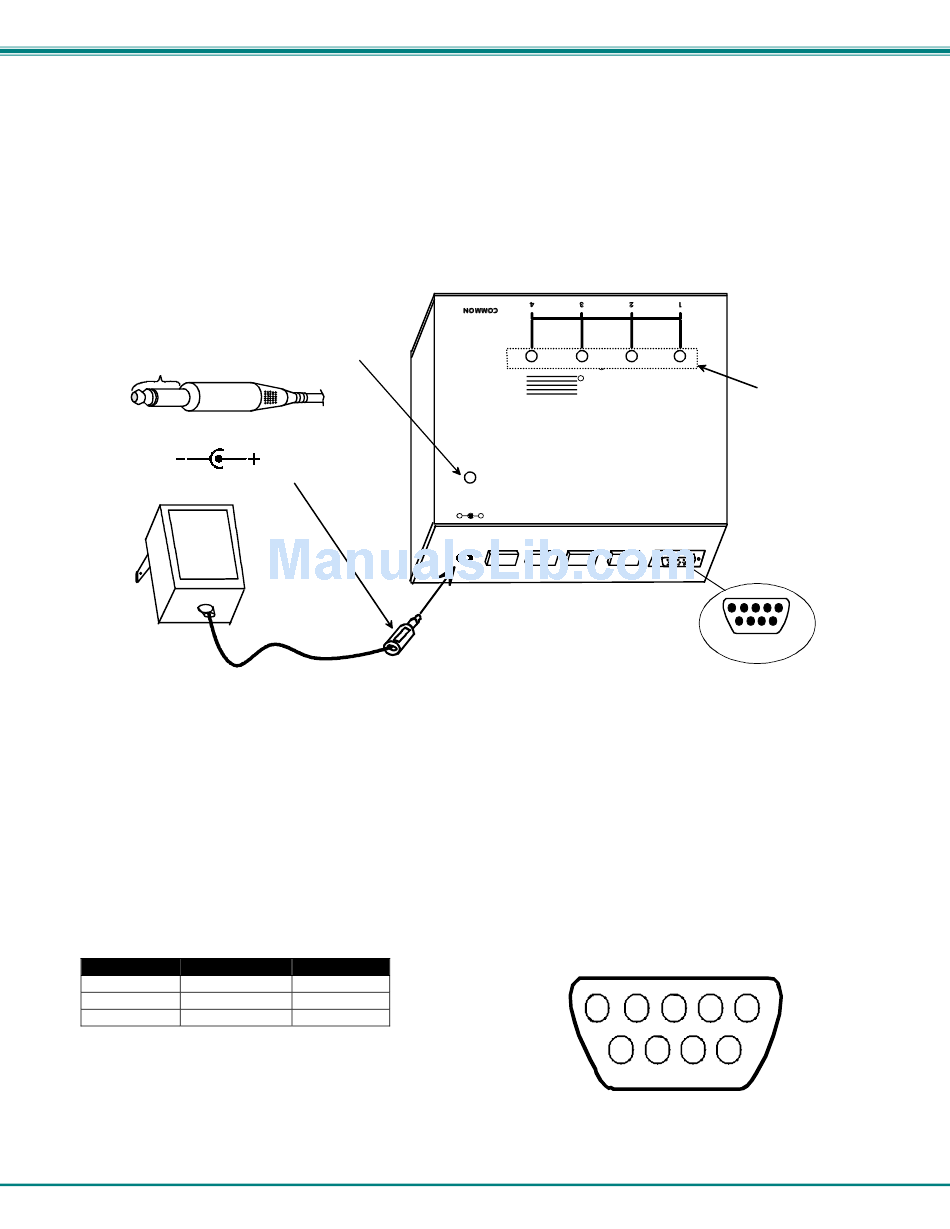

Figure 3- Connect the AC adapter
