IR Ports

The IPL T SFI244 has four IR ports for infrared device connection. You
can connect IR emitters or a wired IR control port of another device
to send IR signals (with or without carrier frequencies) to display or

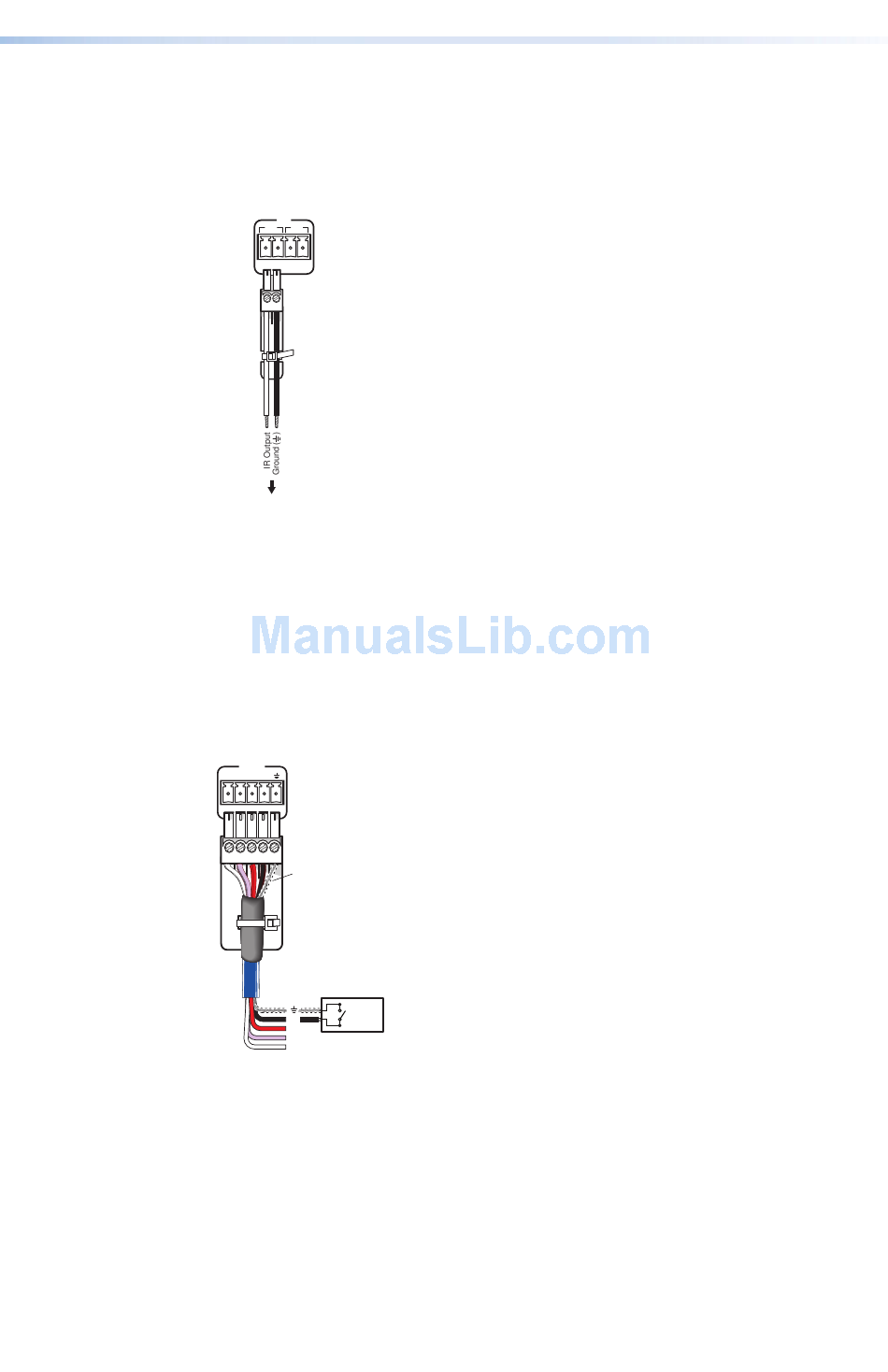

source devices. See the diagram below for IR port wiring.
IR
1 2
IPL T SFI244
Rear Panel
S G S G
To Projector, Panel Display,
or Source Device's Wired IR
Remote Port or IR emitter
Figure 11.
IR Port Wiring

Contact Closure Input Ports

The IPL T CR48 has four contact closure inputs that permit the
connection of switches and sensors to provide input (trigger events)
to the system. Pins 1 through 4 select inputs 1 through 4 on a
connected switcher or projector; pin 5 is a ground pin. See the
diagram below for contact closure input port wiring.
INPUT
1 2 3 4
IPL T CR48
Rear Panel
Heat Shrink
Over Shield
4
3
2
1
Figure 12. Contact Closure Input Port Wiring
Switch,
Sensor
IPL T Series • Setup 17
