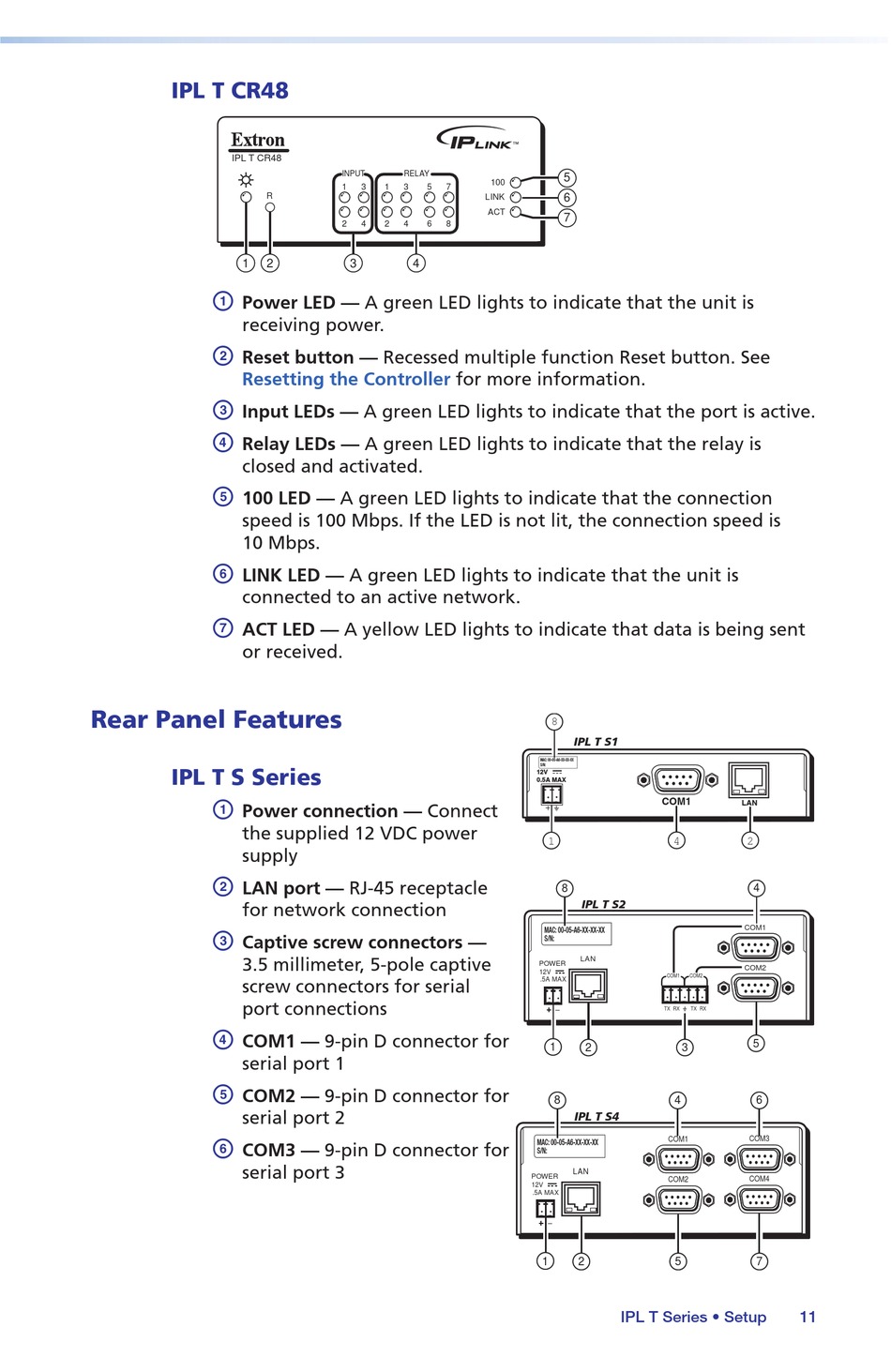

IPL T CR48

IPL T CR48
1
a
Power LED — A green LED lights to indicate that the unit is
receiving power.
b
Reset button — Recessed multiple function Reset button. See
Resetting the Controller
c
Input LEDs — A green LED lights to indicate that the port is active.
d
Relay LEDs — A green LED lights to indicate that the relay is
closed and activated.
e
100 LED — A green LED lights to indicate that the connection
speed is 100 Mbps. If the LED is not lit, the connection speed is
10 Mbps.
f
LINK LED — A green LED lights to indicate that the unit is
connected to an active network.
g
ACT LED — A yellow LED lights to indicate that data is being sent
or received.

Rear Panel Features

IPL T S Series

a
Power connection — Connect
the supplied 12 VDC power
supply
b
LAN port — RJ-45 receptacle
for network connection
c
Captive screw connectors —
3.5 millimeter, 5-pole captive
screw connectors for serial
port connections
d
COM1 — 9-pin D connector for
serial port 1
e
COM2 — 9-pin D connector for
serial port 2
f
COM3 — 9-pin D connector for
serial port 3
INPUT RELAY
1 3 1 3 5
R
2 4 2 4 6
2 3 4
5
100
7
6
LINK
ACT
7
8
for more information.
8
IPL T S1
MAC: 00-05-A6-XX-XX-XX
S/N:
12V
0.5A MAX
1
8
IPL T S2
MAC: 00-05-A6-XX-XX-XX
S/N:
LAN
POWER
12V
.5A MAX
1
2
8
IPL T S4
MAC: 00-05-A6-XX-XX-XX
S/N:
LAN
POWER
12V
.5A MAX
1 2
COM1
LAN
4 2
4
COM1
COM2
COM1 COM2
TX RX TX RX
5
3
4 6
COM3
COM1
COM2 COM4
5 7
