About the DMS Matrix Switchers

The DMS 1600, DMS 2000, DMS 3200, and DMS 3600 (see figure 1)
are configurable matrix switchers that distribute DVI signals and DFX
transmitter and receiver outputs and inputs. I/O boards route signals
that are compatible with all Extron DVI video product lines and the
fiber optic outputs and inputs of DFX transmitters and receivers. The
matrix switcher routes any input signal to any combination of outputs.
The matrix switcher can route multiple input/output configurations
simultaneously.
DVI-D INPUTS
A
B
C
FAN ASSEMBLY
DVI Equipped
DVI-D INPUTS
A
B
C
PCs
DVI-D INPUTS
A
B
C
DVI-D INPUTS
A
B
C
Compact HDTV
Camera Systems
FAN ASSEMBLY
HD Camera
FOXBOX Rx DVI
DISCONNECT BOTH POWER
CORDS BEFORE SERVICING
PRIMARY POWER SUPPLY
REDUNDANT
100-240V
50/60Hz
POWER
1.2A MAX.
12V
MODE
POWER
12V
MODE
DVI-D INPUT
AUDIO
RS-232
1.0A MAX
DVI-D OUTPUT
AUDIO
OVER FIBER ALARM
RS-232
ON
1.0A MAX
OVER FIBER ALARM
1
2
Tx Rx
1 2
PRIMARY
FOXBOX 4G Rx DVI
FOXBOX 4G Tx DVI
Tx Rx
1 2
100-240V
50/60Hz
1.2A MAX.
ANAHEIM, CA
Extron
FOXBOX Tx DVI
DMS 3600
Modular DVI Matrix Switcher
POWER
12V
MODE
DVI-D OUTPUT
AUDIO
RS-232
1.0A MAX
OVER FIBER ALARM
ON
POWER
12V
DVI-D INPUT
AUDIO
RS-232
1.0A MAX
OVER FIBER ALARM
1
2
FOXBOX 4G Rx DVI
Tx Rx
1 2
FOXBOX 4G Tx DVI
Tx Rx
1 2
PC
USP 507

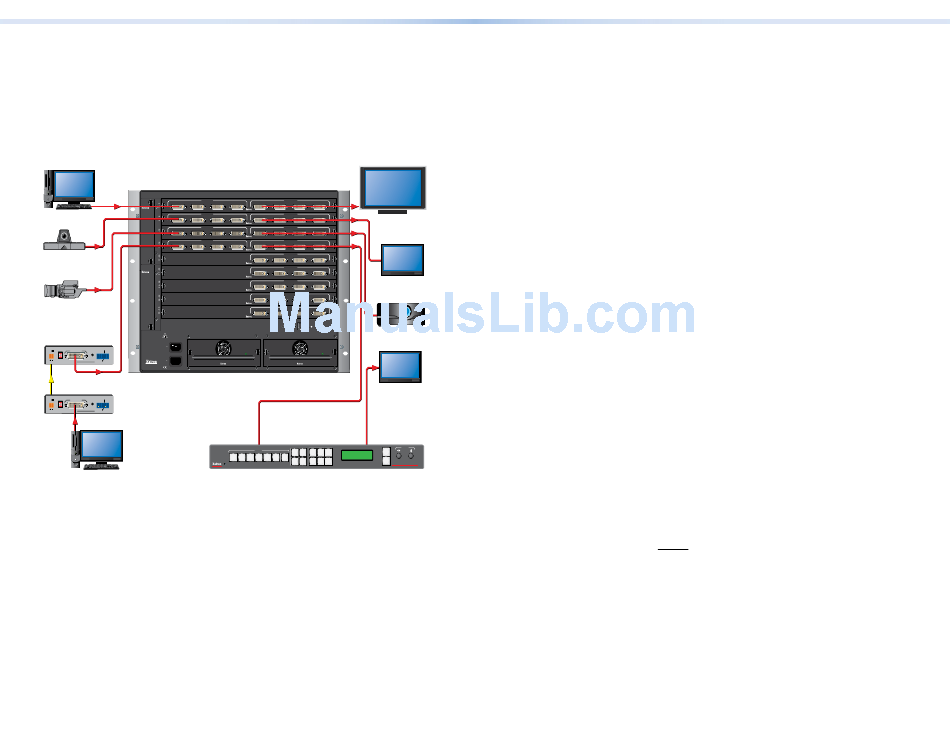

Figure 1.
Typical DMS 3600 Application
Each matrix switcher model can be remotely controlled via its Ethernet
LAN port, a serial port, or a USB port using either the Windows-based
Extron Matrix Switchers Control Program or the SIS.
The switcher has two internal, hot-swappable 100 VAC to 240 VAC,
50-60 Hz, 175-watt power supplies that provide worldwide power
compatibility and reliability.
2
DMS 1600, DMS 2000, DMS 3200, DMS 3600 • Introduction
DVI-D OUTPUTS
D
A
B
C
D
DVI-D OUTPUTS
HDTV Monitors
D
A
B
C
D
DVI-D OUTPUTS
D
A
B
C
D
DVI-D OUTPUTS
D
A
B
C
D
DVI-D OUTPUTS
A
B
C
D
DVI-D OUTPUTS
A
B
C
D
Digital Monitors
DVI-D OUTPUTS
A
B
C
D
DVI-D OUTPUTS
A
B
C
D
DVI-D OUTPUTS
A
B
C
D
LAN
REMOTE
DVI Projectors
RS232/RS422
ACT LINK
RESET
REDUNDANT POWER SUPPLY
Analog Monitor
ADJUST
INPUTS
AUTO
BRIGHT
MENU
MUTE
SIZE
/CONT
DETAIL
1
2
3
4
5
6
7
PIP
POSITION
COLOR
ZOOM
NEXT
CONFIG
FREEZE
/TINT
/PAN
PRESET
UNVERSAL SIGNAL PROCESSOR

Configurability

The DMS matrix switchers are assembled from I/O boards.
There are six types of I/O boards available:
By adding or removing I/O boards within certain rules that are detailed
in "Configurability rules," below, you can expand and contract each
switcher model from a 4-input by 4-output matrix to up to:

Configurability rules

There are certain rules for configuring the DMS matrix switcher for proper
operation, as detailed below:
UPS 507
The DMS 1600 can include up to four I/O boards.
The DMS 2000 can include up to five I/O boards.
The DMS 3200 can include up to eight I/O boards.
The DMS 3600 can include up to nine I/O boards.
4x4 DVI inputs and outputs
4x4 fiber inputs and outputs
4 DVI inputs
4 fiber inputs
4 DVI outputs
4 fiber outputs
DMS Matrix 1600 — A 16-input by 16-output matrix
DMS Matrix 2000 — A 20-input by 20-output matrix
DMS Matrix 3200 — A 32-input by 32-output matrix
DMS Matrix 3600 — A 36-input by 36-output matrix
The top slot (slot 1) MUST contain a 4x4 DVI or fiber optic input and
output board.
The next slot (slot 2) can contain any of the six board types.
A 4x4 input and output board can be followed (in the slot directly
underneath it) by any of the board types.
After you insert a 4-input board or a 4-output board, all active boards
underneath it MUST be the same size (4 inputs or 4 outputs).
Fiber boards can follow DVI boards and DVI boards can follow fiber
boards within the above size rules.
If you install a blank panel, all slots under it MUST contain blank
panels (you cannot skip a slot).
DMS 1600, DMS 2000, DMS 3200, DMS 3600 • Introduction
3
