Extron electronics MMX 32 AAP Installation Manual page 3

Input 2 pole — Connect this pole of the captive screw connector
2
to the appropriate connector on the connected switcher:
• MMX 32 VGA A — Remote connector, pin 4 (to control input
selection for output 1) or pin 8 (for output 2)
• MMX 32 VGA MTP — Contact 1 pin 2 (to control input
selection for output 1) or Contact 2 pin 2 (for output 2)
Input 3 pole — Connect this pole of the captive screw connector
3
to the appropriate connector on the connected switcher:
• MMX 32 VGA A — Remote connector, pin 6 (to control input
selection for output 1) or pin 9 (for output 2)
• MMX 32 VGA MTP — Contact 1 pin 3 (to control input
selection for output 1) or Contact 2 pin 3 (for output 2)
Tally Power Connector
5 VDC pole — Connect this pole of the captive screw connector to
4
the appropriate connector on the connected switcher:
• MMX 32 VGA A — Tally Power connector, 5V pole
• MMX 32 VGA MTP — Contact connector, +5V pole for the
appropriate output.
Ground pole — Connect this pole of the captive screw connector
5
to the appropriate connector on the connected switcher:
• MMX 32 VGA A — Tally Power connector, ground pole
• MMX 32 VGA MTP — Contact connector, ground pole for
the appropriate output.
Connecting the Control Panel to the Switcher
Control
3
LE CT
T SE
IN PU
2
1
Extron
AAP 102 w/
MMX AAP

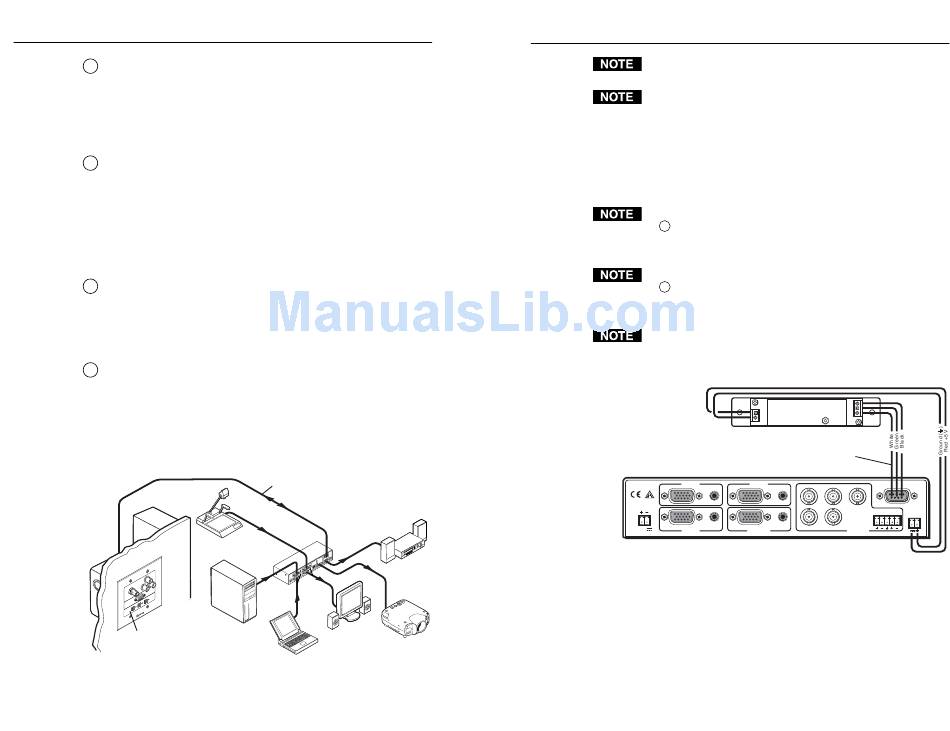

Typical MMX 32 VGA MTP / control panel application
3
Connection
Extron
STP 22 Dual Plenum
Cable 22-162-03
Extron
MMX 32 MTP
Matrix Switcher
Document
Camera
REM OTE
1 232
+5V RS-
2 1 2 3
PUT Rx Tx
OUT
AUD IO R 2
L Audio System
3 AUD IO /AU DIO
INP UT RGB
IO
UT 1 AUD AUD IO
INP
1
OUT PUT
IO
AUD
ER
POW UT 2
12V 0.5A MAX INP
Podium
LCD Monitor
Computer
with Audio
Projector
Laptop
Connection
Only one MMX 32 AAP or MMX 32 MAAP control panel can
be used to control each output.
Extron recommends shielded twisted pair cable, such as
STP 22 Dual Plenum cable, part #22-162-03 (or equivalent),
for the connection between the control panel and the switcher.
Unshielded cable can allow crosstalk and interference between the
MMX and the control panel.
Connecting the control panel to an MMX 32 VGA A
See the drawing below. The wire connected to the 5 VDC pole
( on pages 2 and 3) should not be daisy chained. The power
4
for each AAP or MAAP must come directly from the Tally Power
connector on the MMX switcher.
See the drawing below. The wire connected to the Ground pole
( on pages 2 and 3) should not be shared or jumpered between
5
two AAPs and/or MAAPs. Run a separate ground wire for each
AAP and/or MAAP. Use the drain wire of the cable for ground.
The drawing below shows a control panel wired to select the input
tied to MMX 32 VGA A output 2, using pins 7, 8, and 9 on the
Remote connector. To select the input tied to output 1, use pins 1,
4, and 6 on the Remote connector.
INPUT 1
AUDIO
POWER
AUDIO
12V
INPUT 2
.5A MAX
MMX 32 VGA A
Wiring diagram for a typical MMX 32 VGA A application
MMX 32 AAP
Extron
STP 22 Dual Plenum
Cable 22-162-03
Pins 7, 8, and 9
INPUT 3
REMOTE
AUDIO
R G B
H V
TALLY
L R
OUT
AUDIO
OUTPUT 1 OUTPUT 2 5V
4
