Worksheet example 2: Daily configuration

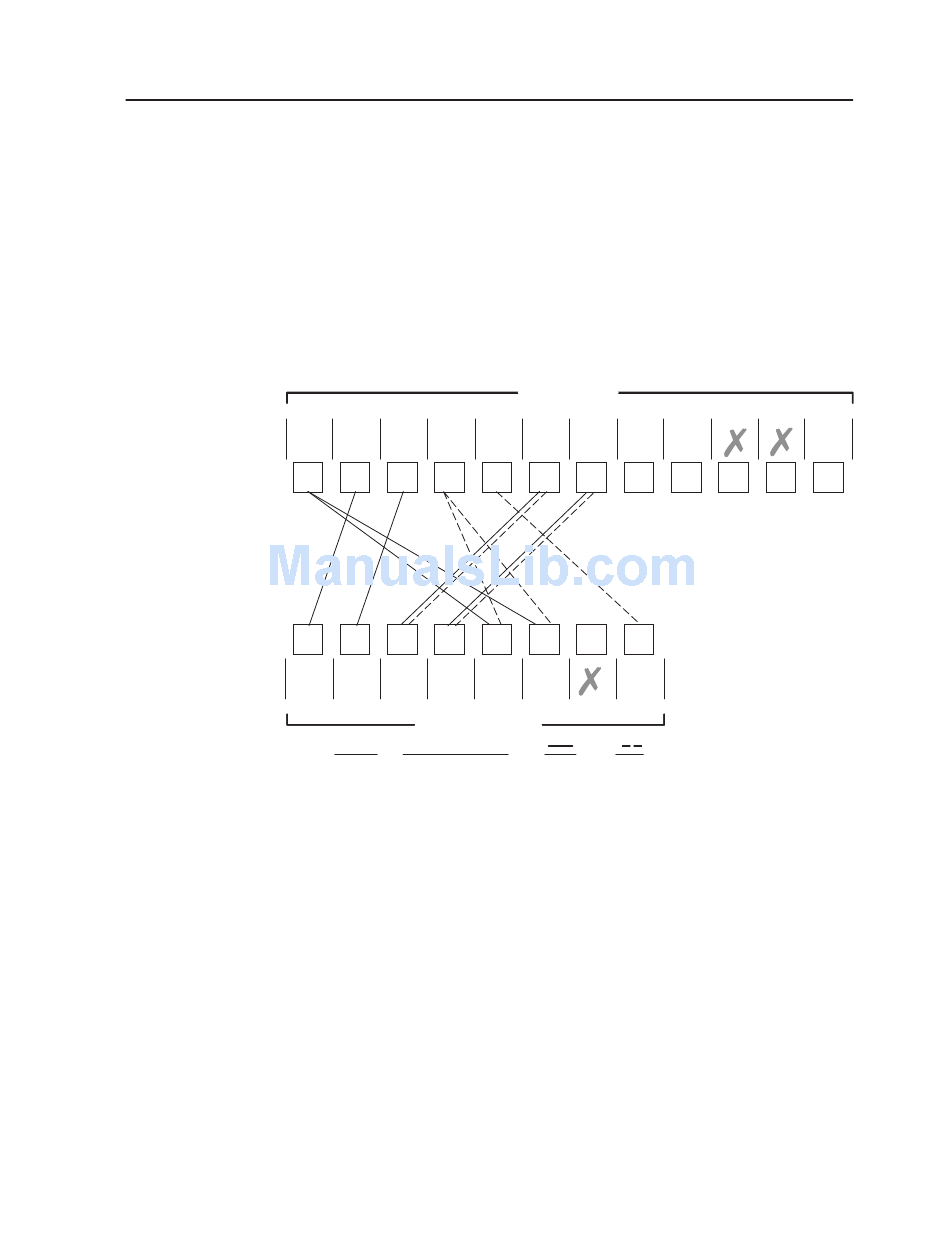

Figure 3-17 continues from worksheet example 1 by showing the video and
audio ties that make up the configuration of preset 3, a solid ink line shows video
ties, and a dashed pencil line shows the audio ties. In this example, the image of
the presenter, from the main podium camera (input 1) is displayed on the main
podium monitor (output 6) and taped on the VCR (output 5) for a tape archive.
The audio from the presenter's microphone (input 4) is also routed to the podium
monitor (output 6) and the VCR (output 5). Videotaped material from two VCRs
(inputs 6 and 7) is displayed on two rear projection displays (outputs 3 and 4).
Classical music from the CD player (input 5) is played on the lunch room stereo
(output 8). Meanwhile security cameras (inputs 2 and 3) are routed to two local
monitors (outputs 1 and 2).
Lobby
Camera Security
main camera security
camera
podium #2
1 2
1 2
Main Class
Lobby
hall room #1
monitor
monitor rear proj
Preset # 3 Title:
Fill in the preset number, use colors or dashes, etc. to make connecting lines.
Indicate if the configuration is for Video, Audio, or both.
Figure 3-17 — Worksheet example 2: Daily configuration
Input sources
Class Class
Podium Audio
room #1 room #2
mic CD
VCR
3 4 5 6
3 4 5 6
Class Archive Main
room #2 VCR podium
rear proj monitor
Output destinations
Daily configuration Video:
Matrix 50 Series Switchers • Operation
Class Class
room #1 room #2
VCR LD LD
7 8 9 10
7 8
Lunch
room
stereo
Audio:
VTG
200
11 12
3-17
