Example 6: Saving a preset

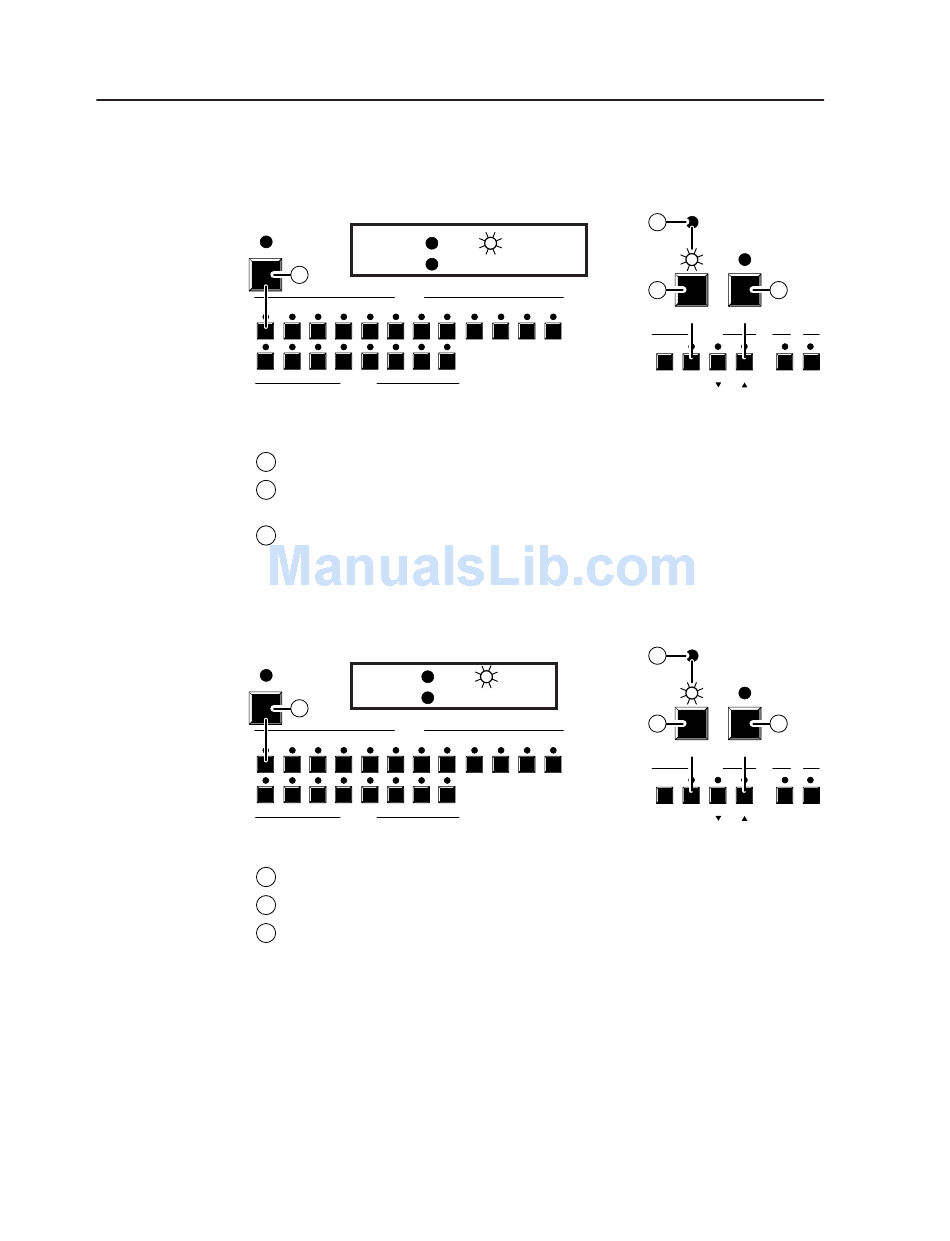

See figure 3-12 and the following steps for an example of saving the current
configuration as a preset on a 12x8 Matrix 50 switcher with audio.
1
F
Press
1
1
Figure 3-12 — Example 6: Saving the current configuration as
preset 1
A
B
C

Example 7: Recalling a preset

See figure 3-13 and the following steps for an example of recalling the current
configuration as a preset on a 12x8 Matrix 50 switcher with audio.
F
Press
1
1
Figure 3-13 — Example 7: Recalling preset 1
A
B
C
3-12 Matrix 50 Series Switchers • Operation
LED key: = off,
= flash once
F
C
INPUTS
2 3 4 5 6 7 8
2 3 4 5 6 7 8
OUTPUTS
Press and release the Esc button. The Esc LED flashes once.
Press and hold the Preset button for approximately 2 seconds until the
Preset LED begins to blink, then release the Preset button.
Press and release the input 1 button. The input 1 LED lights flashes once.
The Preset LED turns off.
LED key: = off,
= flash once
F
C
INPUTS
2 3 4 5 6 7 8
2 3 4 5 6 7 8
OUTPUTS
Press and release the Esc button. The Esc LED flashes once.
Press and release the Preset button. The Preset LED lights.
Press and release the input 1 button. The input 1 LED flashes once. The
Preset LED turns off. The configuration stored in memory location 1 is now
the current configuration and can be viewed in the view-only mode
(Example 4).
