Install the Motherboard

Install the motherboard in a system chassis (case). The board is a Micro ATX
size motherboard. You can install this motherboard in an ATX case. Make sure
your case has an I/O cover plate matching the ports on this motherboard.
Install the motherboard in a case. Follow the case manufacturer's instructions to
use the hardware and internal mounting points on the chassis.

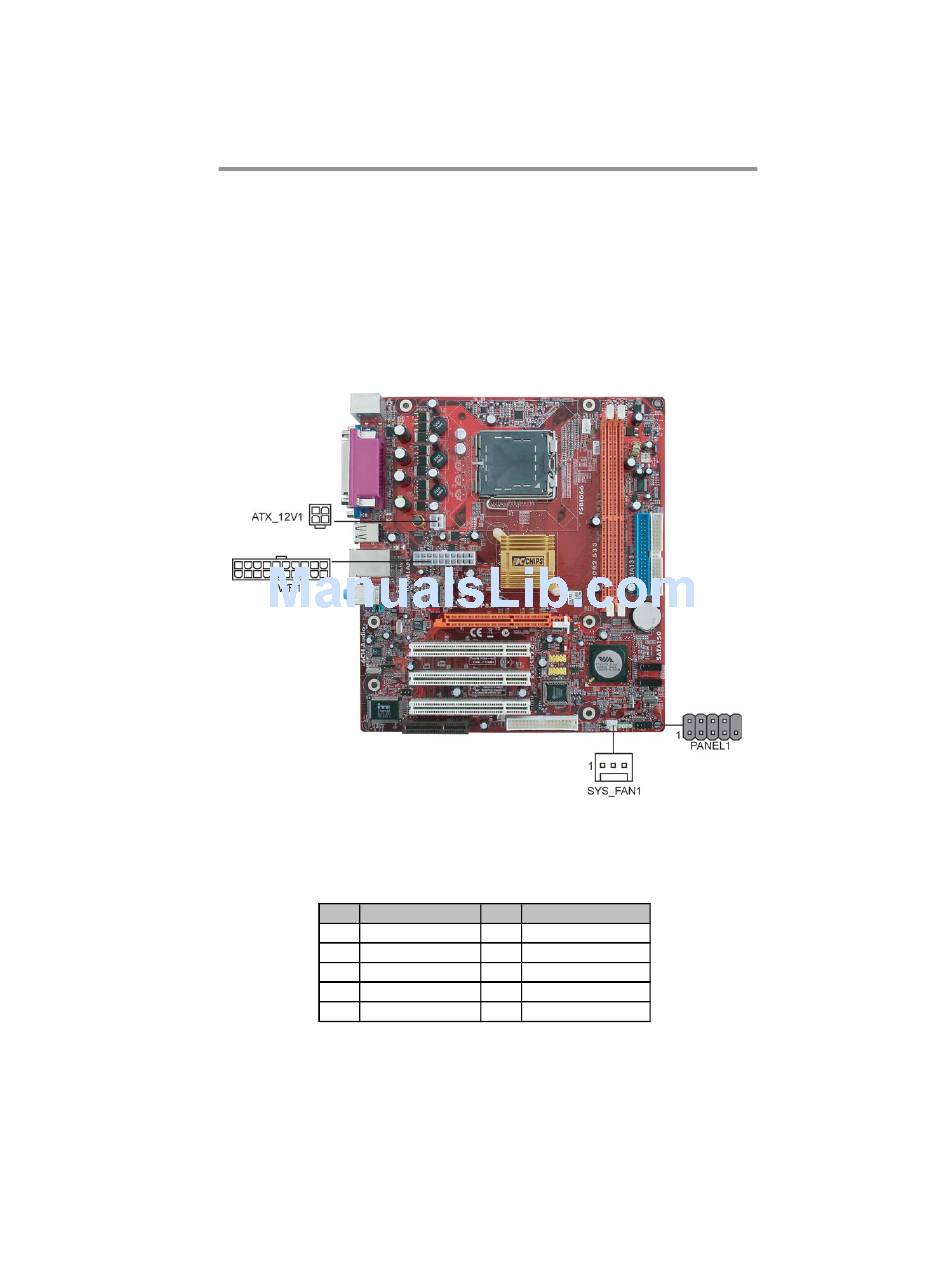

Connect the power connector from the power supply to the PWR1 connector on
the motherboard. The PWR2 is a +12V connector for CPU Vcore power.
If there is a cooling fan installed in the system chassis, connect the cable from the
cooling fan to the SYS_FAN1 fan power connector on the motherboard.
Connect the case switches and indicator LEDs to the PANEL1 header.
Pin
1 HD_LED_P (+)
3 HD_LED_N (-)
5 RESET_SW_N (-)
7 RESET_SW_P (+)
9 RSVD_DNU
Chapter 2: Motherboard Installation
Signal Pin Signal
2 SOS_LED_P (+)
4 SOS_LED_N (-)
6 POWER_SW_P (+)
8 POWER_SW_N (-)
10 KEY
