Motherboard User's Guide

Expansion Slots

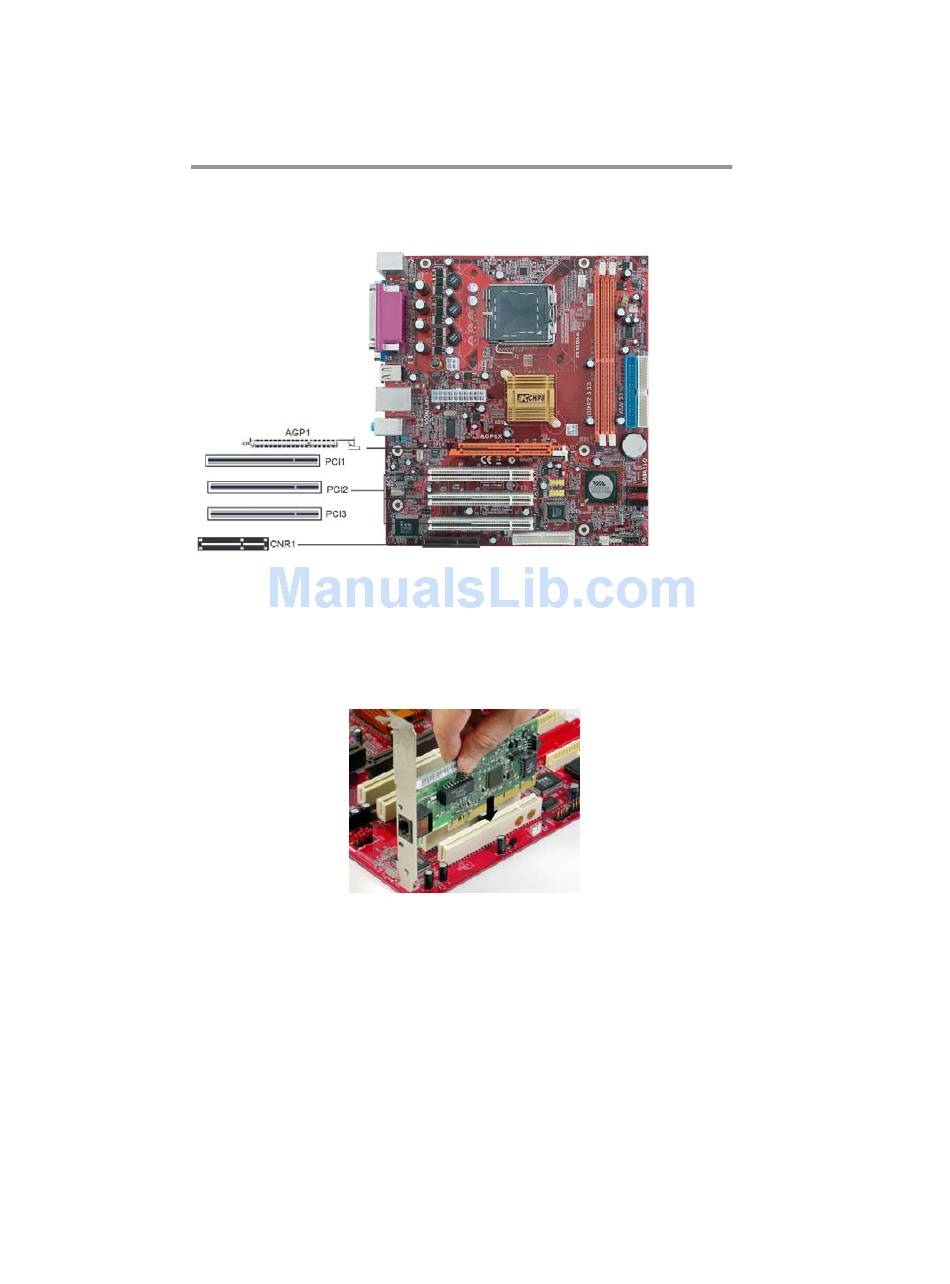

This motherboard has one AGP, CNR and three 32-bit PCI slots.
Follow the steps below to install an AGP/CNR/PCI expansion card.
1 Locate the AGP, CNR or PCI slots on the motherboard.
2 Remove the blanking plate of the slot from the system chassis.
3 Install the edge connector of the expansion card into the slot. Ensure
the edge connector is correctly seated in the slot.
4 Secure the metal bracket of the card to the system chassis with a
screw.
8X AGP Slot
You can install a graphics adapter that supports the 8X AGP specification and
has an 8X AGP edge connector in the AGP slot.
CNR Slot
You can install the CNR (Communications and Networking Riser) cards in this
slot, including LAN, Modem, and Audio functions.
PCI Slots
You can install the 32-bit PCI interface expansion cards in the slots.
