Motherboard User's Guide

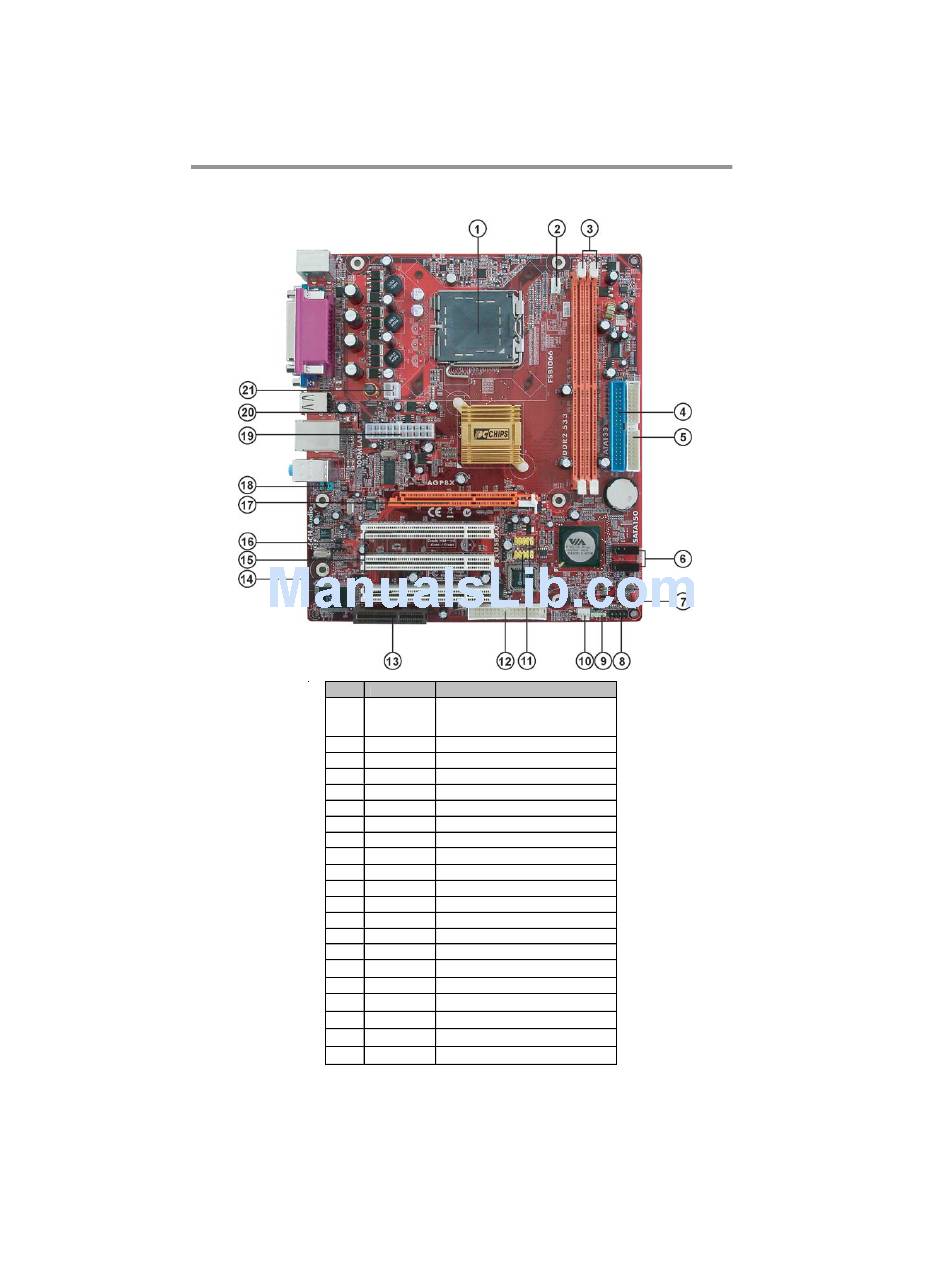

Motherboard Components

ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
LABEL COMPONENTS
LGA775 Socket for Intel Core
CPU Socket
Pentium 4/ Celeron D/Pentium D
processors
CPU_FAN1 CPU Fan connector(4-pin)
DDRII1-2 240-pin DDR2 SDRAM sockets
IDE1 Primary IDE connector
IDE2 Secondary IDE connector
SATA1/2 Serial ATA connectors
CLR_CMOS1 Clear CMOS jumper
PANEL1 Front Panel Switch/LED header
SPK1 Speaker header
SYS_FAN1 System Fan connector
F_USB1/2 Front Panel USB headers
FDD1 Floppy Disk Drive connector
CNR1 CNR slot
IR1 Infrared header
PCI 1-3 32-bit PCI slots
CD_IN1 Analog Audio Input header
AGP1 AGP slot
F_AUDIO1 Front Panel Audio header
PWR1 Standard 20-Pin ATX Power connector
USB_PWR1 USB Power Select jumper
ATX_12V1 Standard 4-Pin ATX Power connector
6
™
2 Duo
